Reverse Parking Brake Valve
This power brake valve system provides high operation safety with minimal operating force. It is ideal for use in construction equipment, material handling vehicles, and forestry and agricultural machines.
Technical Specifications
Product Overview
Reverse Parking Brake Valve
This power brake valve system is designed to provide high operational safety with low operating force. It is specifically engineered for use in construction equipment, material handling vehicles, and forestry or agricultural machinery. The unit features a robust construction to withstand demanding environments, including a protective boot to shield internal components from environmental factors.

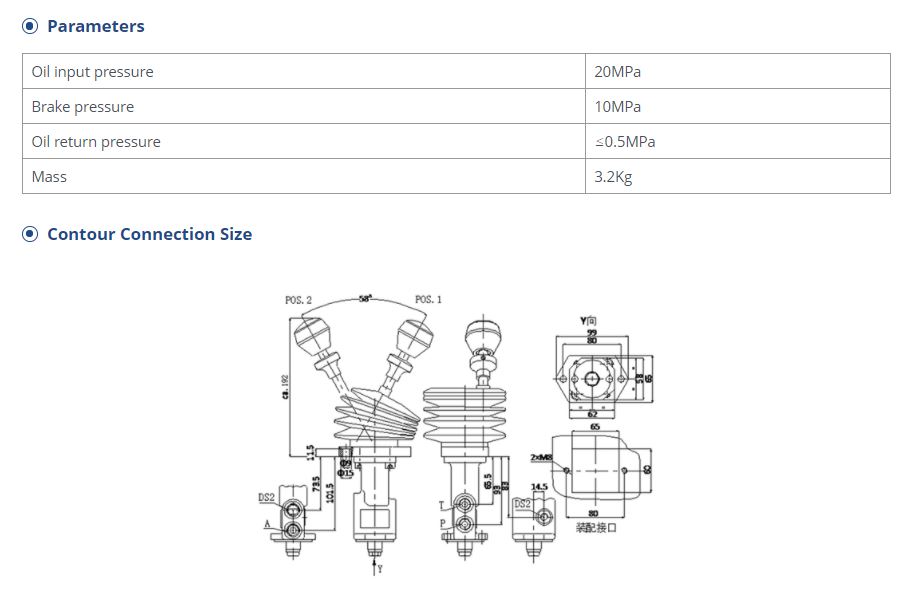

Technical Specifications
- Oil Input Pressure
- 20 MPa
- Brake Pressure
- 10 MPa
- Oil Return Pressure
- 0.5 MPa
- Mass
- 3.2 Kg
Applications
- Compatible Machinery
- Construction EquipmentMaterial HandlingForestry MachinesAgricultural MachinesAerial MachineryMortar Machinery

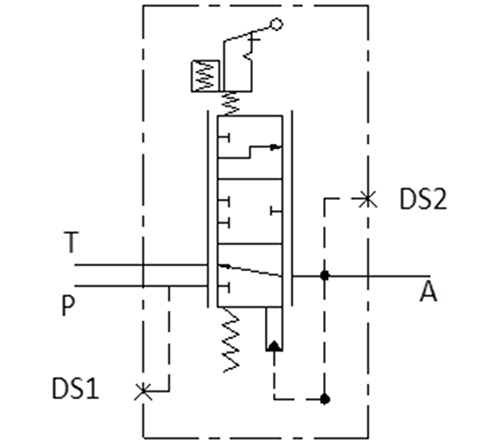

Hydraulic Schematic
Port Configuration
- P (Pressure)
- T (Tank)
- A (Actuator)
- DS1 (Pilot Line)
- DS2 (Pilot Line)
