Dual Accumulator Charging Valve
This dual accumulator charging valve is designed for accumulator charging applications in hydraulic systems. It is applied in forklifts, agricultural machines, loaders, and municipal vehicles.
Technical Specifications
Overview
High-Performance Dual Accumulator Charging Valve
The ACV-L25F-00A is a robust dual circuit charging valve engineered for efficient and safe accumulator charging in demanding hydraulic systems. Designed for versatility, it is suitable for a wide range of heavy-duty machinery including large tonnage forklifts, loaders, and agricultural equipment. This valve ensures reliable performance in industrial environments by maintaining precise pressure control and circuit integrity.

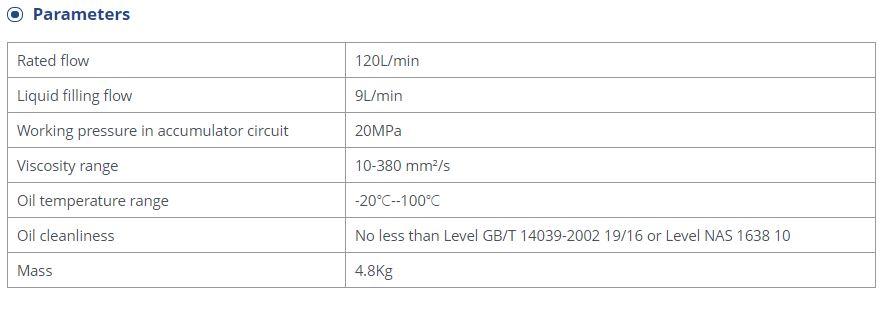

Performance Metrics
Key Performance Metrics
120 L/min
Rated Flow
20 MPa
Working Pressure
9 L/min
Liquid Filling Flow
Operating Conditions
- Viscosity Range
- 10 - 380 mm²/s
- Oil Temperature Range
- -20°C to 100°C
- Oil Cleanliness Standards
- GB/T 14039-2002 19/16NAS 1638 10
Physical Specifications
Mounting Details
- 2-M10 Threaded holes
- Thread depth: 18mm
- Drilling depth: 21mm
- Mass
- 4.8 kg
- Port Identification
- PSWTOA1A2
Applications
Compatible Machinery
- Large tonnage forklifts
- Agricultural machines
- Loaders
- Municipal vehicles
- Forestry machines
- Mine machines

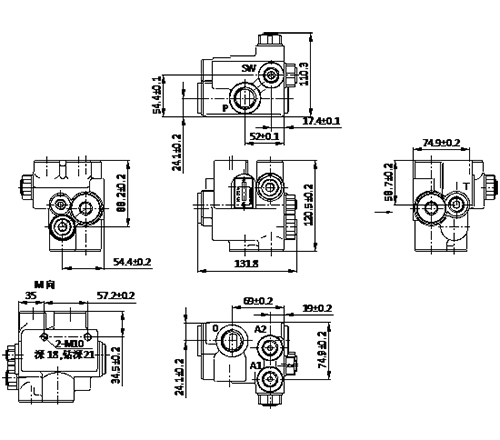

Technical Dimensions
Key Dimensions
| Dimension Type | Value (mm) |
|---|---|
| Total Length Reference | 131.8 |
| Mounting Width | 120.5 ± 0.2 |
| Mounting Height | 110.3 |
| Port Spacing (A1 to A2) | 69 ± 0.2 |
