Hydraulic Flow Amplifier
This hydraulic flow amplifier features a compact design with a simple piping layout, optimizing steering capacity. It delivers flow in proportion to the steering wheel rotation, with quick response to pressure changes and an integrated pressure limiting valve.
Technical Specifications
Overview
High-Performance Hydraulic Flow Amplification
This hydraulic flow amplifier is designed to optimize steering capacity in heavy machinery by providing a flow rate proportional to the steering wheel rotation. It features a compact design with a simplified piping scheme, ensuring a comfortable and responsive operating experience. With an integrated pressure limiting valve and rapid response to pressure changes, it delivers reliable performance across various load conditions.
Key Performance Metrics
Performance Highlights
25 MPa
Nominal Pressure
160 L/min
Nominal Flow Rate
21 kg
Net Weight

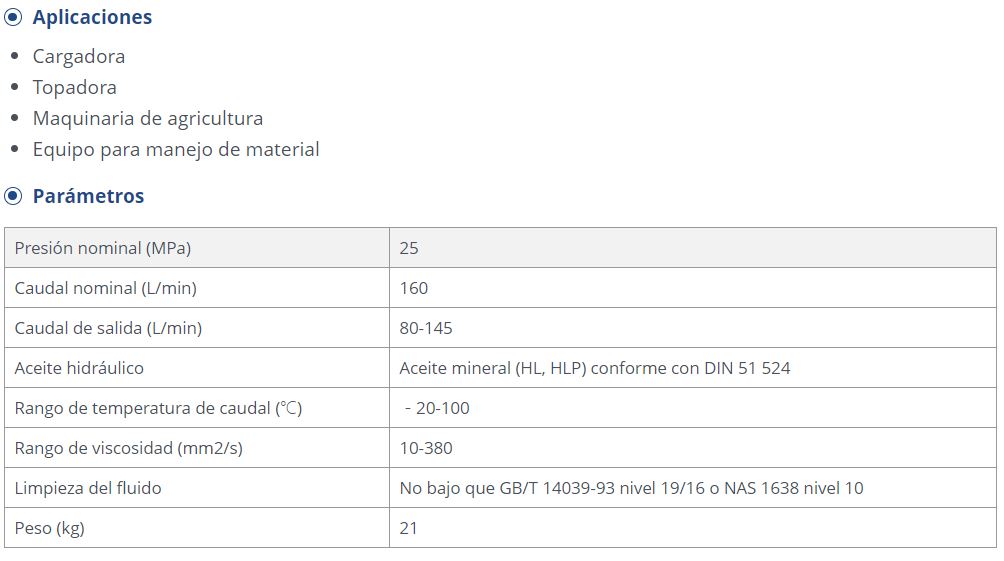

Technical Specifications
- Outlet Flow Rate
- 80 - 145 L/min
- Viscosity Range
- 10 - 380 mm²/s
- Operating Temperature Range
- -20 to 100 °C
Fluid Requirements
Fluid Cleanliness Standard
- GB/T 14039-93 Level 19/16
- NAS 1638 Level 10
- Recommended Fluid
- Mineral oil (HL, HLP) conforming to DIN 51 524
Applications
- Target Applications
- LoadersBulldozersAgricultural MachineryMaterial Handling EquipmentExcavators
Features
System Benefits
- Compact design with simplified piping
- Optimized steering capacity
- Constant flow ratio regardless of load pressure changes
- Proportional flow supply relative to steering rotation
- Integrated pressure limiting valve
- Rapid response to pressure signal changes
