Sectional Directional Hydraulic Control Valve
This sectional directional control valve is available with 1 to 10 sections. The control valve features an integrated inlet section to supply constant fluid flow and is equipped with a brake valve for operational safety.
Technical Specifications
Product Overview
High-Performance Sectional Control
The GFV15 Sectional Directional Control Valve is engineered for precise fluid management in compact hydraulic systems. Featuring a versatile sectional design that supports 1 to 10 sections, this valve simplifies complex piping and installation requirements. It is built to ensure operational safety and efficiency in demanding environments, making it an ideal choice for material handling and agricultural machinery.

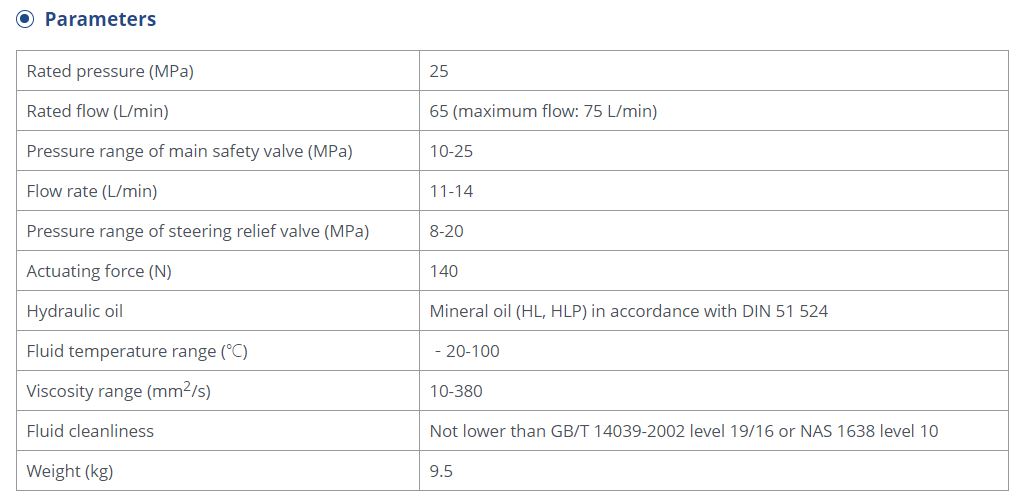

Technical Specifications
Fluid Requirements
- Mineral oil (HL, HLP) in accordance with DIN 51 524
- Fluid temperature range: -20 to 100 °C
- Viscosity range: 10-380 mm²/s
- Cleanliness: GB/T 14039-2002 level 19/16 or NAS 1638 level 10
- Rated Pressure
- 25 MPa
- Rated Flow
- 65 L/min
- Maximum Flow
- 75 L/min
- Actuating Force
- 140 N
- Weight
- 9.5 kg
Design & Features
Integrated Features
Brake ValveOverload ValveCharge ValveIntegrated Inlet Section
- Configuration Options
- 1-10 SectionsParallel CircuitSeries-Parallel CircuitDual Circuit

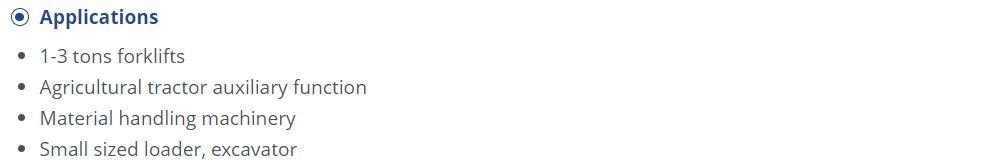

Applications
Suitable Applications
- 1-3 tons forklifts
- Agricultural tractor auxiliary functions
- Material handling machinery
- Small-sized loaders and excavators
