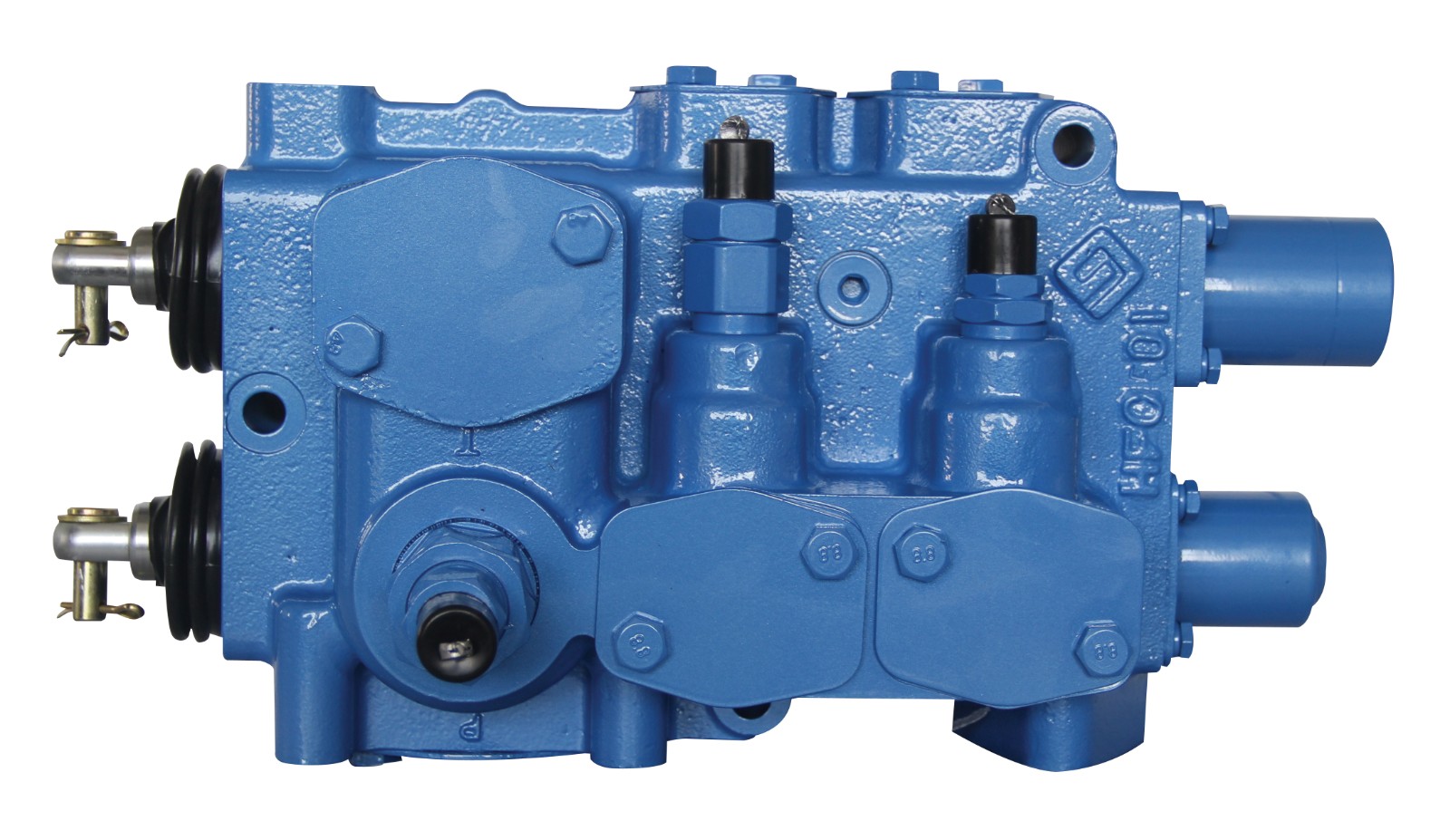

Monoblock Directional Control Valve
This monoblock directional control valve is mechanically operated and features low actuation force. The hydraulic valve is equipped with a safety valve, overload valve, and charging valve for easy maintenance in a wide range of applications.
Technical Specifications
Product Overview
High-Performance Hydraulic Control
This monoblock directional control valve is engineered for precise fluid flow management in heavy-duty machinery. Available in 2 or 3-section configurations, it utilizes a mechanically operated spool system with low actuation force for smooth, reliable operation. Designed for durability, the valve includes safety, overload, and charging valves to ensure efficiency in demanding industrial applications.
Performance Metrics
Performance Highlights
25 MPa
Rated Pressure
350 L/min
Rated Flow
415 L/min
Max Flow Capacity

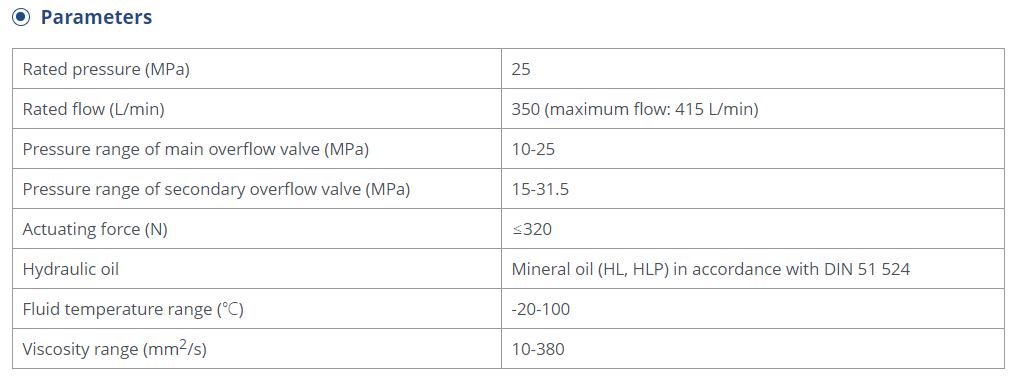

Technical Specifications
Pressure & Force Settings
| Parameter | Range/Value |
|---|---|
| Main Overflow Valve Pressure | 10-25 MPa |
| Secondary Overflow Valve Pressure | 15-31.5 MPa |
| Actuation Force | ≤320 N |
Fluid & Environment
- Fluid Compatibility: Mineral oil (HL, HLP) per DIN 51 524
- Operating Temperature: -20 to 100 °C
- Viscosity Range: 10-380 mm²/s
Configuration & Design
- Core Features
- Monoblock ConstructionSerial-Parallel ConnectionParallel Connection3-4 Spool PositionsStainless Steel Ball Spring Plunger
Applications
Recommended Use
- Wheel loader
- Bulldozer
- Agricultural machinery
- Material handling machinery
