Monoblock Directional Control Valve
This monoblock directional control valve controls fluid flow. It is equipped with safety, overload, charge, and check valves, and is suitable for loaders, bulldozers, and agricultural machinery.
Technical Specifications
Product Overview
High-Performance Monoblock Directional Control Valve
This monoblock directional control valve is engineered for precise fluid flow management in demanding hydraulic systems. Available in 2 or 3-section configurations, it features a robust design equipped with integrated safety, overload, charge, and check valves to ensure reliable operation. Its versatile spool functions and multiple actuation methods make it an ideal solution for construction, agricultural, and material handling machinery.
Performance Metrics
Rated Flow
160 L/min
Rated Flow
200 L/min
Max Flow

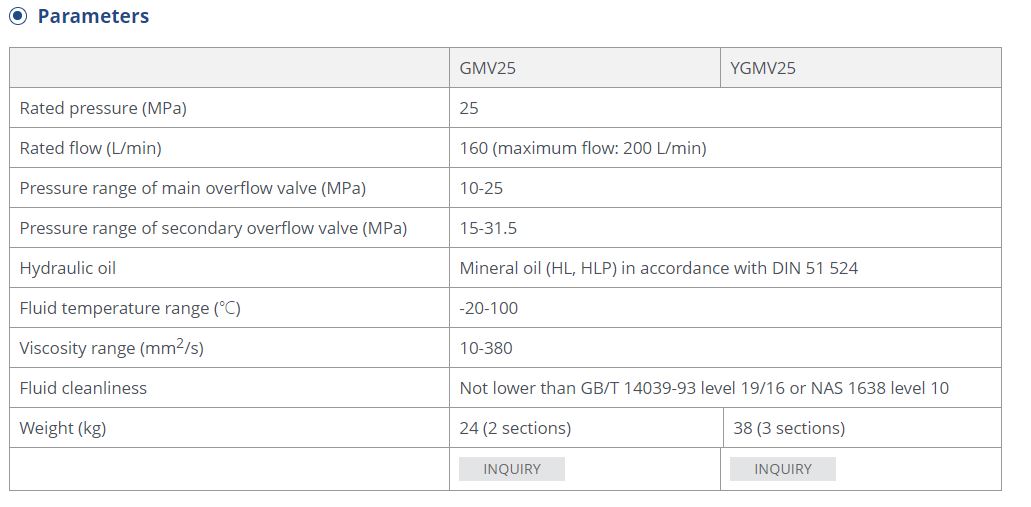

Pressure Specifications
| Parameter | Range (MPa) |
|---|---|
| Rated Pressure | 25 |
| Main Overflow Valve | 10-25 |
| Secondary Overflow Valve | 15-31.5 |
Technical Specifications
Fluid & Operating Environment
- Hydraulic Oil: Mineral oil (HL, HLP) per DIN 51 524
- Fluid Temperature: -20 to 100 °C
- Viscosity: 10-380 mm²/s
- Cleanliness: GB/T 14039-93 level 19/16 or NAS 1638 level 10
Weight by Configuration
| Model | Sections | Weight |
|---|---|---|
| GMV25 | 2 | 24 kg |
| YGMV25 | 3 | 38 kg |
- Control Features
- Hydraulically operatedMechanically operated3-position spool4-position spoolSerial-parallel connectionParallel connection
Applications
Suitable Applications
LoaderBulldozerAgricultural machineryMaterial handling machineryForestry machinery
