Monoblock Directional Control Valve
This directional control valve features a maximum operating pressure of 25 bar, allowing for high flow rates. The monoblock control valve is equipped with an overload valve and charging valve and is suitable for a wide range of applications.
Technical Specifications
General Overview
High-Performance Hydraulic Control
This monoblock directional control valve is engineered for precise hydraulic control in demanding environments. Featuring a robust construction and smoothly polished spool surfaces, it ensures reliable operation and responsive flow control. Designed for versatility, this unit is suitable for a wide range of mobile and industrial hydraulic applications.

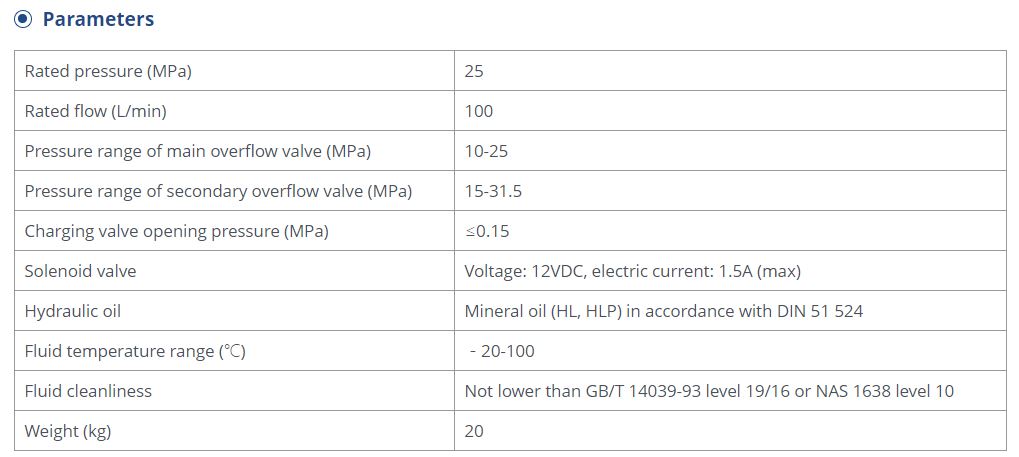

Technical Parameters
Solenoid Specifications
12 VDC
Voltage
1.5 A
Max Current
Fluid Requirements
- Mineral oil (HL, HLP) in accordance with DIN 51 524
- Fluid temperature range: -20 to 100°C
- Cleanliness: GB/T 14039-93 level 19/16 or NAS 1638 level 10
- Rated Pressure
- 25 MPa
- Rated Flow
- 100 L/min
- Main Overflow Valve Pressure Range
- 10-25 MPa
- Secondary Overflow Valve Pressure Range
- 15-31.5 MPa
- Charging Valve Opening Pressure
- ≤0.15 MPa
- Weight
- 20 kg
Design Features
- Key Features
- Monoblock ConstructionPolished Spool SurfacesOverload Valve EquippedCharging Valve EquippedHydraulic Pilot-OperatedFour PositionsSpring Return
- Loop Type
- Serial-parallel connection

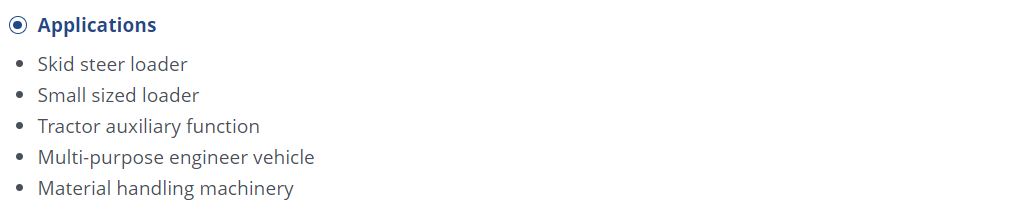

Applications
Suitable Applications
- Skid steer loaders
- Small sized loaders
- Tractor auxiliary functions
- Multi-purpose engineer vehicles
- Material handling machinery
