Hydraulic Valve Remote Control Joystick
This remote control joystick is designed for precise operation of hydraulic valves. It allows for reliable proportional flow control with adjustable pressure curves.

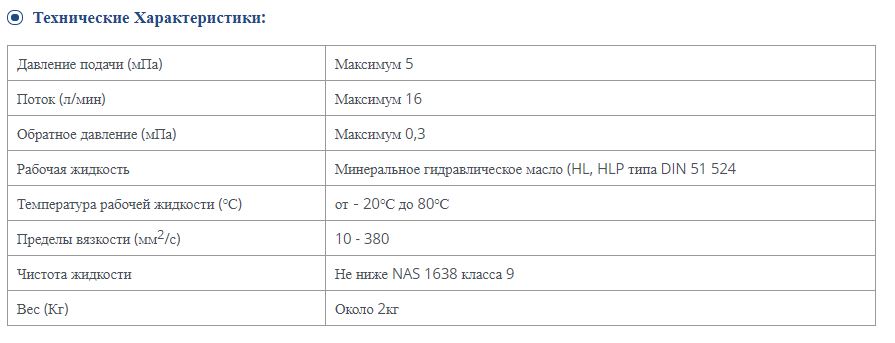

Technical Specifications
Product Overview
Professional Hydraulic Control
This compact hydraulic remote control joystick provides precise and reliable proportional flow control for heavy industrial machinery. Designed for durability and ease of use, it features low operating force and rapid response times to pressure changes. The unit is dust-protected and highly customizable to match specific hydraulic valve response curves.
- Key Features
- Compact DesignProportional ControlLow HysteresisFast ResponseDust ProtectedCustomizable Response Curves
Technical Performance
Performance Metrics
5 MPa
Max Supply Pressure
16 l/min
Max Flow Rate
0.3 MPa
Max Back Pressure
Operating Parameters
| Parameter | Value/Specification |
|---|---|
| Working Fluid | Mineral hydraulic oil (HL, HLP type DIN 51 524) |
| Temperature Range | -20°C to 80°C |
| Viscosity Limits | 10-380 mm²/s |
| Fluid Cleanliness | Not lower than NAS 1638 class 9 |
| Weight | Approx. 2 kg |
Application
Supported Machinery
- Loaders
- Bulldozers
- Lifting equipment
- Agricultural machinery
- Material handling systems
- Compactors
- Forestry equipment
- Container cranes
