Hydraulic Steering Valve Orbitrol
This hydraulic steering valve, also known as an orbitrol, supplies oil to the steering and hydraulic system with low pressure drop. It diverts pump flow to the tank in response to system pressure.
Technical Specifications
Product Overview
High-Performance Orbitrol Steering Valve
This hydraulic steering valve, commonly referred to as an orbitrol, is engineered to provide precise directional control in heavy-duty machinery. By efficiently managing oil supply to steering and hydraulic systems at low pressure drops, it optimizes energy consumption by redirecting excess flow. It is a robust, reliable solution designed for high-performance applications in demanding environments.
Technical Specifications
Key Performance Metrics
20 MPa
Nominal Pressure
160 L/min
Nominal Flow Rate
12 Kg
Weight

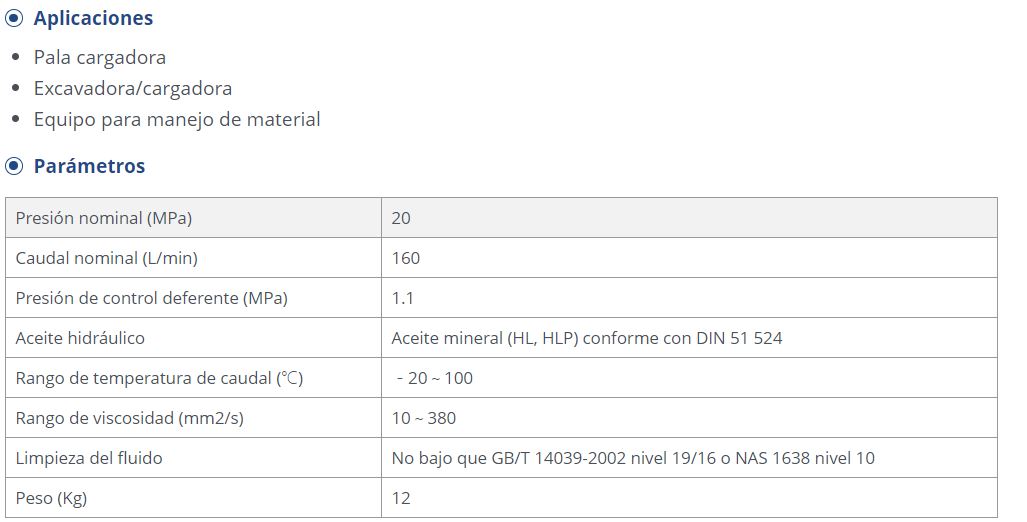

Operating Parameters
| Parameter | Value |
|---|---|
| Differential Control Pressure | 1.1 MPa |
| Flow Temperature Range | -20 ~ 100 °C |
| Viscosity Range | 10 ~ 380 mm²/s |
| Fluid Cleanliness Standard | GB/T 14039-2002 19/16 or NAS 1638 level 10 |
- Hydraulic Medium
- Mineral oil (HL, HLP) according to DIN 51 524
Compatibility
Suitable Applications
- Wheel loader
- Excavator/loader
- Material handling equipment
