Hydraulic Regulating Valve
This regulating valve features a compact construction for simple piping layouts. The hydraulic valve with a spring return actuator has a low back pressure and good sealing performance.
Technical Specifications
Product Overview
High-Performance Hydraulic Regulation
The SAJ90 is a high-performance regulating valve engineered for precise fluid flow control in demanding hydraulic systems. Featuring a compact, robust construction, it offers excellent sealing performance and a simplified piping layout. Designed for reliability in harsh environments, it is an ideal solution for heavy-duty applications such as excavators and mining machinery.
Core Features
- Compact construction
- Simple piping layout
- Spring return actuator
- Low back pressure
- High sealing performance
Key Metrics
Performance Specifications
8.7 MPa
Brake Pressure
150 ml
Oil Discharge Volume
33 kg
Weight

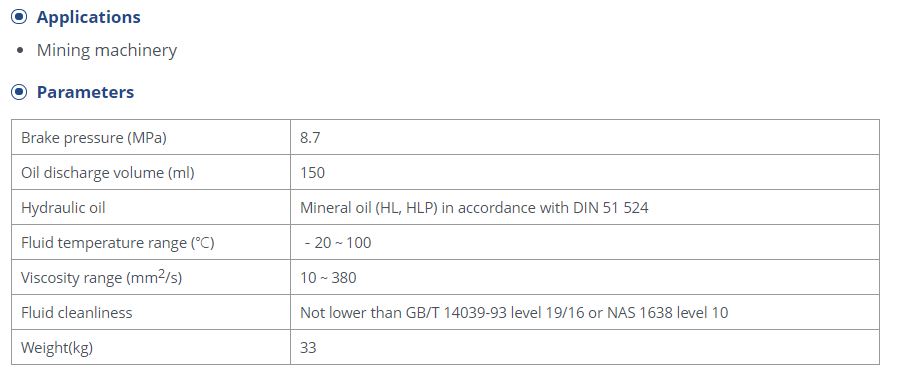

Technical Details
Operating Conditions
| Parameter | Value |
|---|---|
| Fluid Type | Mineral oil (HL, HLP) acc. DIN 51 524 |
| Temperature Range | -20 to 100 °C |
| Viscosity Range | 10 to 380 mm²/s |
| Fluid Cleanliness | GB/T 14039-93 19/16 or NAS 1638 10 |
Applications
- Industry Applications
- ExcavatorsMining Machinery
