Hydraulic Quick Drop Valve
This hydraulic quick drop valve allows high flow rates while reducing pressure loss. The valve offers precise fluid flow control and is highly sensitive to pressure changes.
Technical Specifications
Product Overview
High-Performance Hydraulic Quick Drop Valve
The KJV20 Quick Drop Valve is engineered for the rapid lowering of loads in demanding construction and mining environments. This valve module offers precise fluid flow control while facilitating high flow rates to minimize pressure loss. Designed for versatility and durability, its compact size allows for efficient integration into complex hydraulic systems.
Performance Metrics
Key Performance Indicators
20 MPa
Rated Pressure
200 L/min
Rated Flow
18 kg
Weight

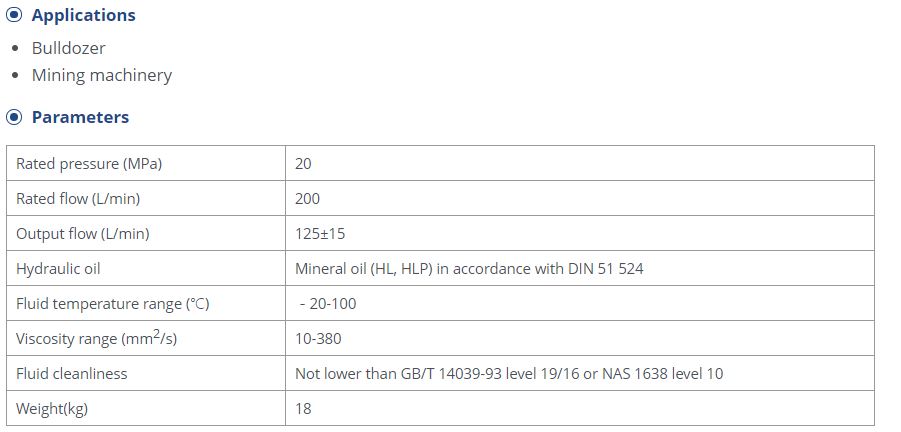

Technical Specifications
Operating Parameters
| Parameter | Value/Details |
|---|---|
| Output Flow | 125±15 L/min |
| Hydraulic Oil | Mineral oil (HL, HLP) per DIN 51 524 |
| Fluid Temperature Range | -20 to 100 °C |
| Viscosity Range | 10-380 mm²/s |
| Cleanliness Requirement | GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
Applications
- Recommended Use Cases
- Construction MachineryBulldozersMining MachineryHeavy Equipment
Features
Key Features
- High flow rates with reduced pressure loss
- Precise fluid flow control
- Highly sensitive to pressure changes
- Robust construction for durability
- Multiple mounting points for versatile installation
