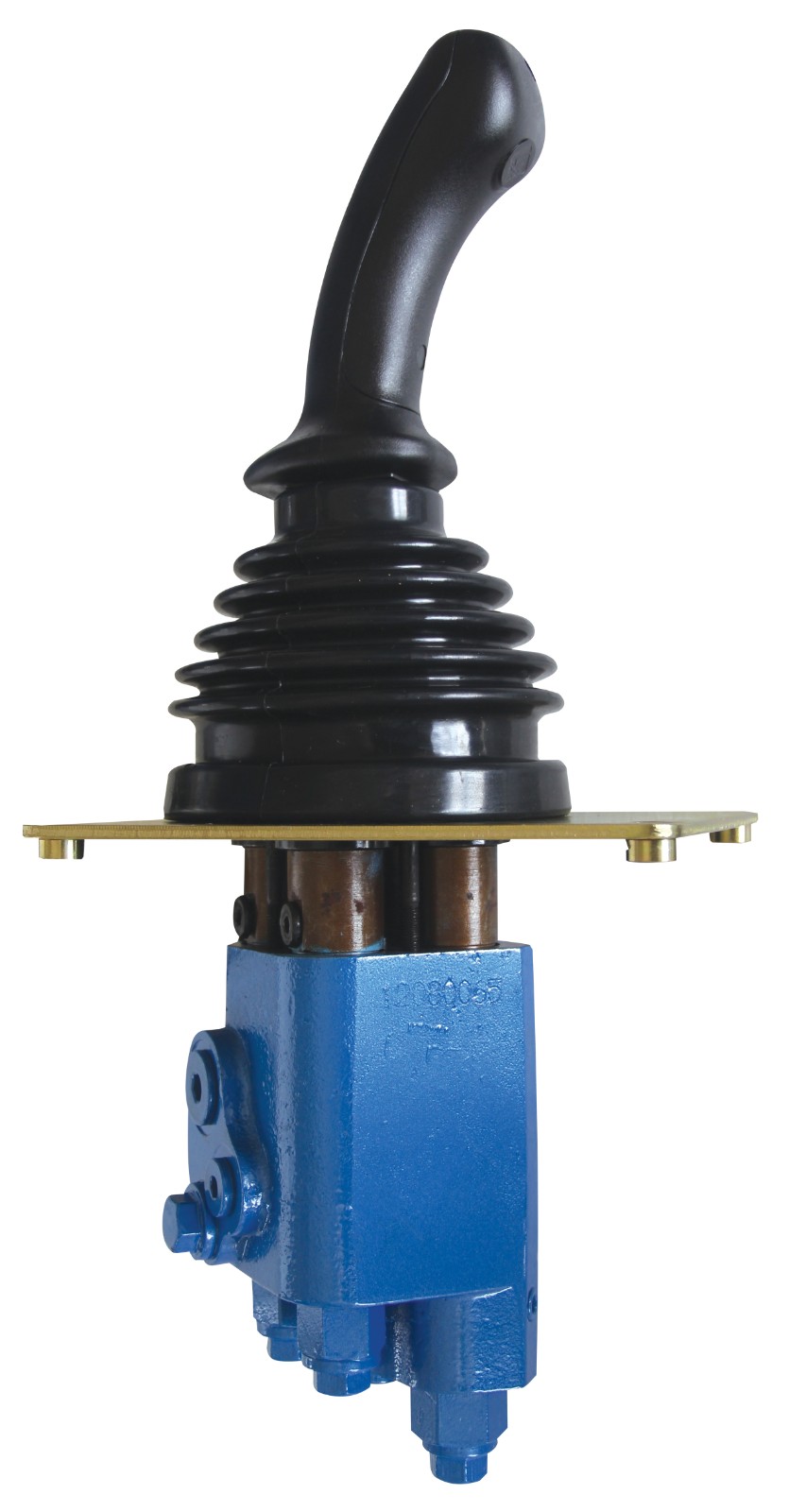

Hydraulic Pilot Control Valve for Industrial Machinery
This hydraulic pilot control valve offers precise control and fast response. It is designed for simple piping installation and low pressure drop in hydraulic systems.
Technical Specifications
Product Overview
High-Precision Hydraulic Pilot Control
This Hydraulic Pilot Control Valve is engineered for demanding industrial and mobile machinery applications, offering accurate control and fast response times. It features an ergonomic handle with customizable switches and a compact design that simplifies piping installation while minimizing pressure drop. Designed for durability in harsh environments, it ensures optimal system performance for heavy equipment like loaders and excavators.
Key Performance Metrics
Performance Highlights
5 MPa
Max Pilot Pressure
16 L/min
Max Control Flow
24 V
Working Voltage
Technical Specifications

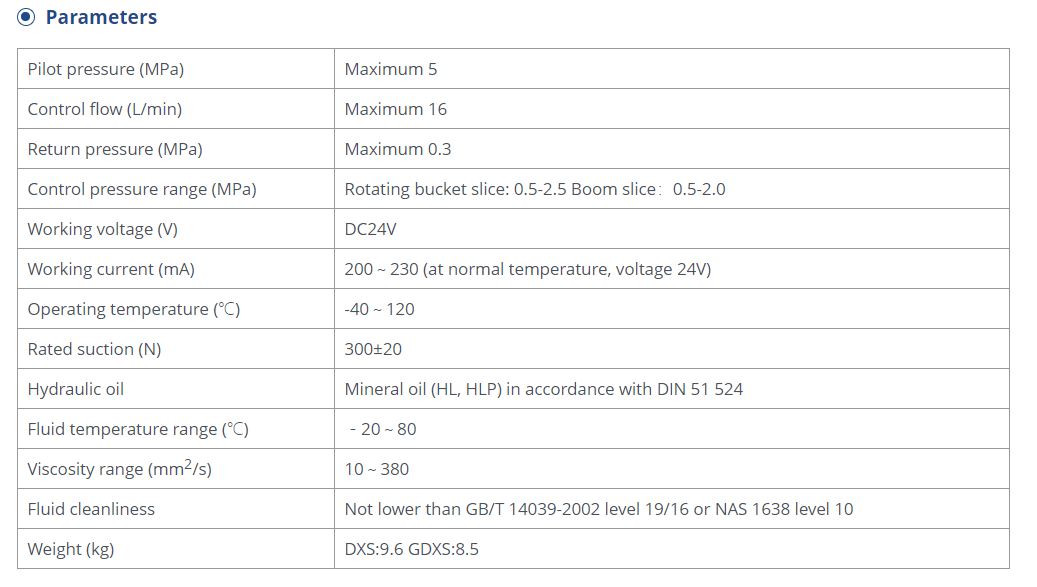

Control Pressure Range
| Component | Pressure Range (MPa) |
|---|---|
| Rotating bucket slice | 0.5 - 2.5 |
| Boom slice | 0.5 - 2.0 |
- Maximum Return Pressure
- 0.3 MPa
- Working Current
- 200~230 mA (at 24V)
- Rated Suction
- 300 N
Fluid & Environmental Requirements
Fluid Requirements
| Parameter | Requirement |
|---|---|
| Hydraulic Oil Type | Mineral oil (HL, HLP) DIN 51 524 |
| Fluid Temp Range | -20°C to 80°C |
| Viscosity Range | 10~380 mm²/s |
| Fluid Cleanliness | GB/T 14039-2002 19/16 or NAS 1638 level 10 |
- Operating Temperature Range
- -40°C to 120°C
Physical Properties
Unit Weight
- DXS Model: 9.6 kg
- GDXS Model: 8.5 kg
Applications
- Target Machinery
- LoaderBulldozerAgricultural MachineryMaterial HandlingCompactorForestry MachineryContainer CraneDrilling RigExcavator
Features
Operational Features
- Accurate control and fast response
- Ergonomic handle with optional buttons/switches
- Low operating force for comfort
- Optional solenoid connection for auto-reset and positioning
- Integrated logic valve (e.g., floating control)
- Low pressure drop design
