Hydraulic Pilot Control Valve
This hydraulic pilot control valve is designed for precise control and quick response in hydraulic systems. Its ergonomic handle is available with various switches or push buttons for comfortable operation.
Technical Specifications
Overview
Precision Hydraulic Control
The 4THF5 Hydraulic Pilot Control Valve is a precision-engineered component designed for high-performance hydraulic systems in heavy machinery. It features a compact design for simple installation and an ergonomic handle that ensures operator comfort even during extended use. This valve provides accurate control and quick response times, making it ideal for demanding agricultural and construction applications.
Key Performance Metrics
Performance Highlights
5 MPa
Max Pilot Pressure
16 L/min
Max Control Flow
1.95 MPa
Upper Control Pressure

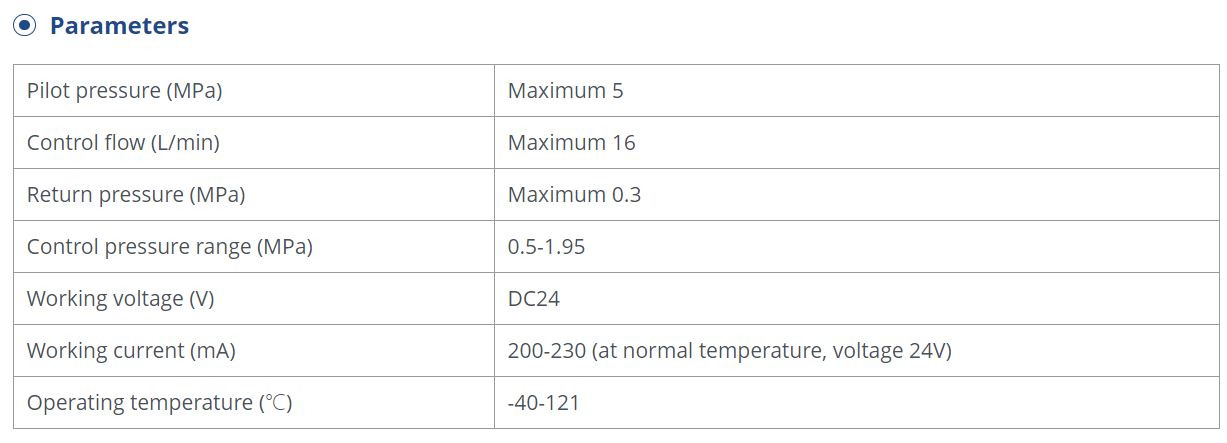

Technical Specifications
Operating Parameters
| Parameter | Value |
|---|---|
| Pilot Pressure | Maximum 5 MPa |
| Control Flow | Maximum 16 L/min |
| Return Pressure | Maximum 0.3 MPa |
| Control Pressure Range | 0.5 - 1.95 MPa |
| Working Voltage | DC 24V |
| Working Current | 200-230 mA (at 24V) |
Environmental Limits
- Operating Temperature
- -40°C to 121°C
Design Features
Key Features
- Small and compact design for easy installation
- Accurate control with quick response times
- Ergonomic handle with optional switches or push buttons
- Positioner compatibility with solenoid valves for auto reset
- Variable outlet pressure for better cylinder speed control
- Resistant lever arm to prevent operational failure
- Parallel ports for simplified piping installation
Applications
- Industrial Applications
- LoaderBulldozerAgricultural machineryMaterial handlingCompactorForestry machineryContainer craneDrilling rig
