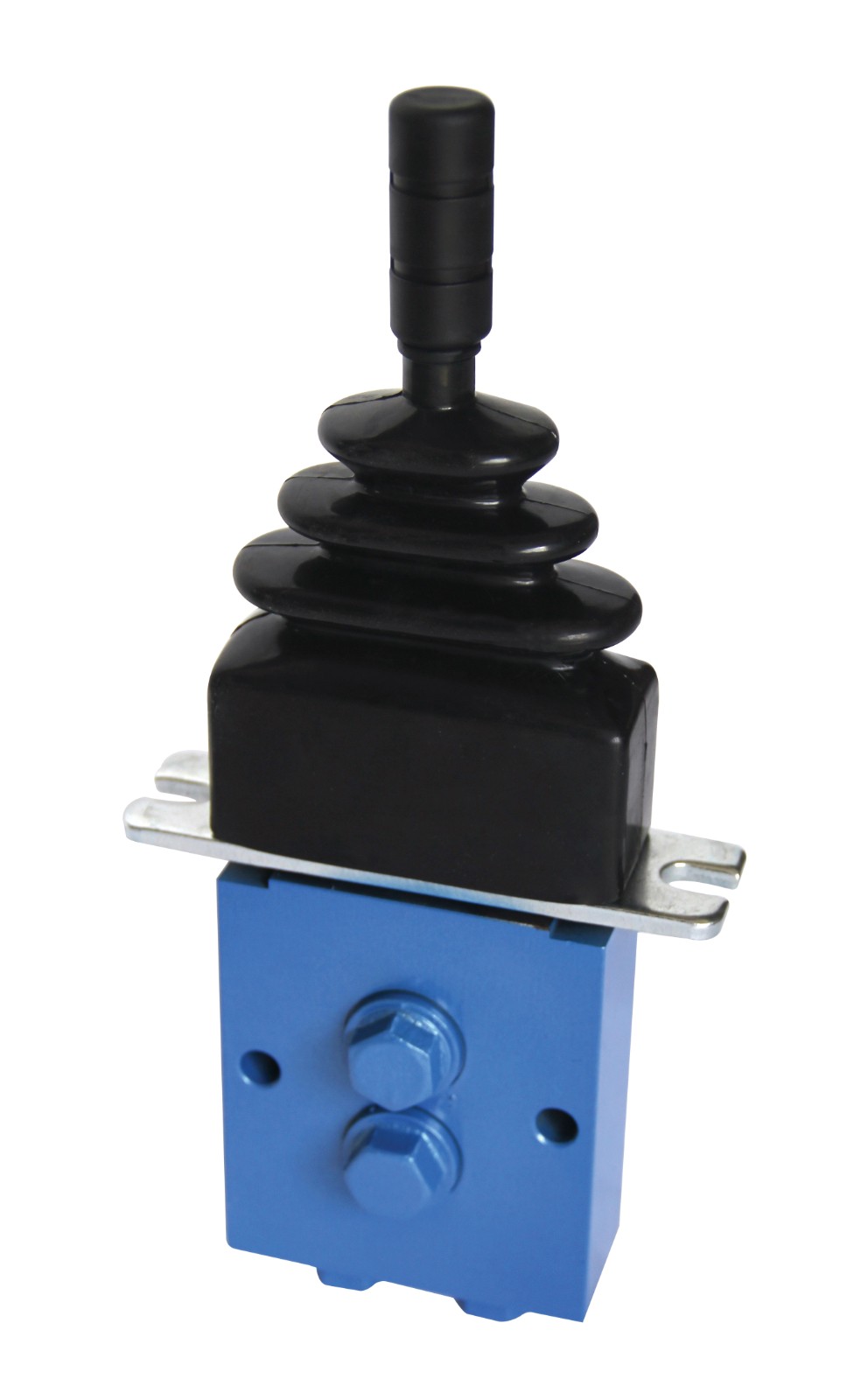

Hydraulic Pilot Control Valve
This pilot control valve is designed to be compact and flexible, simplifying installation. It provides reliable proportional flow control and quick response to pressure changes.
Technical Specifications
Overview
High-Performance Hydraulic Control
The Hydraulic Pilot Control Valve is a compact and flexible solution designed for precise proportional flow control in heavy-duty machinery. It features a low actuating force for superior operator comfort and a dust-proof design to ensure high durability in harsh environments. With its quick response to pressure changes and customizable characteristic curves, it provides reliable performance across a wide range of industrial applications.
Technical Performance
Performance Metrics
5 MPa
Max Pilot Pressure
16 L/min
Max Control Flow
0.3 MPa
Max Return Pressure

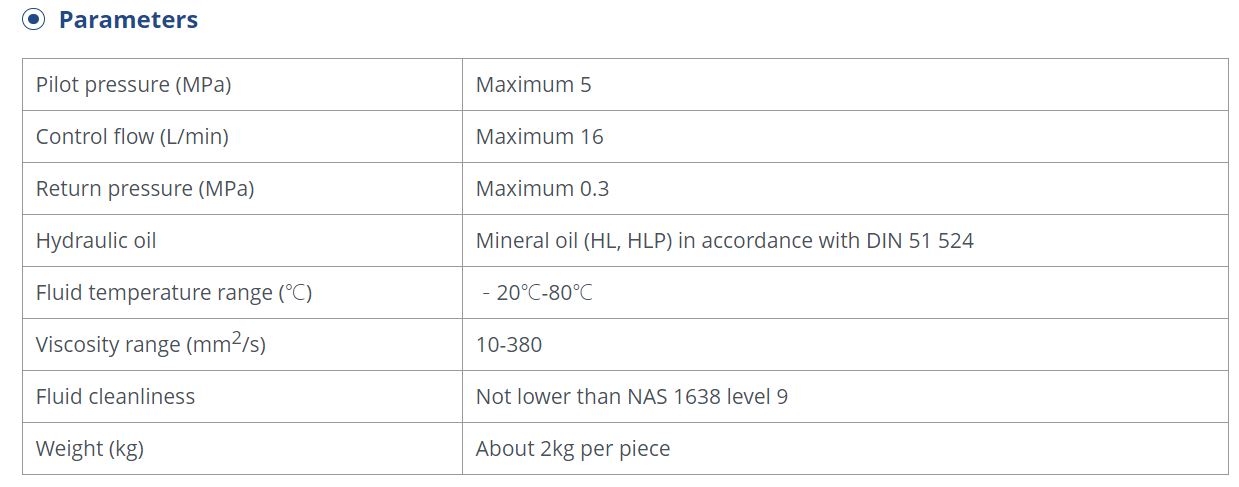

Operating Parameters
| Parameter | Value |
|---|---|
| Fluid Temperature Range | -20°C to 80°C |
| Viscosity Range | 10-380 mm²/s |
| Fluid Cleanliness | NAS 1638 level 9 or better |
| Weight | Approx. 2kg per piece |
- Protection & Reliability
- Dust ProofHigh DurabilityQuick ResponseLow Hysteresis
Compatibility
- Compatible Hydraulic Oil
- Mineral oil (HL, HLP) in accordance with DIN 51 524
Applications
Target Machinery
- Loaders and Bulldozers
- Hoisting and Material Handling Machinery
- Agricultural and Forestry Machinery
- Compactors
- Container Cranes
Features
Product Features
- Small and compact design for simple installation
- Sectional construction for high flexibility
- Low actuating force for operator comfort
- Reliable proportional flow control
- Low hysteresis and quick pressure response
- Dust-proof and highly durable construction
- Customizable pressure characteristic curves
