Hydraulic Pilot Control Valve
This pilot control valve offers quick response and accurate fluid flow management. Its compact design allows for simple installation and minimal pressure drop in hydraulic systems.
Technical Specifications
Product Overview
High-Precision Hydraulic Control
The XDF3 Hydraulic Pilot Control Valve is engineered for precise fluid flow regulation in heavy-duty machinery. Featuring an ergonomic design with optional switch integration, it offers superior operator comfort and responsive control. Its robust construction ensures reliable performance in demanding environments like construction and forestry.

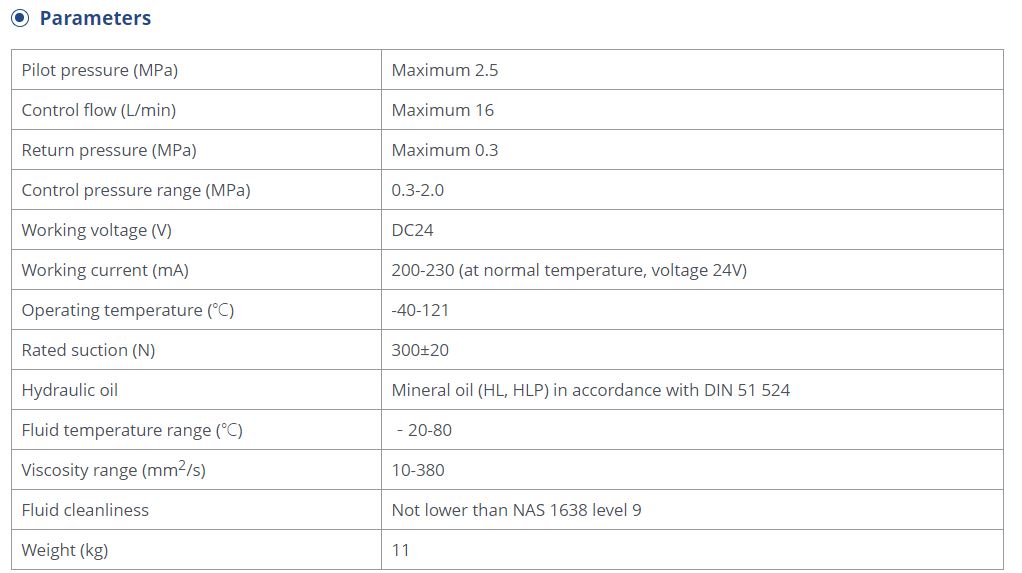

Technical Specifications
Performance Metrics
2.5 MPa
Max Pilot Pressure
16 L/min
Max Control Flow
11 kg
Total Weight
Operating Parameters
| Parameter | Value/Range |
|---|---|
| Control Pressure Range | 0.3 - 2.0 MPa |
| Return Pressure | Max 0.3 MPa |
| Working Voltage | DC24 V |
| Operating Temperature | -40 - 121 °C |
| Rated Suction | 300 ± 20 N |
Fluid Requirements
Hydraulic Fluid Specs
- Mineral oil (HL, HLP) conforming to DIN 51 524
- Fluid temperature range: -20 to 80 °C
- Viscosity range: 10-380 mm²/s
- Cleanliness level: Not lower than NAS 1638 level 9
Applications
- Compatible Machinery
- LoaderBulldozerAgricultural machineryMaterial handlingCompactorForestry machineryContainer craneDrilling rig
