Hydraulic Flow Amplifier
This hydraulic flow amplifier features a compact design with a simple piping layout, optimizing directional capabilities. It provides proportional flow control and incorporates a low-pressure, high-flow discharge function for energy savings.
Technical Specifications
Overview
High-Efficiency Hydraulic Flow Amplification
This hydraulic flow amplifier is designed to optimize steering capacity while maintaining a compact and simple piping layout. It offers proportional flow direction control and maintains a consistent flow ratio regardless of changes in load pressure. Engineered for energy efficiency, it features a low-pressure, high-flow discharge function suitable for demanding industrial applications.
Performance Metrics
Key Performance Metrics
25 MPa
Nominal Pressure
160 L/min
Nominal Flow Rate
21 kg
Weight

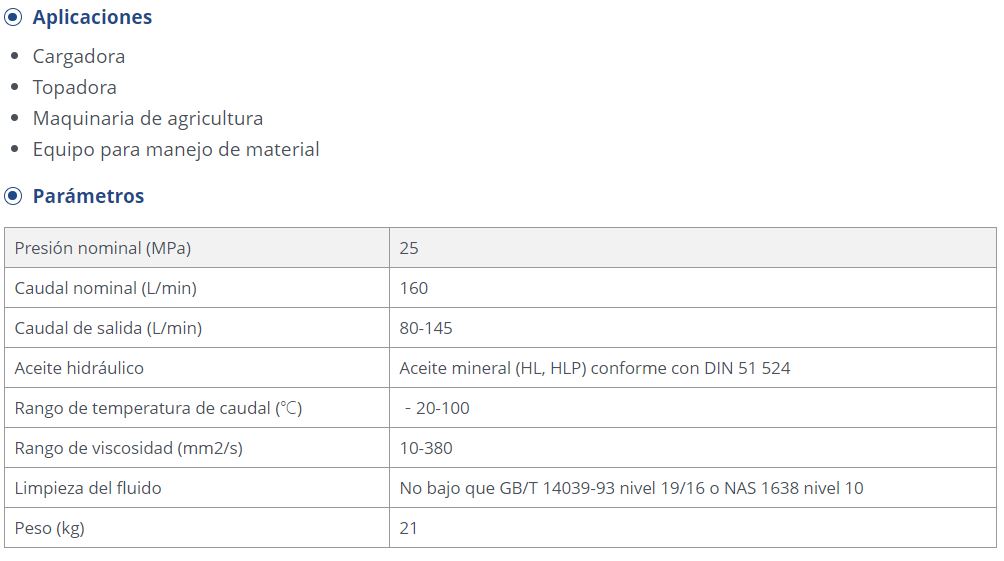

Technical Specifications
- Outlet Flow Range
- 80-145 L/min
- Operating Temperature Range
- -20 to 100 °C
- Viscosity Range
- 10-380 mm²/s
Fluid Requirements
Hydraulic Oil Type
- Mineral oil (HL, HLP)
- Conforms to DIN 51 524
- Fluid Cleanliness Standards
- GB/T 14039-93 Level 19/16NAS 1638 Level 10
Applications
Compatible Machinery
LoadersBulldozersAgricultural MachineryMaterial Handling EquipmentCranesConstruction Elevators
Design Features
Key Features
- Compact design with simplified piping
- Proportional flow direction control
- Load-independent flow ratio configuration
- Low-pressure high-flow discharge for energy saving
- Ergonomic and comfortable operation
