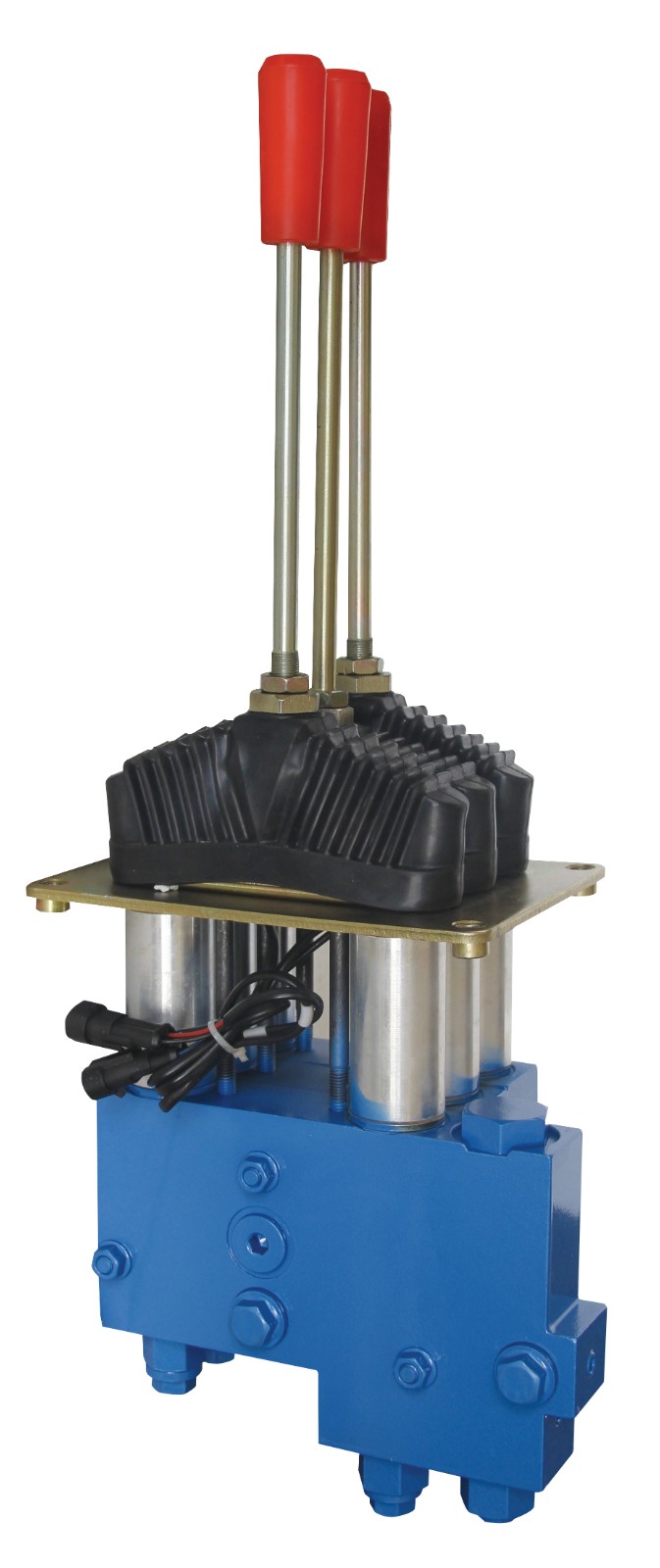

Hydraulic Directional Control Valve Joystick
This hydraulic joystick valve offers convenient operation and rapid response. It features a logic valve for floating control and reduces pressure variations in the hydraulic system.

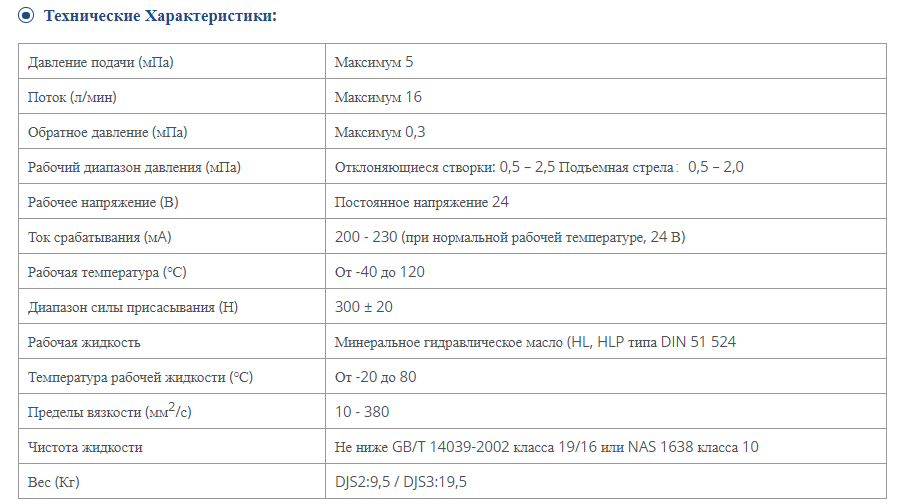

Technical Specifications
Product Overview
Professional Hydraulic Control
This high-performance hydraulic directional control valve joystick offers superior responsiveness and low operating effort for professional equipment. Designed for versatility, the DJS series features floating control via logic valves and is available in mono-block or sectional configurations. Its compact, robust design ensures seamless integration into demanding hydraulic systems while providing precise positioning and automatic reset capabilities.
Available Models
- DJS2: Mono-block directional valve with paired levers (9.5 kg)
- DJS3: Sectional directional valve with multiple levers (19.5 kg)
Technical Performance
Performance Highlights
16 l/min
Max Flow Rate
5 mPa
Max Supply Pressure
24 V
Operating Voltage
Operating Environment
| Parameter | Range/Value |
|---|---|
| Operating Temperature | -40 to 120 °C |
| Fluid Temperature | -20 to 80 °C |
| Viscosity Range | 10-380 mm²/s |
| Suction Force | 300 ± 20 N |
Compatibility & Applications
- Industry Use Cases
- LoadersBulldozersLifting EquipmentAgricultural MachineryMaterial HandlingRoad RollersForestry MachineryContainer CranesDrilling Rigs
