Hydraulic Check Valve for Functional Modules
This hydraulic check valve is designed for integration with special functional modules. The valve maintains pressure and prevents backflow in hydraulic systems, ensuring efficient and safe operation.
Technical Specifications
Product Overview
High-Performance Hydraulic Valve Module
This hydraulic check valve is engineered for integration within special functional modules for mobile machinery. Designed to offer superior performance with low energy loss, the unit features an integrated throttle valve for precise flow control. Its compact footprint simplifies installation and maintenance, making it an ideal component for heavy-duty industrial and mobile hydraulic systems requiring high reliability.

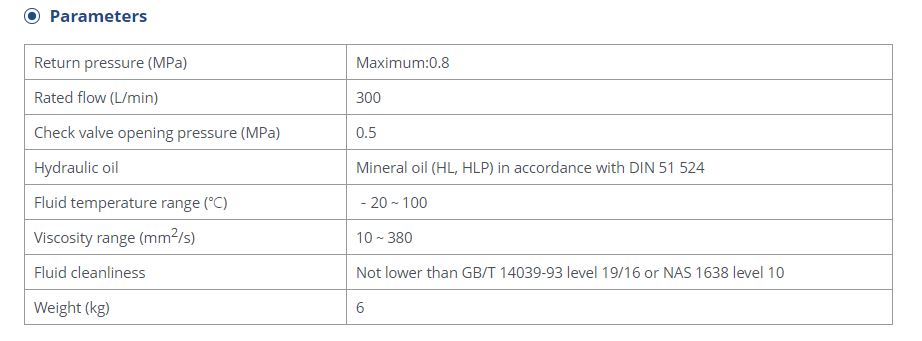

Technical Specifications
Key Performance Metrics
300 L/min
Rated Flow
0.8 MPa
Max Return Pressure
0.5 MPa
Opening Pressure
6 kg
Weight
Fluid and Environmental Specs
| Parameter | Requirement |
|---|---|
| Hydraulic Oil | Mineral oil (HL, HLP) DIN 51 524 |
| Temperature Range | -20 to 100 °C |
| Viscosity Range | 10 to 380 mm²/s |
| Cleanliness Level | GB/T 14039-93 19/16 or NAS 1638 10 |
Application
- Supported Equipment
- GraderExcavatorForkliftLoaderBulldozerHoisting MachineryMining Machinery
Features
Core Advantages
- Integrated throttle valve for low energy loss
- Compact design for simplified installation
- Corrosion-resistant construction
- Prevents backflow in hydraulic circuits
