Hydraulic Check Valve
This hydraulic check valve ensures unidirectional flow, preventing backflow and maintaining system pressure. It is designed for simple piping layouts and allows high flow rates.

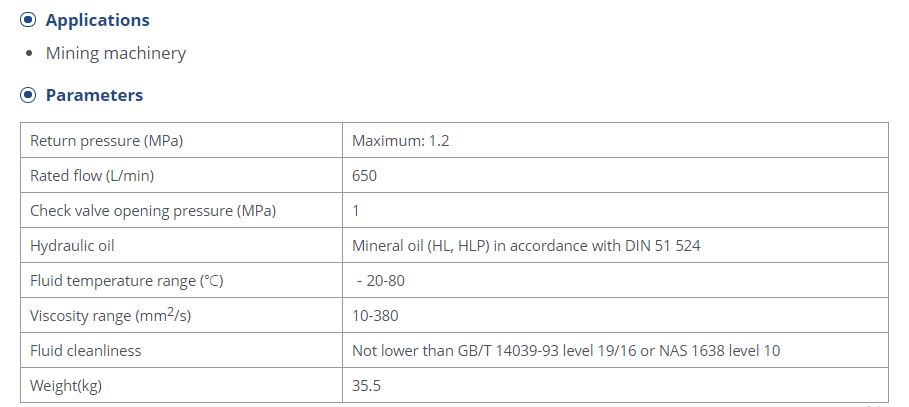

Technical Specifications
Overview
High-Performance Hydraulic Check Valve
This hydraulic check valve is designed for demanding applications, particularly in mining and construction machinery. It features a compact, robust construction that ensures reliable unidirectional flow and prevents backflow to maintain system pressure. Engineered for high flow rates and efficient operation, this valve is a critical component for systems requiring leak-free performance.
Performance Metrics
Rated Flow
650 L/min
Rated Flow
Pressure Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Return Pressure | 1.2 | MPa |
| Opening Pressure | 1 | MPa |
Technical Details
Operating Conditions
- Fluid temperature range: -20 to 80 °C
- Viscosity range: 10-380 mm²/s
- Fluid cleanliness: GB/T 14039-93 level 19/16 or NAS 1638 level 10
- Fluid Compatibility
- Mineral oil (HL, HLP) in accordance with DIN 51 524
- Physical Specifications
- 35.5 kg
Features
Key Features
Compact DesignHigh ReliabilitySimple Piping LayoutHigh Flow Capacity
