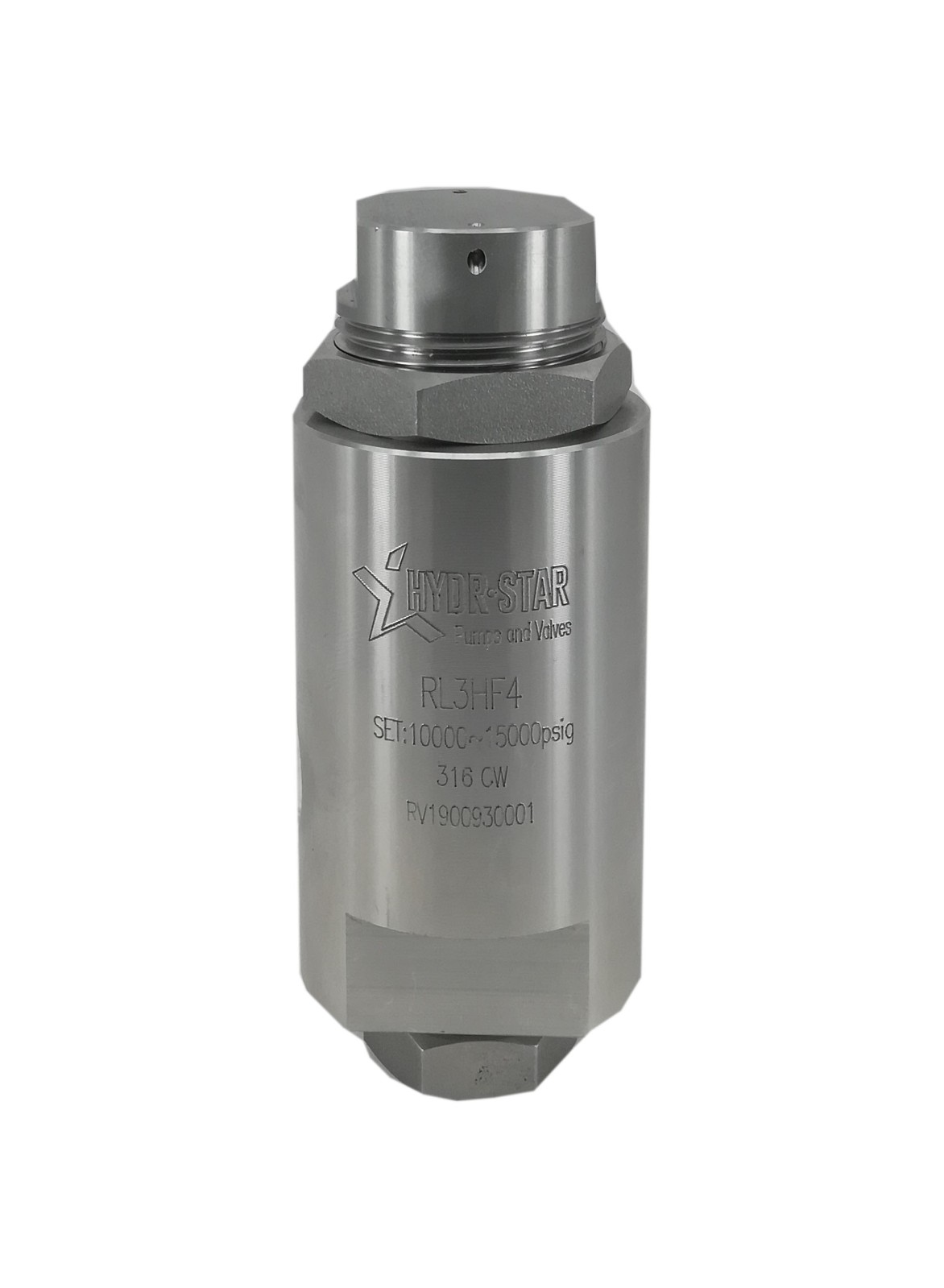

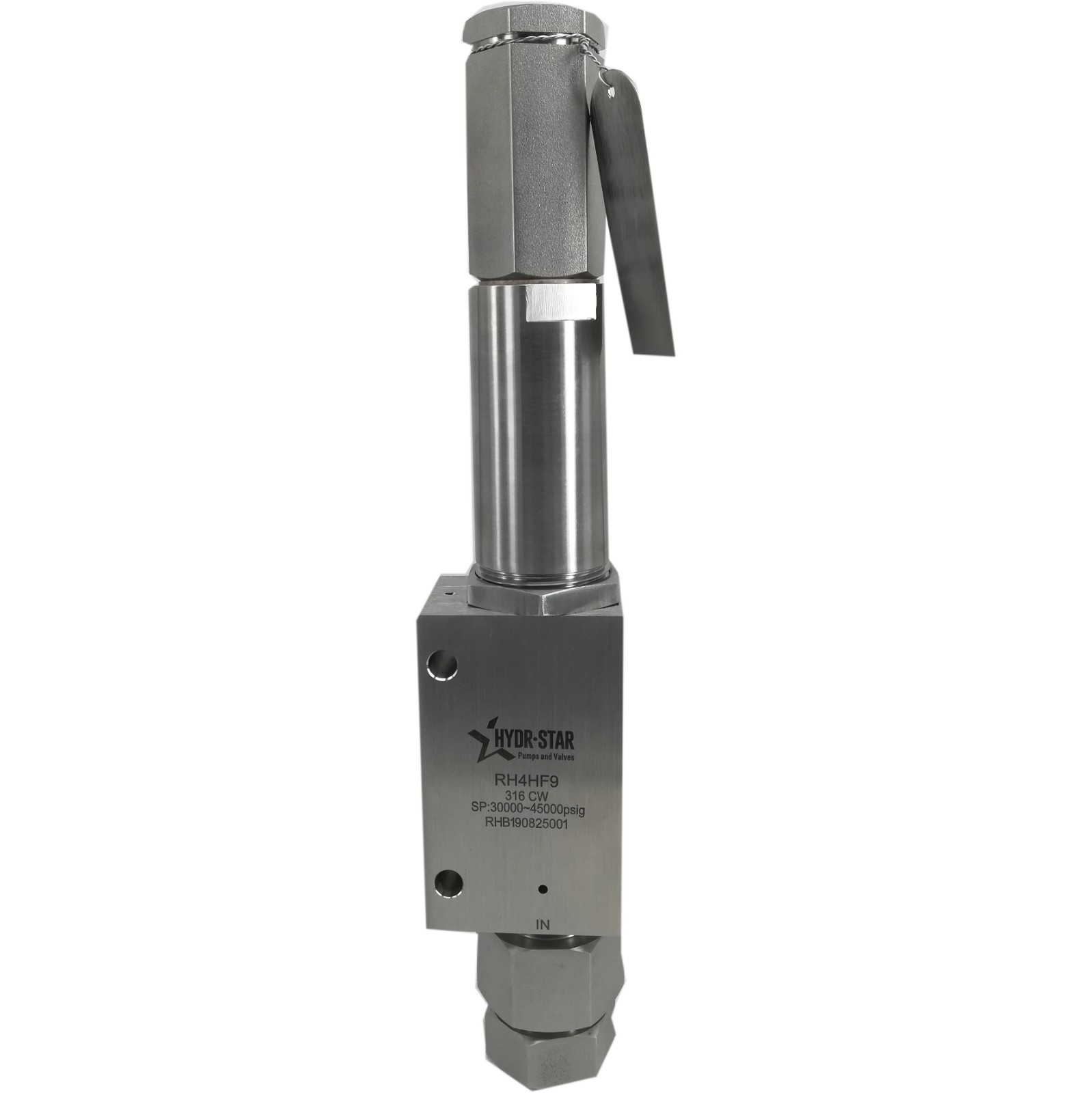

High-Pressure Relief Valve
This high-pressure relief valve protects systems by automatically relieving excess pressure. It is constructed from 316 stainless steel for corrosion resistance and durability.
Technical Specifications
Overview
High-Pressure Relief Valve
Engineered for demanding industrial environments, this high-pressure relief valve features a durable 1.316 cold-work stainless steel body for superior corrosion resistance. It is suitable for both liquid and gas applications, offering flexible sealing options with both metal and soft seat configurations. Each unit is designed for safety and precision, with the ability to lock wire the cap to maintain set pressure and optional factory-setting services.
Performance
- Working Temperature
- -100°F to 400°F (-73°C to 204°C)
- Max Pressure (Metal Seat)
- 60000 psig
- Max Pressure (Soft Seat)
- 20000 psig
Technical Specs
Standard Connection Options
| Connection Type | Inlet | Outlet |
|---|---|---|

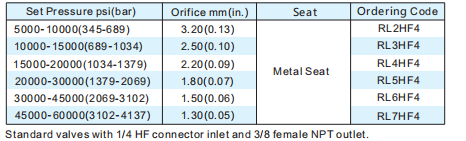

| Standard A | 1/4 HF | 3/8 female NPT |

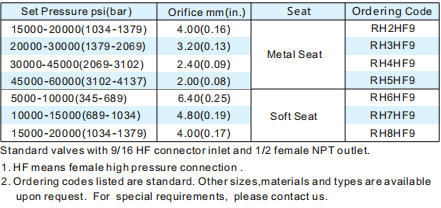

| Standard B | 9/16 HF | 1/2 female NPT |
- Available Seat Materials
- Metal SeatSoft Seat
- Compatible Media
- LiquidGas
