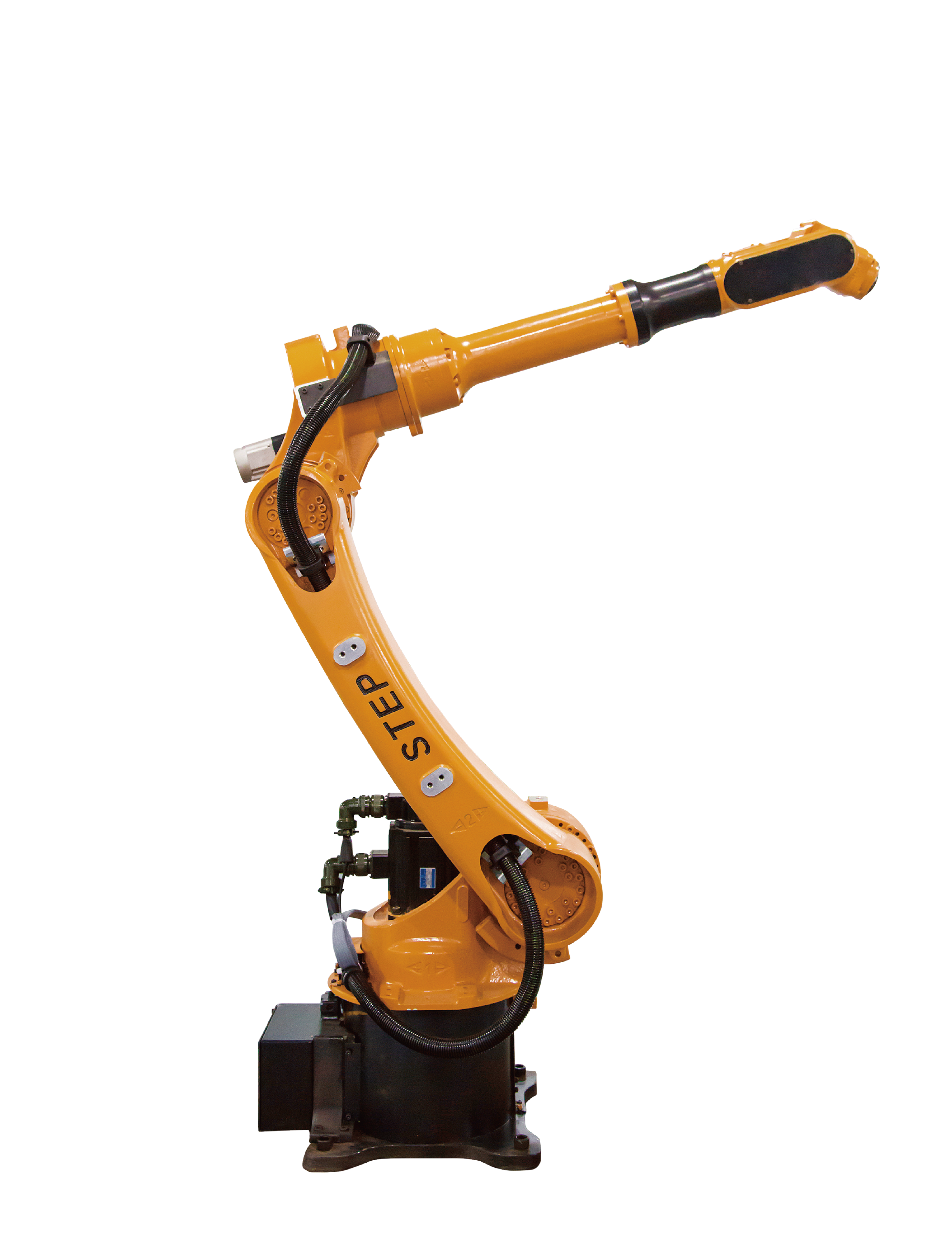

Welding Robot 1405mm Reach 6kg Payload
This welding robot has a 1405mm reach and a 6kg payload. It is designed for precision welding applications and offers flexibility for various tasks.
Technical Specifications
Overview
Industrial Welding Automation
This high-performance industrial welding robot features a 1405mm working radius and a 6kg payload capacity, specifically engineered for precision arc welding applications. It offers 6 degrees of freedom for complex maneuverability, ensuring high-quality, repeatable welds with an accuracy of ±0.05mm. The system supports seamless integration into automated production lines through multiple communication protocols and versatile installation configurations.
Technical Specifications
Performance Metrics
1,405 mm
Maximum Working Radius
6 kg
Rated Payload
0.05 mm
Repeatable Positioning Accuracy
6 axis
Degrees of Freedom
Physical Characteristics
- Body weight: 143kg
- Protection level: IP40
- Installation methods: Ground, Inverted, Tilted
Connectivity & Compatibility
- Supported Protocols
- CANOPENEtherCATRS232RS485DevicenetAnalog
Application Support
Arc Welding Features
- Complete arc welding software series
- Thick plate assembly deviation management
- Welding deformation compensation
- Customizable function development
