Transformer Radiator Fin Forming Machine
The corrugated fin wall of the transformer forming machine is specialized equipment for manufacturing transformer corrugated fin walls. It features a coil feeding system, forming rollers, a cutting mechanism, and a hydraulic system for powerful and accurate forming.
Technical Specifications
Overview
Automated Transformer Radiator Fin Production
This comprehensive transformer radiator fin forming machine is designed for high-efficiency, precision manufacturing of cooling fins. The integrated system combines automatic decoiling, advanced corrugated forming, hydraulic shearing, and automated seam welding to deliver a complete production line. It is engineered to maintain high consistency across varying steel sheet thicknesses and fin dimensions, ensuring reliable performance in transformer radiator assembly.
Production Capacity
Key Performance Indicators
4 fins/min
Forming Speed (Max)
1,600 mm
Max Fin Width
0.25 mm
Pitch Accuracy
Technical Specifications
Core Machine Parameters
| Parameter | Range/Specification |
|---|---|
| Fin Width | 300mm - 1600mm |
| Steel Sheet Thickness | 0.5mm - 1.75mm |
| Corrugation Height | 50mm - 400mm |
| Corrugation Pitch | >= 45mm |
| Corrugation Inner Gap | 6mm |
System Components
System Modules

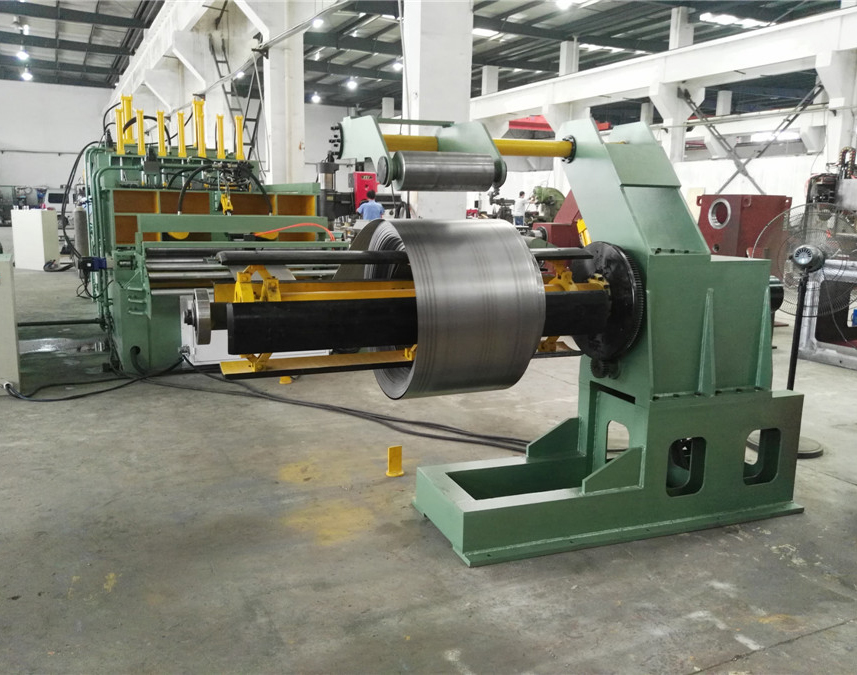

- Automatic Decoiler Machine
- Transformer Corrugated Radiator Former
- Hydraulic Shearing and Hemming Machine
- Automatic Corrugated Fin Seam Welding Machine
- Hydraulic Station
- PLC Control System
Features
- Optional and Special Features
- Hemming Function (20mm height)Single Fin EmbossmentDouble Fin Embossment
