Transformer Corrugated Tank Production Line
This automated production line is engineered for manufacturing corrugated tanks used in transformers. The system integrates decoiling, leveling, cutting, forming, and welding processes to efficiently produce high-quality corrugated tank panels.
Technical Specifications
Product Overview
Efficiency in Transformer Tank Manufacturing

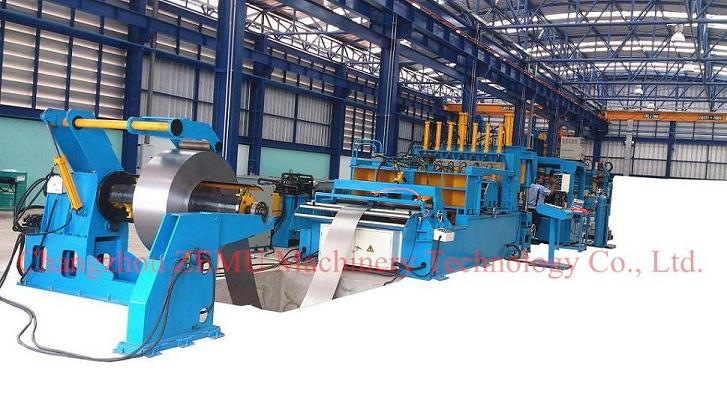

The BW1600A transformer corrugated tank production line is a specialized integrated system designed for the efficient manufacturing of transformer corrugated fin walls. It combines automated processes including decoiling, forming, shearing, hemming, and seam welding to deliver reliable quality and consistent performance. Trusted by manufacturers internationally, this line is engineered for high precision and repeatable output.
Technical Capabilities
Key Performance Metrics
4 fins/min
Max Forming Speed
1,600 mm
Max Fin Width
0.25 mm
Pitch Accuracy
Forming Specifications
| Parameter | Range/Value |
|---|---|
| Corrugated Fin Width | 300mm - 1600mm |
| Steel Sheet Thickness | 0.5mm - 1.75mm |
| Corrugation Height | 50mm - 400mm |
| Edge Bend Height | 20mm |
| Corrugation Pitch | >= 45mm |
| Corrugation Inner Gap | 6mm |
System Components
Included Components
- Automatic Decoiler Machine
- Transformer Corrugated Radiator Former
- Hydraulic Transformer Tank Fin Shearing and Hemming Machine
- Automatic Corrugated Fin Seam Welding Machine
- Hydraulic Station
- PLC Control System
- Optional Features
- One Fin EmbossmentTwo Fin Embossment
