SN500 Series Plummer Block Bearing Housing
Plummer block bearing housings in the SN500 series are designed for shaft diameters ranging from 20mm to 135mm. These housings are compatible with various bearing types and adapter sleeves.
Technical Specifications
Overview
SN500 Series Plummer Block Housing
The SN500 series represents a robust range of plummer block bearing housings designed for demanding industrial applications. These housings are engineered to accommodate shaft diameters from 20mm up to 135mm, offering versatility for various mechanical setups. Built for reliability, they support a wide array of bearing series, including 1205K through 23230K, and feature compatibility with multiple adapter sleeves and locating rings to ensure precise alignment and secure mounting.
Technical Specifications
Weight Range
1.4 kg
Minimum Weight
75 kg
Maximum Weight
- Shaft Diameter Range
- 20mm to 135mm (3/4 inch to 5-1/4 inch)
Compatibility
- Compatible Bearing Series
- 1205K-1213K2205K-22230K23218K-23230K
- Compatible Adapter Sleeves
- H205-H219H305-H3130HE205-HE330H2318-H2330
- Locating Ring Series
- SR52x5SR270x10

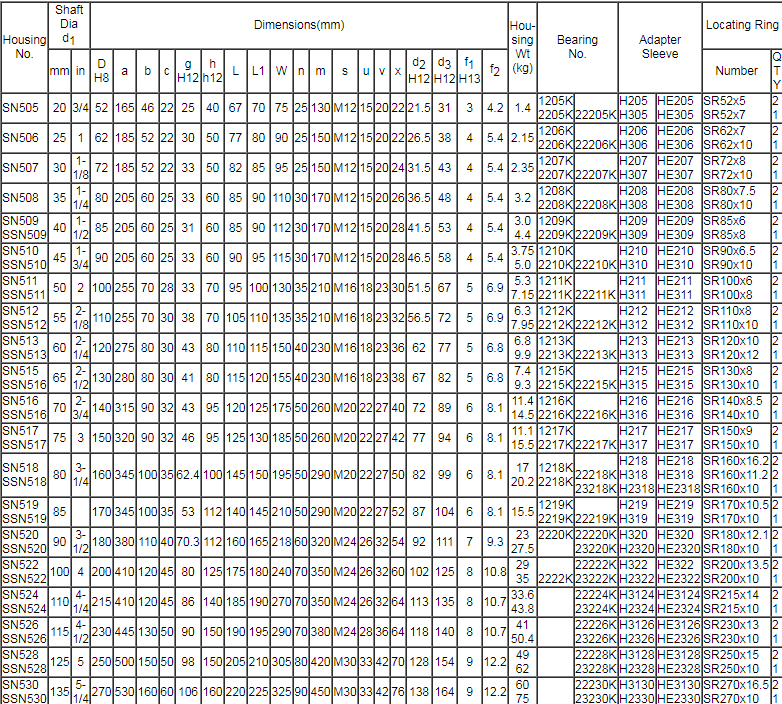

Dimensions
Housing Dimensions Reference
| Housing No. | Shaft Dia (mm) | D (mm) | Weight (kg) |
|---|---|---|---|
| SN505 | 20 | 52 | 1.4 |
| SN506 | 25 | 62 | 2.15 |
| SN510 | 45 | 90 | 3.75 |
| SN520 | 90 | 180 | 23 |
| SN530 | 135 | 270 | 75 |
