Secure Metal Lock Box for Electrical Components

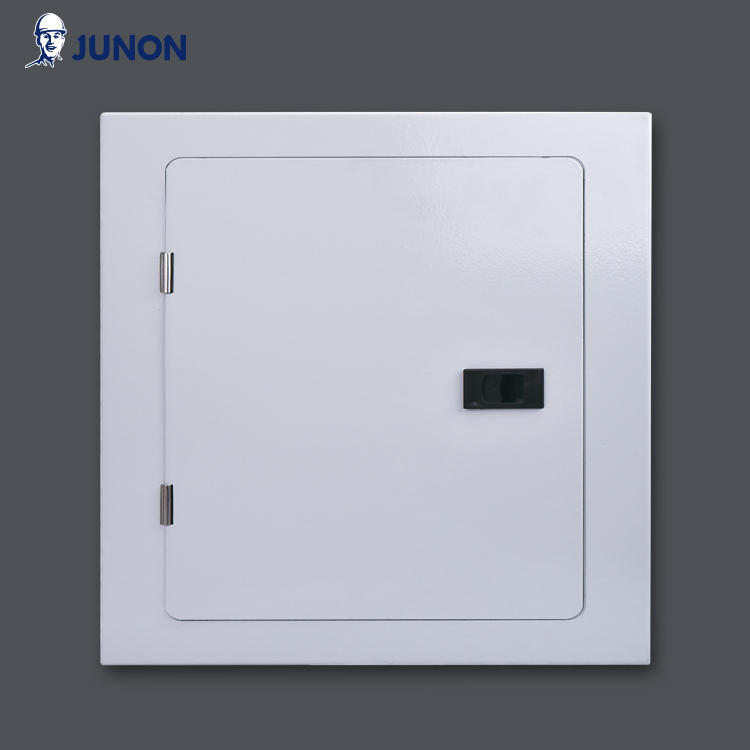

This metal lock box is designed for the secure storage and protection of electrical components. It features a durable construction with a hinged door and a robust locking mechanism.
Technical Specifications
Product Overview
Secure Metal Lock Box for Electrical Components

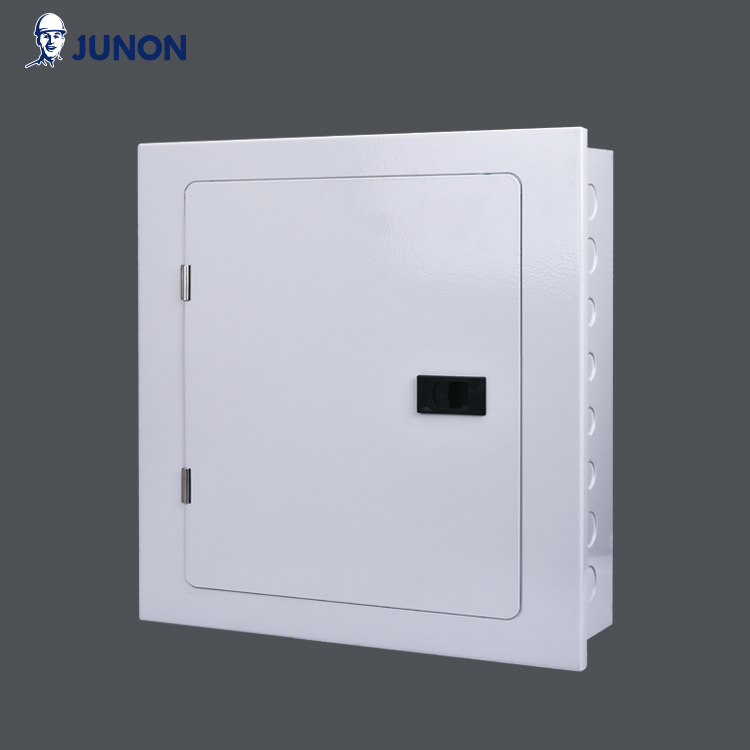

This V11 series metal lock box is engineered for reliable protection of electrical components in both residential and commercial environments. Constructed from thick 1mm steel with an electrostatic spraying finish, it offers superior corrosion resistance and durability. The design features a 16-way capacity, flush-mounted installation, and thoughtful engineering like raised DIN rails for accessible wiring.
Technical Specifications
- Rated Voltage
- 230V/400V
- Rated Current
- 100 A
- Rated Frequency
- 50/60Hz
- Capacity
- 16 way (2x8)
- Installation
- Flush Mounted
Construction & Design
Key Design Features
- Forming die casting technology
- New type of spring bolt
- Open holes on both sides for water pipes
- Raised DIN rail for wiring space
- Fast release DIN rail
- Material
- 1mm Steel
- Finish Technology
- Electrostatic spraying
Commercial Details
- Model Number
- DX11-A16-2
- Minimum Order Quantity
- 500
- Guarantee
- 3 years
Benefits
Key Benefits
Fully populated 12 MCBsFast release DIN railQuick cover removalCaptive retained terminal screwsHooded trucking entry
