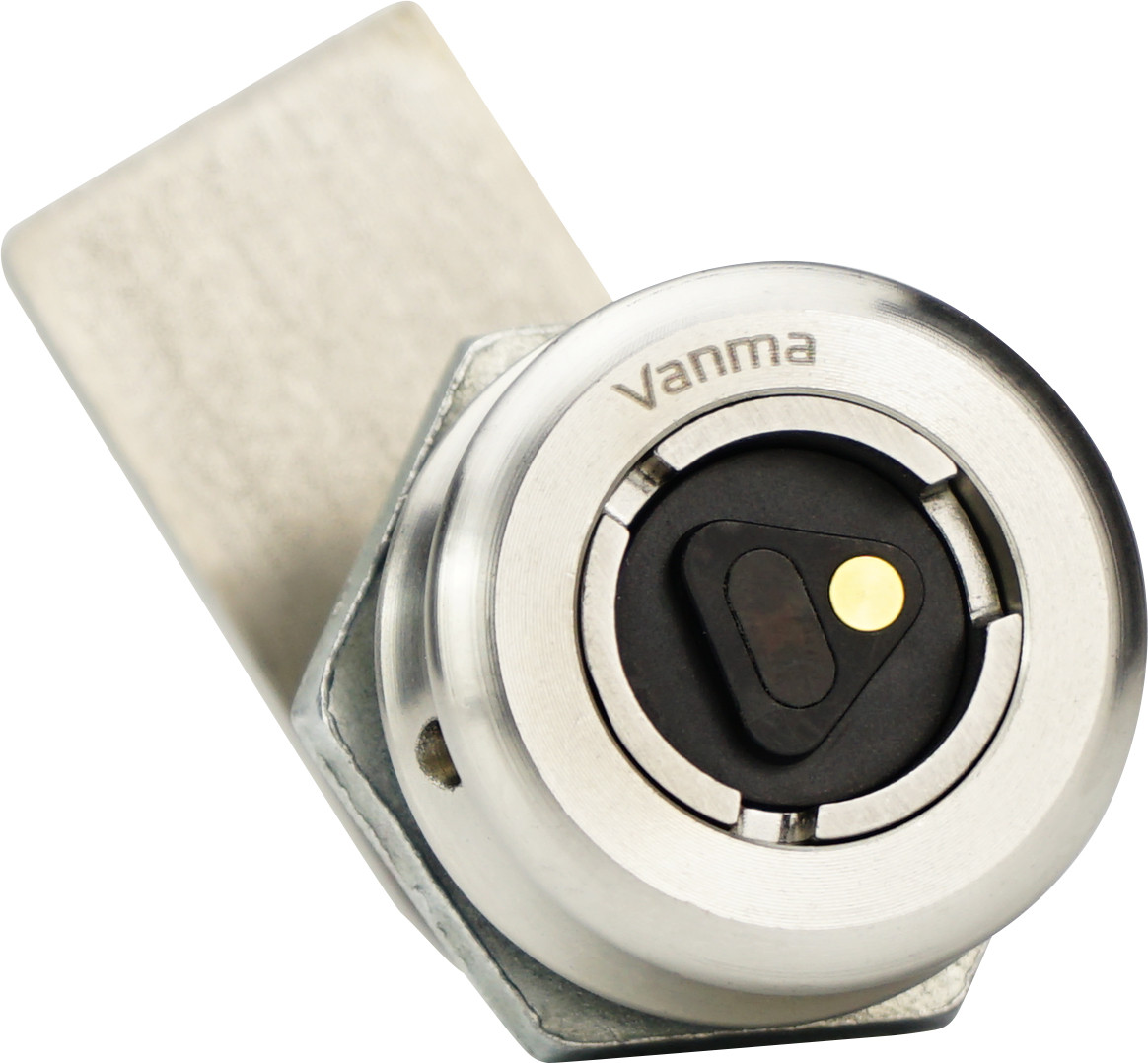

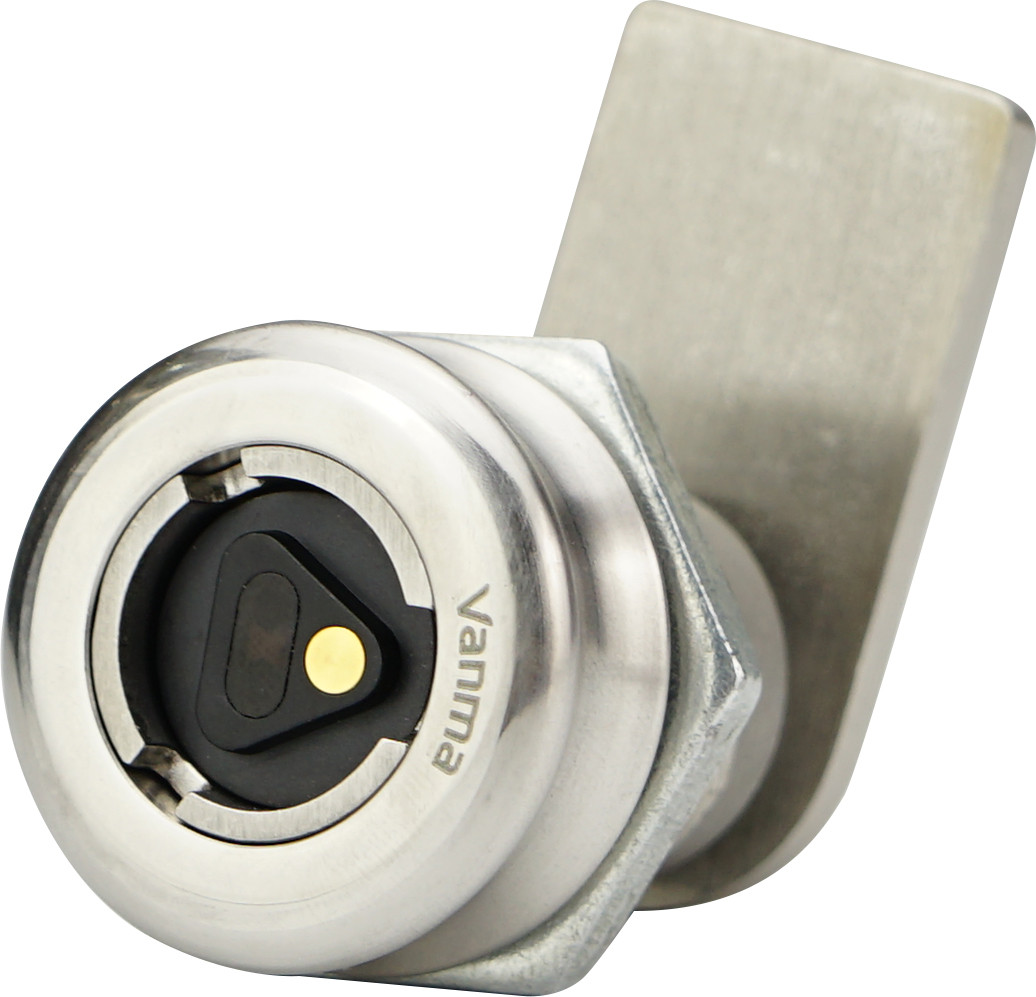

High-Security Cam Lock
This high-security cam lock is designed for robust security applications. Constructed from durable materials, it features a rotating cam mechanism for secure locking.
Technical Specifications
Overview
High-Security Electronic Cam Lock
This high-security cam lock system provides a robust access control solution for cabinets, drawers, and enclosures. Utilizing a smart electronic key and cylinder, it eliminates the need for traditional keys while offering advanced features like audit trails, scheduling, and hierarchical management. The system is designed for durability and security, featuring AES128 encryption and water-resistant construction suitable for diverse environments.

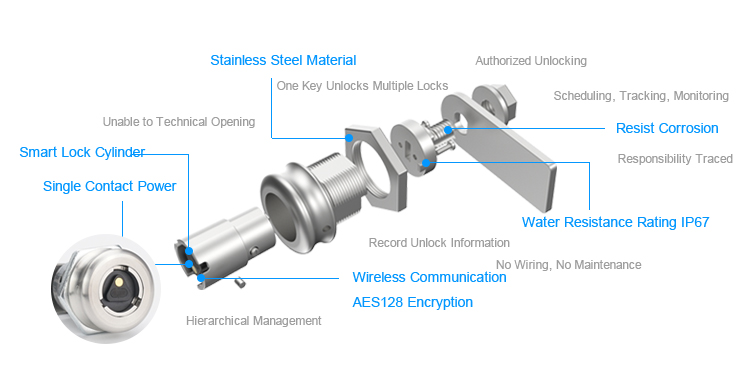

Key Features
- Core Features
- AES128 EncryptionAudit Trail LoggingWater Resistant (IP67)No Wiring RequiredHierarchical ManagementAnti-Tamper Design
Technical Specifications

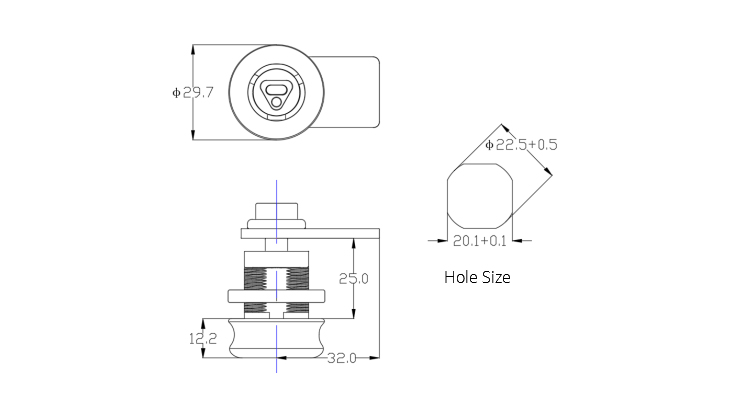

Physical Dimensions
| Component | Measurement |
|---|---|
| Body Diameter | 29.7 mm |
| Hole Size Diameter | 22.5 mm |
| Total Assembly Height | 25.0 mm |
| Bottom Diameter | 32.0 mm |
| Bottom Height | 12.2 mm |
Environmental Ratings
67 IP
Water Resistance Rating
70 °C
Max Operating Temperature
-20 °C
Min Operating Temperature

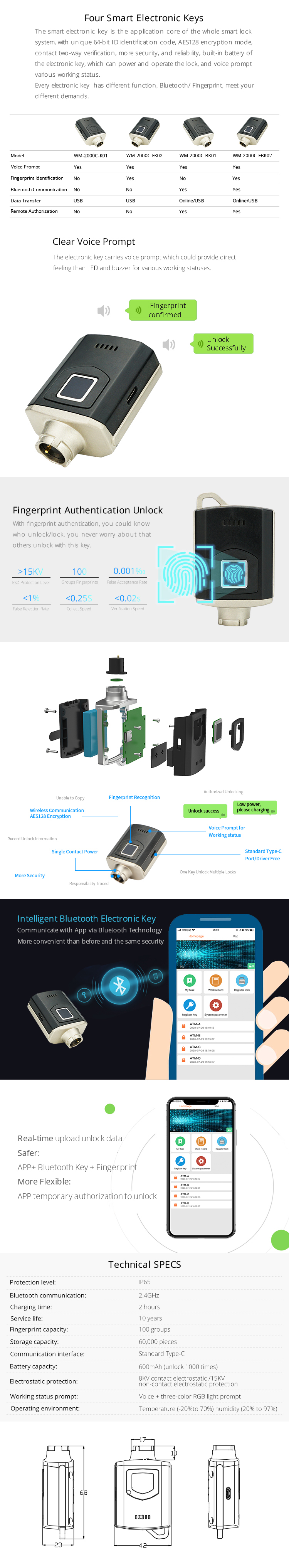

Smart Key Capabilities
Smart Key Capabilities
- Unique 64-bit ID identification code
- Two-way verification authentication
- Voice prompt status updates
- Bluetooth communication options
- Fingerprint authentication models available
- Real-time unlock data upload
Electronic Key Performance
| Metric | Value |
|---|---|
| Battery Capacity | 600 mAh |
| Unlocks per Charge | 1000 |
| Charging Time | 2 hours |
| Storage Capacity | 60,000 records |
| Service Life | 10 years |
