Raisin Color Sorting Machine
This raisin color sorting machine uses a full color CCD camera to detect subtle color differences and small defects. It features intelligent AI photo capture sorting and provides high sorting accuracy for removing discoloration, pits, and foreign material.

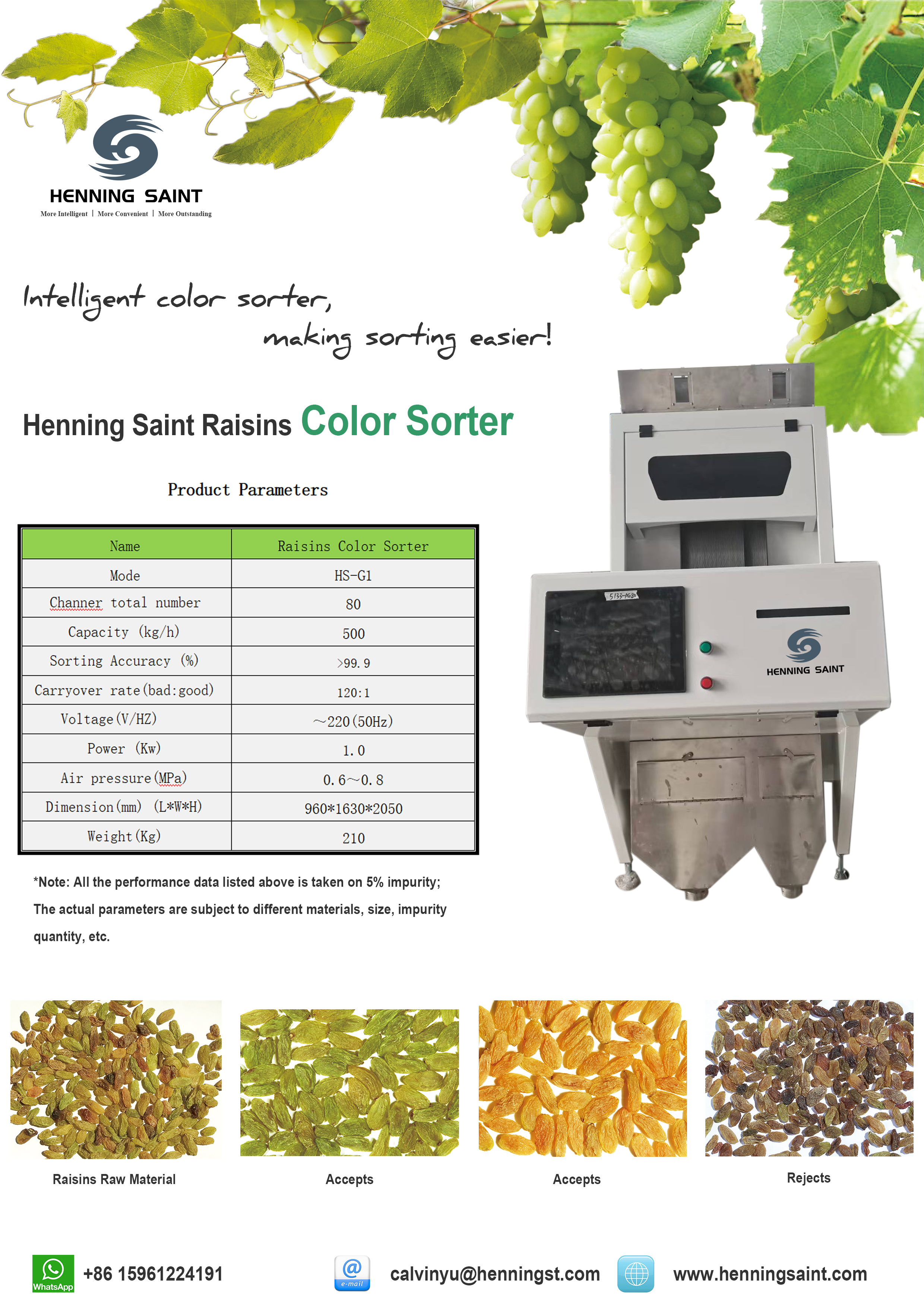

Technical Specifications
Product Overview
High-Precision Raisin Sorting
This advanced sorting machine utilizes high-resolution 5400-pixel CCD sensors to detect and remove impurities such as discoloration, pits, insect damage, stems, and foreign material. Designed for efficiency, it combines intelligent AI photo capture with high-frequency ejectors to deliver exceptional sorting accuracy. The system is versatile, capable of both color and shape sorting for dried fruit varieties including raisins, cranberries, figs, and prunes.
Technical Specifications
Sorting Accuracy
99.9 %
Sorting Accuracy
120 :1
Carryover Ratio (Bad:Good)
Dimensions & Weight
| Parameter | Value |
|---|---|
| Length | 960 mm |
| Width | 1630 mm |
| Height | 2050 mm |
| Weight | 210 Kg |
Operational Requirements
- Voltage: ~220V (50Hz)
- Power Consumption: 1.0 Kw
- Air Pressure: 0.6~0.8 MPa
Key Features
Technology Highlights
- 5400 Pixels high-resolution CCD sensors
- Long-life LED optical light source
- High-frequency quality ejectors
- Wifi and Mobilephone control integration
- Sorting Capabilities
- Color SortingShape SortingDiscoloration RemovalForeign Material DetectionIntelligent AI Photo Capture
