PVC Duct Tube for Air Conditioner Line Sets

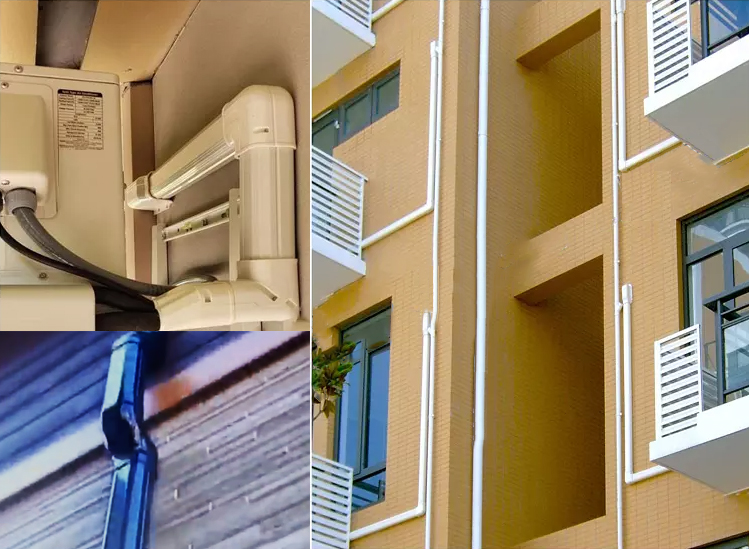

This PVC duct tube is designed for air conditioner HVAC line set cover kits. It provides protection and concealment for AC pipes, ensuring a clean and professional installation.
Technical Specifications
Product Overview
Professional HVAC Line Set Protection
This PVC duct tube system is designed to provide a clean, professional finish for mini-split air conditioning installations by concealing and protecting refrigerant lines, drain pipes, and communication cables. Constructed from high-quality, anti-aging PVC, the kits offer excellent resistance to UV radiation and weather elements, ensuring long-lasting performance in both indoor and outdoor environments. The modular design features components that can be separated in the middle, allowing for quick and easy installation over existing line sets.
Key Features
- High-quality weather-resistant PVC material
- Anti-aging properties for long-term outdoor durability
- Easy-install design with separable components
- Comprehensive protection for pipes and wiring
- Aesthetically pleasing concealment for HVAC line sets
Technical Specifications
Straight Duct Models
| Model | Width (A) mm | Depth (B) mm | Length (C) m |
|---|---|---|---|
| GG-80-11 | 77 | 64 | 2 |
| GG-100-III | 103 | 68 | 2 |
| GG-130-IV | 130 | 90 | 2 |
| GG-150-V | 150 | 90 | 2 |
- Material Properties
- Anti-Aging PVCUV ResistantWeatherproofCorrosion ResistantImpact Resistant

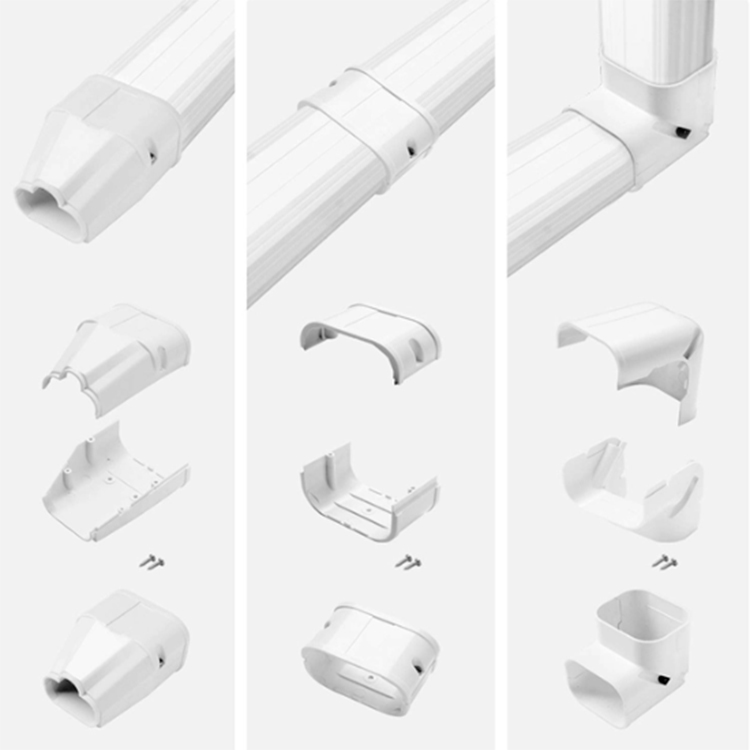

Components & Fittings

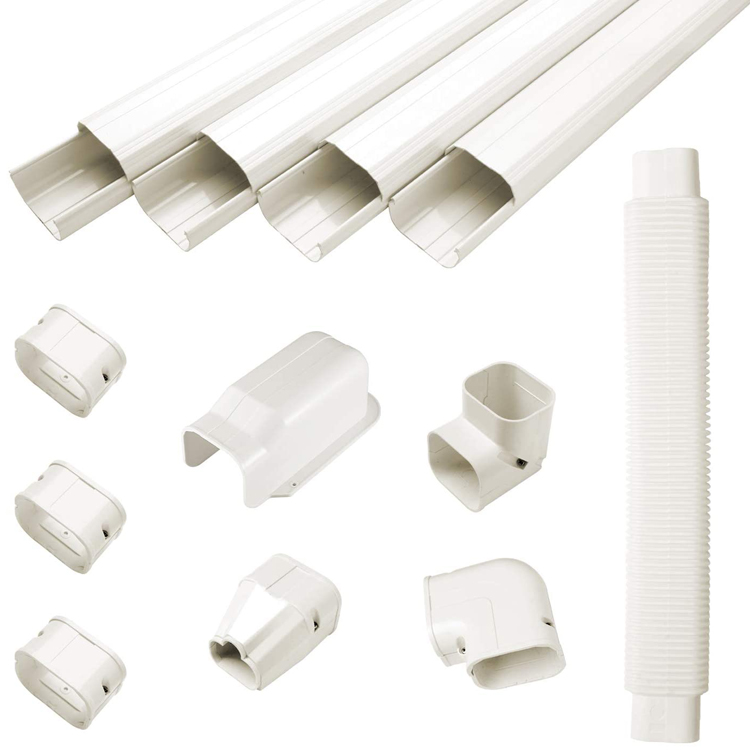

Available System Components

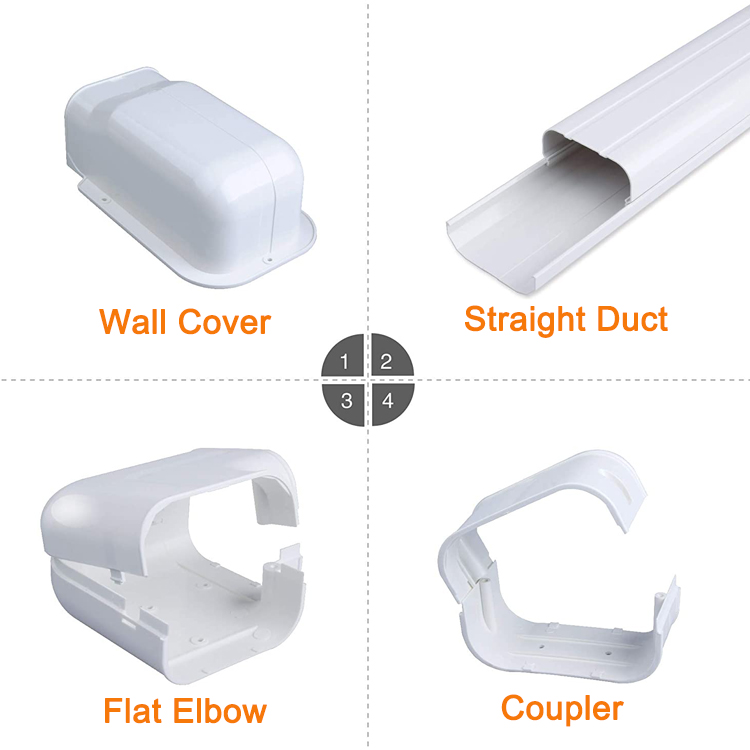

- Straight Duct
- 90° Plane Bending (Flat Elbow)
- 90° Vertical Bending
- Wall Cover / Wall Cap
- End Cover / End Cap
- Coupling / Cover Joint
- Flexible Duct / Free Joint
- Ceiling Cap
- PVC Base Bracket

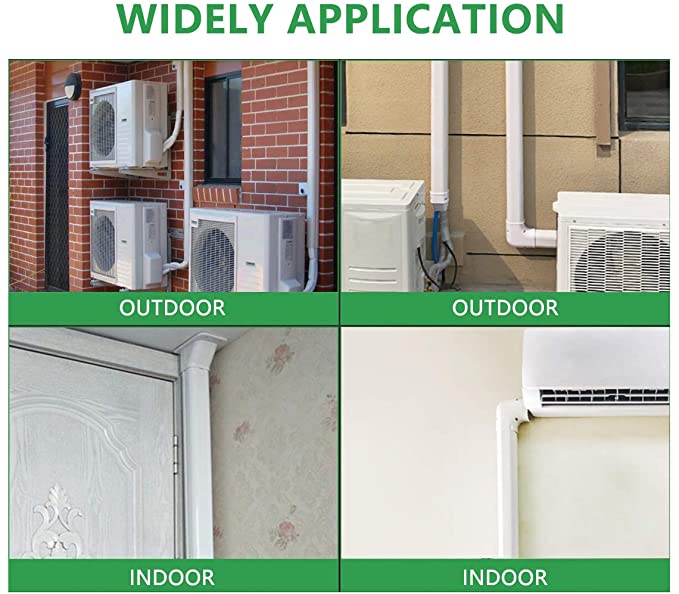

Application
Installation Environment
IndoorOutdoorResidentialCommercial
- Compatible Systems
- Mini-split AC units, HVAC line sets, and central air conditioning pipe routing.
