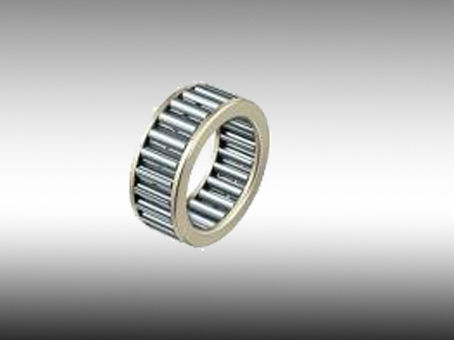

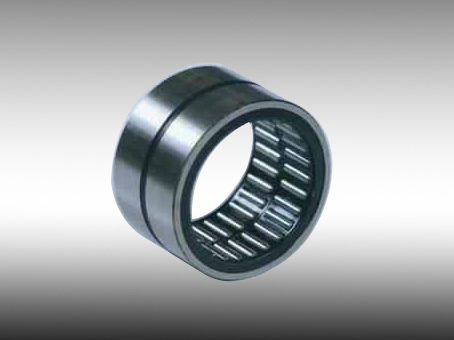

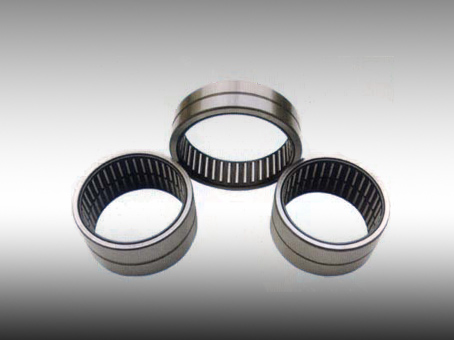

Needle Roller Bearing for High Load Applications
This needle roller bearing is designed for high load capacity and reduced friction in rotating applications. Its compact design allows for installation in space-constrained environments.
Technical Specifications
Product Overview
High-Performance Needle Roller Bearings
These needle roller bearings are engineered for applications demanding high load capacity within compact radial spaces. By utilizing a full complement of cylindrical rollers with a small diameter-to-length ratio, they provide a large contact area that effectively distributes loads and minimizes friction. Constructed with hardened steel races and rollers, these bearings ensure durability and reliable performance in demanding industrial environments such as transmissions and engines.
- Available Series
- HKBKHK 2RSBK RS TATLASCEBCENKRNANKSNKINA
Technical Specifications
Dimensional Data
| Designation | Shaft Dia (mm) | Outer Dia (mm) | Width (mm) | Dynamic Load (N) |
|---|---|---|---|---|
| HK0408TN | 4 | 8 | 8 | 1,540 |
| HK0509 | 5 | 9 | 9 | 2,200 |
| HK0608 | 6 | 10 | 8 | 1,830 |
| HK0810 | 8 | 12 | 10 | 3,700 |
| HK0910 | 9 | 13 | 10 | 4,050 |
Performance Metrics
Limiting Speeds
40,000 rpm
HK0408TN
36,000 rpm
HK0509
32,000 rpm
HK0608
21,000 rpm
HK0810
