Metal Cutting Bandsaw
This metal cutting bandsaw is designed for precise and efficient cutting of metal materials. It features a robust frame, adjustable cutting angle, and coolant system.
Technical Specifications
Product Overview
Heavy-Duty Metal Cutting Bandsaw

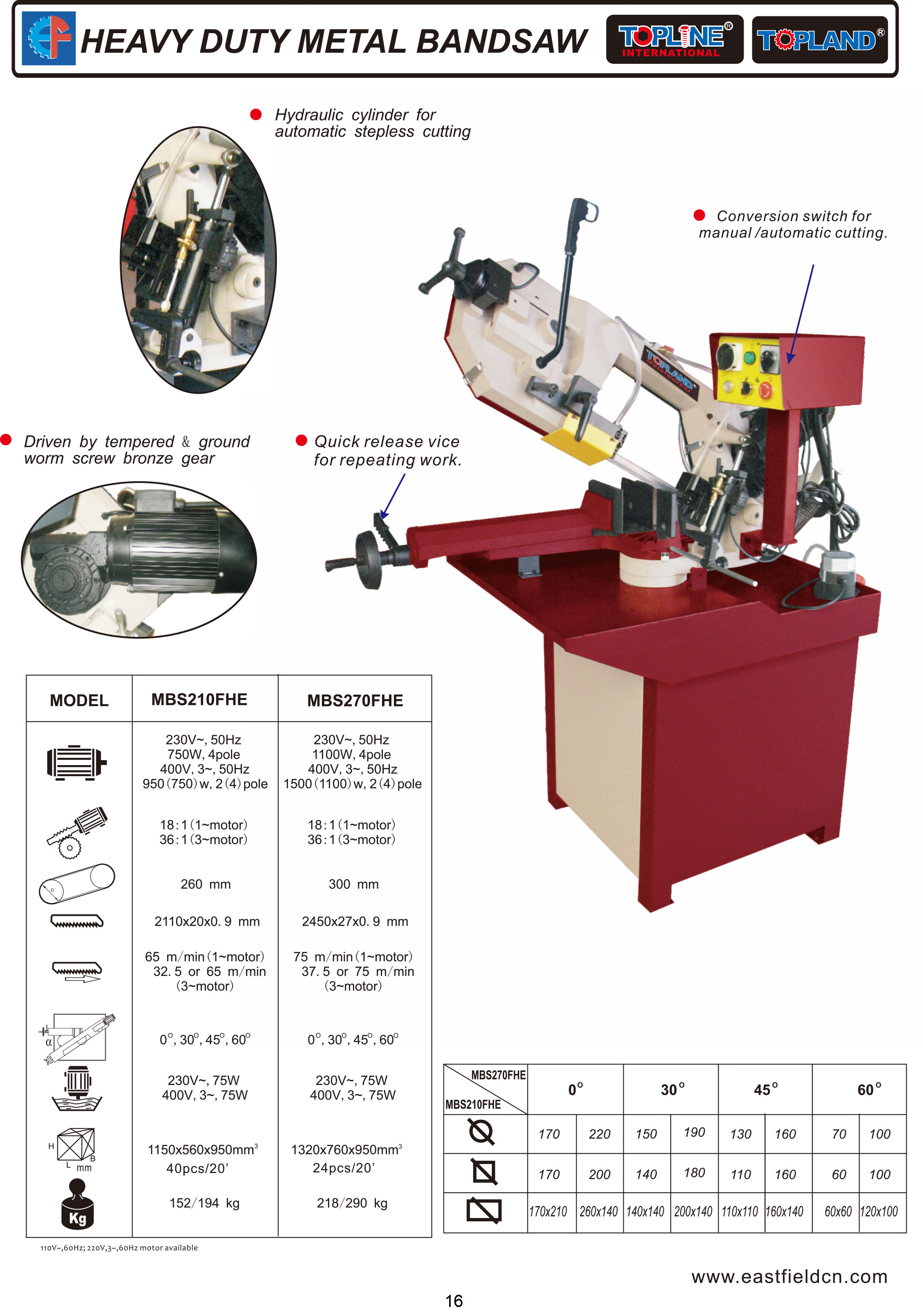

This industrial-grade metal cutting bandsaw is engineered for precision and efficiency in metal fabrication workshops. Featuring a robust frame and a powerful motor, it provides consistent performance for various metal shapes and sizes. The machine is equipped with a hydraulic cylinder for automatic stepless cutting, a cooling system to extend blade life, and a quick-release vise for secure workpiece clamping, making it an ideal choice for professional metalworking applications.
Key Features
Core Features
Hydraulic Stepless CuttingCooling SystemQuick-Release ViseAdjustable Cutting AnglesPowerful MotorPrecision Worm Gear Drive
Technical Specifications
Motor Power Options
- 750W
- 950W
- 1100W
- 1500W
- Cutting Angle Range
- 0°15°30°45°60°45°L
- Blade Speed Range
- 32.5 - 90 m/min
Cutting Capacity
Cutting Capacity (mm)
| Angle | Round | Square |
|---|---|---|
| 0° | 270 | 260 |
| 45° | 240 | 180 |
| 60° | 160 | 100 |
| 45°L | 210 | 180 |
Performance Metrics
Performance Highlights
25 W
Coolant Pump Power
415 kg
Max Weight
