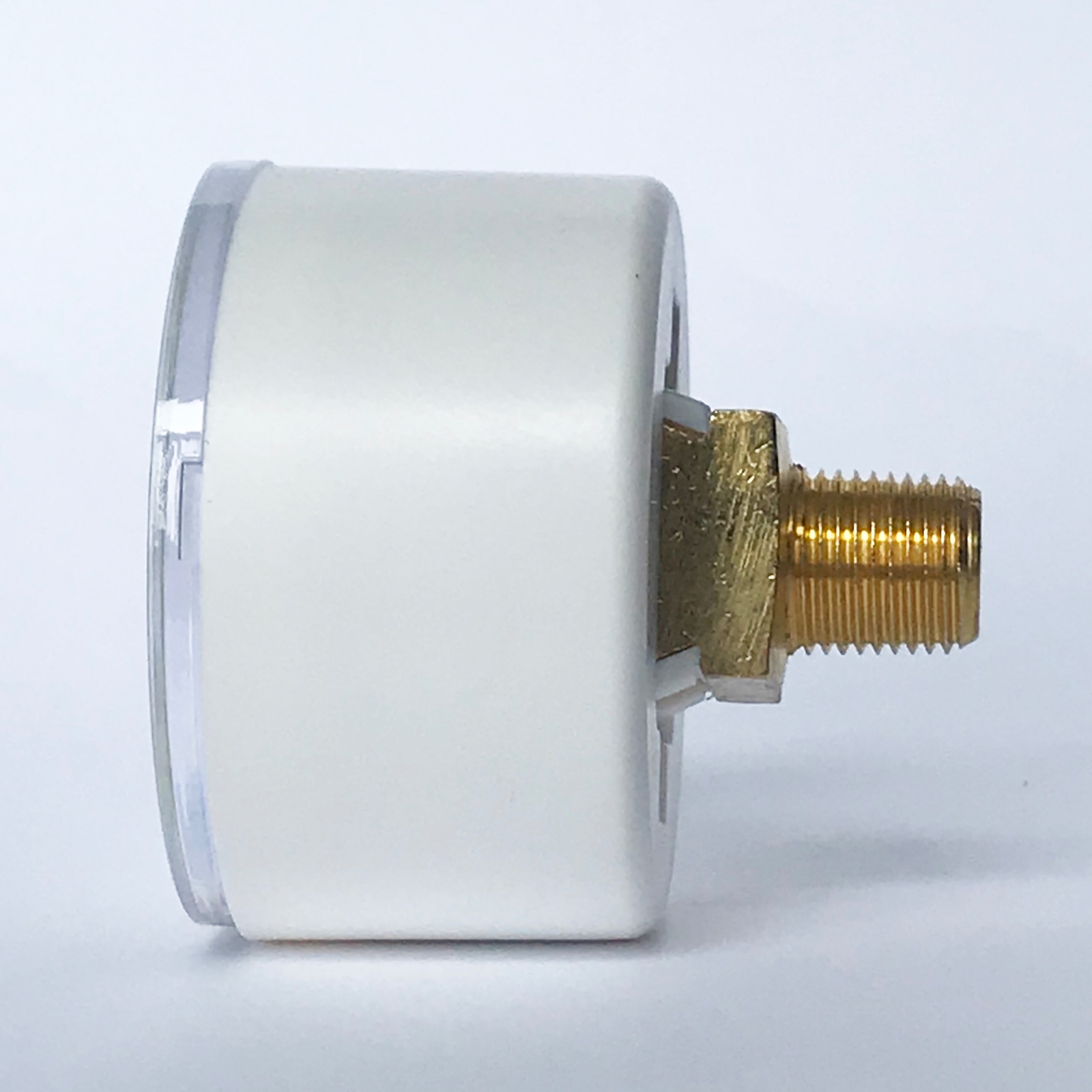

Medical Pressure Measurement Gauge

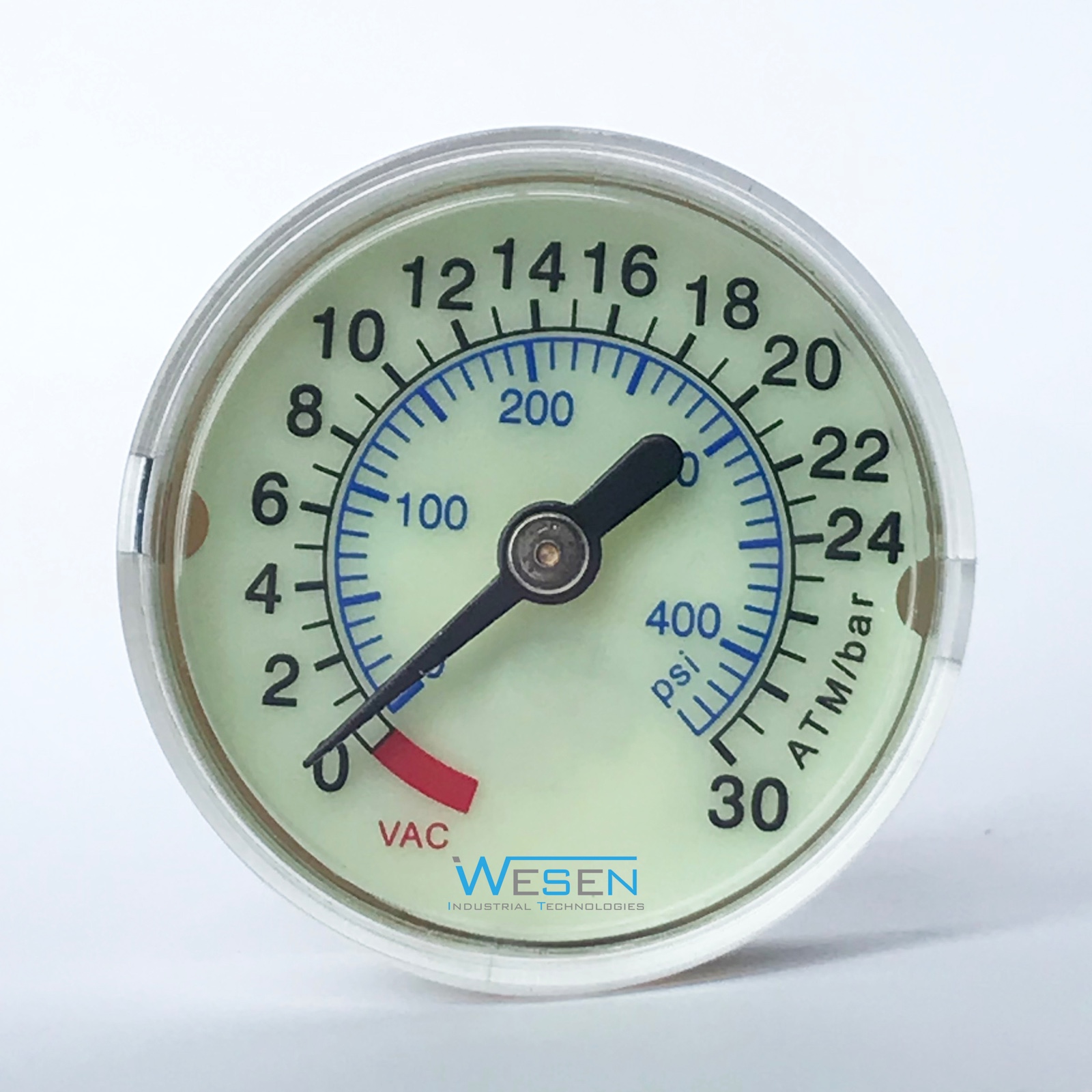

This medical pressure gauge accurately measures pressure in medical applications. It features a clear dial with dual scales and a robust construction for reliability.
Technical Specifications
Product Overview
Precision Medical Pressure Measurement
This medical-grade pressure measurement gauge is engineered for high-accuracy monitoring in critical healthcare environments. Designed with robust materials like stainless steel and tempered glass, it ensures reliability and longevity under demanding conditions. The versatile configuration options, including various mounting styles and pressure ranges, make it suitable for a wide array of medical devices and systems.
Physical Dimensions & Construction
Available Dial Sizes
- 1.5"
- 2"
- 2.5"
- 3.5"
- 4"
- 5"
- 6"
- 8"
- 10"
- Case Materials
- SS304SS316Black SteelPlastic
- Window Options
- GlassTempered GlassSafety GlassPC GlassAcrylic
Performance & Technical
Internal Liquid
GlycerinSilicone Oil
Gauge Type
Liquid FilledDry Type
- Pressure Range
- -1 to 1000 bar
Installation & Mounting
Mounting Styles
- Bottom
- Back
- Lower Back
- Thread Standards
- PTNPTG
Materials & Components
Internal Material Composition
| Component | Material Options |
|---|---|
| Movement | SS304 / Brass |
| Connection | SS316 / SS304 / Brass |
| Bourdon Tube | SS316 / Phosphor Bronze |
