Medical Oxygen Flow Regulator with Humidifier

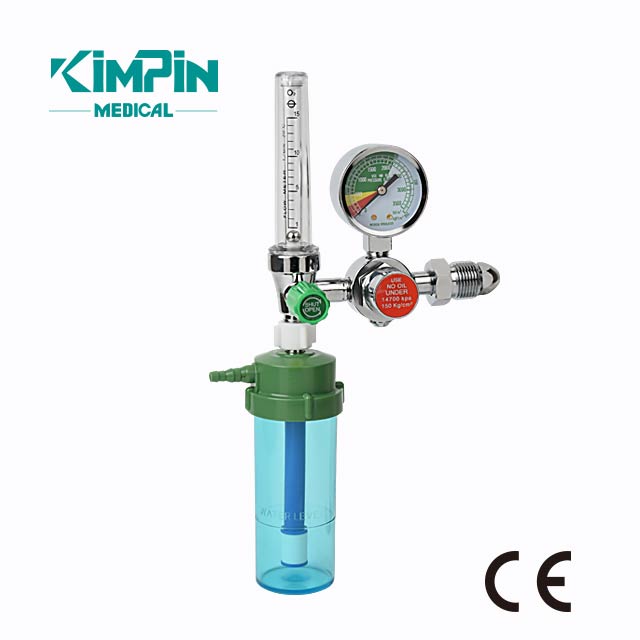

This medical oxygen regulator controls oxygen flow from high-pressure sources to patients or devices. It includes a flow meter for adjustment, a pressure gauge, and a humidifier bottle.
Technical Specifications
Overview
Professional Medical Oxygen Regulation
This medical oxygen regulator is engineered for precise control and reliable delivery of oxygen therapy. Featuring a durable chrome-plated brass body and a high-visibility polycarbonate flowmeter, it ensures accurate flow adjustment from 0 to 15 LPM. Designed for safety and longevity, it includes an integrated sintered metal inlet filter and a reliable external safety relief valve, making it an essential component for hospital and clinical respiratory care.
Technical Specifications
- Inlet Pressure
- 15 Mpa
- Flow Range
- 0-15 LPM / 0-10 LPM
- Humidifier Bottle Capacity
- 150 ml
Design & Construction
- Body Material
- Chrome-plated Brass
- Gauge Lens
- Polycarbonate
- Inlet Filter
- Sintered metal
Compliance & Safety
Safety Features
- External safety relief valve
- Sintered metal inlet filter
- Dual scale gauge
- Certifications
- ISO13485CE Certified
Logistics
Packaging Details
| Specification | Detail |
|---|---|
| Carton Dimensions | 52 x 33 x 23 cm |
| Net Weight | 8 kg |
| Gross Weight | 9 kg |
| Packing Density | 10 pcs/ctn |
