Laser-Arc Hybrid Automated Welding System

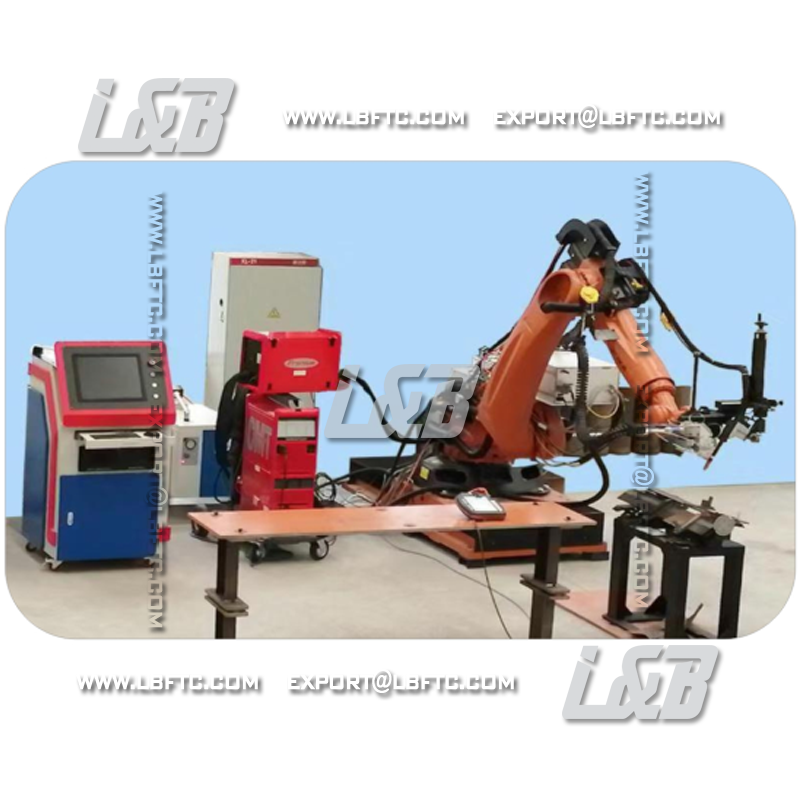

This automatic machine integrates laser and arc welding for high-precision and efficient welding. It features a robotic arm and advanced controls for automated manipulation and precise parameter adjustments.
Technical Specifications
Product Overview
Advanced Laser-Arc Hybrid Welding
This automated welding system integrates laser and arc technologies to deliver high-precision results for both small batches and complex structural products. It effectively addresses common manufacturing challenges like inconsistent weld quality and poor mechanical properties in large welding gaps. Designed for versatility, the system supports a wide range of materials and provides robust expansion capabilities for future process requirements.
Technical Capabilities
Key Process Features
- Laser-arc composite welding process
- High-precision automated control
- Effective gap bridging for inconsistent joints
- Support for complex structural parts
- Scalable process expansion
- Compatible Materials
- Low-alloy high-strength steelStainless steelMagnesiumAluminumTitaniumRed copperHigh temperature alloysDissimilar metals

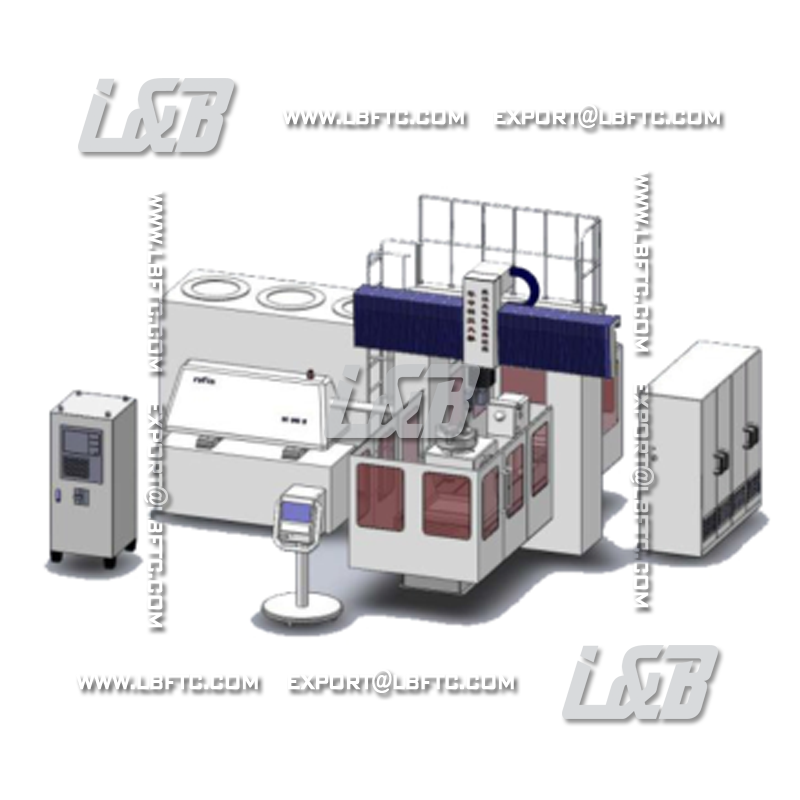

System Configuration
Core System Components
| Component | Function |
|---|---|
| Robotic Arm | Automated manipulation and positioning |
| Control Console | Programming and parameter monitoring |
| Welding Power Source | Energy delivery for hybrid process |
| Cooling System | Thermal management |
| Safety Cabin | Operational protection and viewing |
