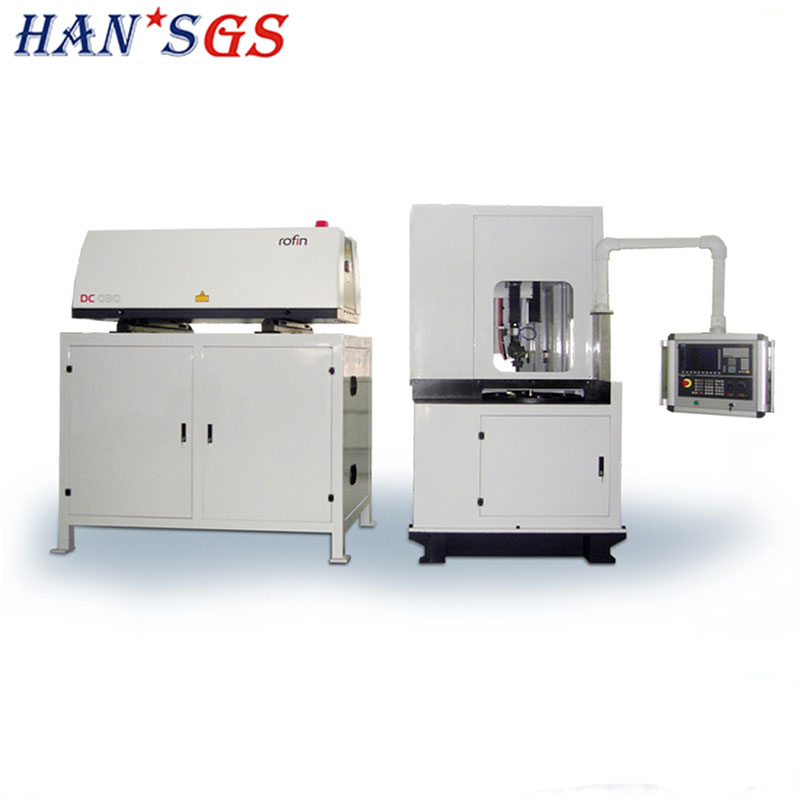

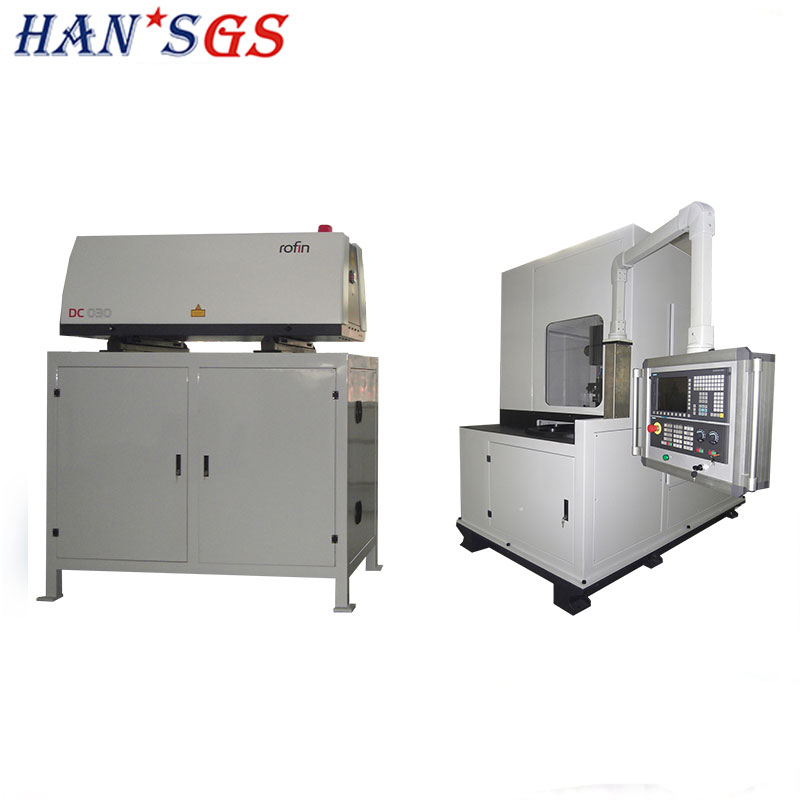

Automatic Laser Welder for Sealing and Battery Box Fabrication
This automatic laser welding machine is designed for precise and efficient welding of stainless steel sealing parts and aluminum battery boxes. It features a robust construction and advanced CNC control system for optimal welding performance.
Technical Specifications
Overview
High-Performance CNC Laser Welding System

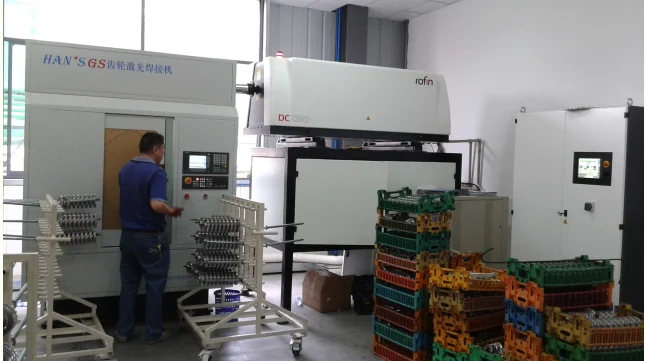

The HC03 high-power laser welding machine is a specialized CNC system designed for the precision fabrication of transmission gears and battery box sealing. By utilizing a split-type design for gears and shafts, this machine helps reduce component weight and volume while saving raw materials. The integrated system features a robotic hand for automated loading and unloading, ensuring high efficiency and consistent weld quality for demanding automotive and industrial applications.
Key Performance Metrics
Performance Highlights
3,000 W
Rated Power
2 m/min
Max Welding Speed
6.3 mm
Max Welding Depth
Laser Source Specifications
- Power Rating
- 3000 W
- Power Dynamic Range
- 300-3000W (Adjustable)
- Power Stability
- <±2%
Beam Quality
- Beam Mode
- Fundamental mode (00 mode)
- Divergence Angle
- <0.15 mrad (Full-shaped)
- Beam Diameter
- 20mm-25mm (<10m)
System Advantages
Automation & Integration
- Robotic hand for automated loading and unloading
- Four-station automatic turn plate
- Integrated auto-preheat machine
- CNC control system for synchronized operation
- Automatic pressing device to reduce deformation

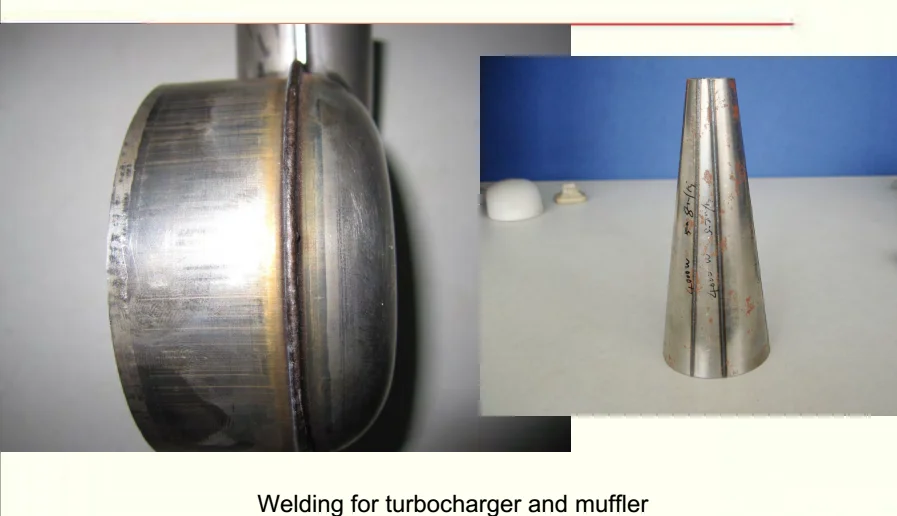

Application Examples
Welding Performance by Application

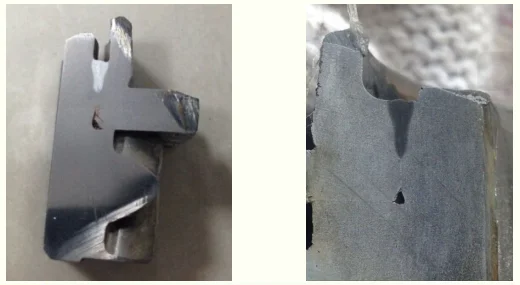

| Application | Material | Power (W) | Speed (m/min) | Depth (mm) |
|---|---|---|---|---|
| Transmission Gear | Steel | 2500 | 2.0 | 3.5 |
| Pulsor (High Power) | Metal | 3800 | 1.6 | 6.3 |
| Sealing Parts | 304SS | 700 | 2.0 | 0.7 |
| Heat Exchanger | Stainless Steel | 800 | 2.0 | 1.5 |
| SS Pipe (3D Curve) | Stainless Steel | 800 | 1.5 | 1.0 |
Safety & Control
- Safety Features
- Laser FenceCentralized DisplayAnti-interference ControlWater Chiller IntegrationProtective Air Unit
Material Compatibility
Weldable Materials
Stainless Steel (304SS)AluminumDissimilar MetalsTransmission Steel
