Industrial Articulated Robot
This industrial robot is designed for stacking, unstacking, transferring, stamping, loading, and unloading. It is used in the packing, drinking, chemical, and food industries.
Technical Specifications
Overview
High-Performance Articulated Robot
This industrial articulated robot is designed for high-efficiency automation tasks including stacking, transferring, and loading/unloading. Featuring 4 degrees of freedom and an AC servo drive system, it provides robust and precise motion control. With a compact footprint and flexible integration capabilities, this unit is an ideal solution for industries such as chemical, food, and packaging.
Key Metrics
Payload Capacity
8 kg
Payload Capacity
1,433 mm
Motion Radius
0.08 mm
Repeatability
Technical Specifications
- Degrees of Freedom
- 4
- Drive Method
- AC Servo Drive
- Machine Weight
- 180 kg
- Cycle Time
- 1800 r/h
- Wrist Allowable Load Inertia
- 0.25 kg·m²
Applications
- Suitable Industries
- PackingBeverageChemicalFood
- Primary Tasks
- StackingUnstackingTransferringStampingLoadingUnloading

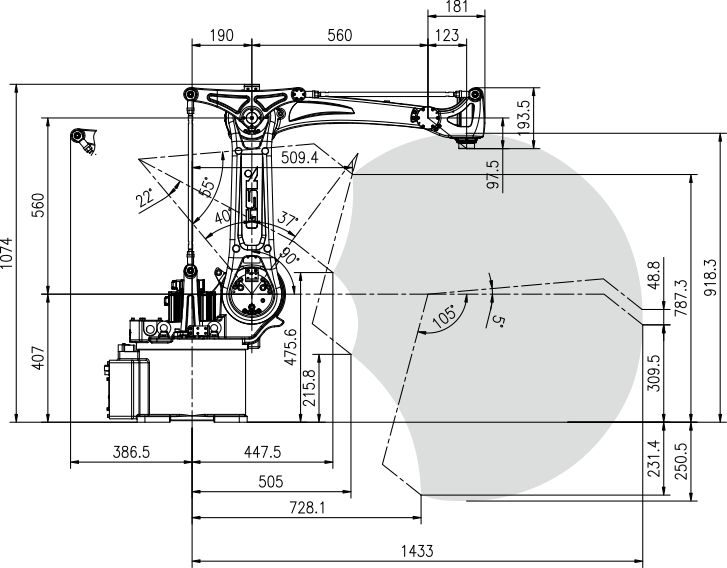

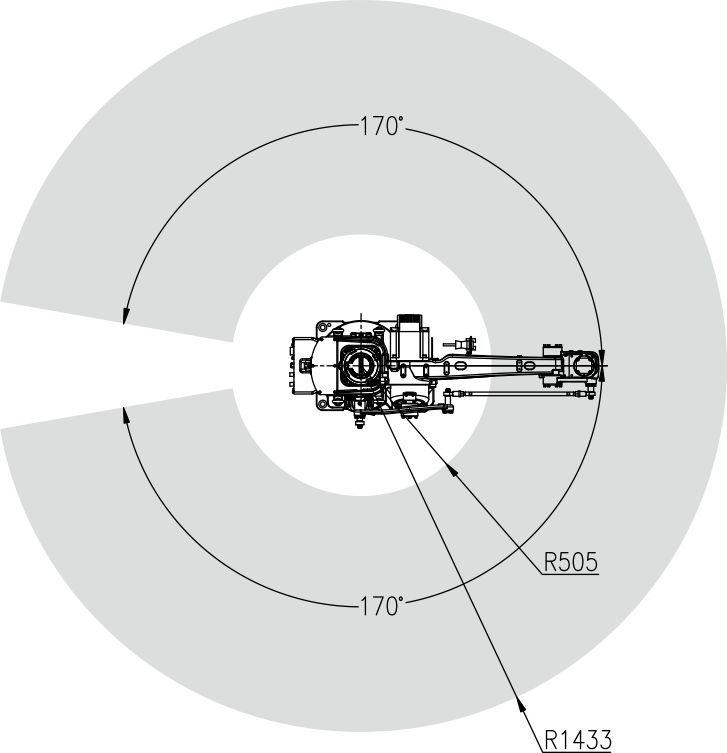

Motion Range
Joint Motion Range
| Joint | Range |
|---|---|
| J1 | ±170° |
| J2 | +90° ~ -40° |
| J3 | +68° ~ -90° |
| J4 | ±360° |
Top Joint Velocities
| Joint | Velocity |
|---|---|
| J1 | 251 |
| J2 | 195 |
| J3 | 195 |
| J4 | 368 |
