Hydraulic Torque Wrench Pump

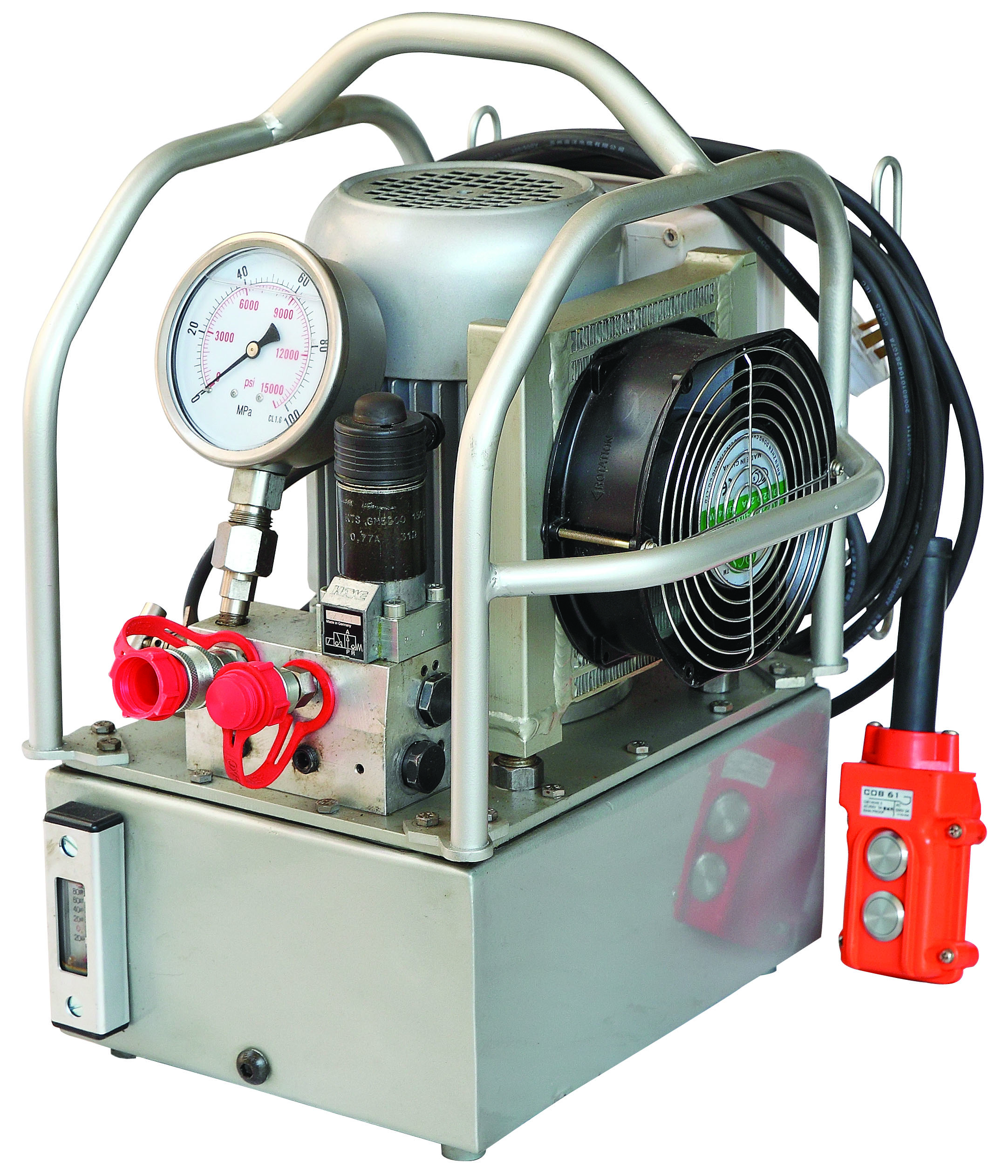

This hydraulic torque wrench pump is a self-contained power source for operating hydraulic torque wrenches and tools. It includes a robust frame, pressure gauge, remote control, quick-connect fittings, cooling fan, and pressure relief valve.
Technical Specifications
Product Overview
High-Efficiency Hydraulic Power Source
This hydraulic torque wrench pump is engineered for industrial applications requiring precision and reliability. Featuring an automatic three-stage pressure and flow switching system, it maximizes operational efficiency for demanding torque tasks. The unit is designed for continuous 24-hour operation thanks to an integrated high-efficiency radiator and robust construction.
Performance & Operation
- Adjustable Pressure Range
- 700 bar
- Maximum Pressure
- 70 MPa
- Duty Cycle
- Continuous (24 hours)
- Simultaneous Wrench Capacity
- 1-2 wrenches (configurable up to 4)
- Key Features
- Automatic 3-stage switchingHigh-precision gaugeIntegrated cooling fanPressure relief valveRemote control pendant
Technical Specifications

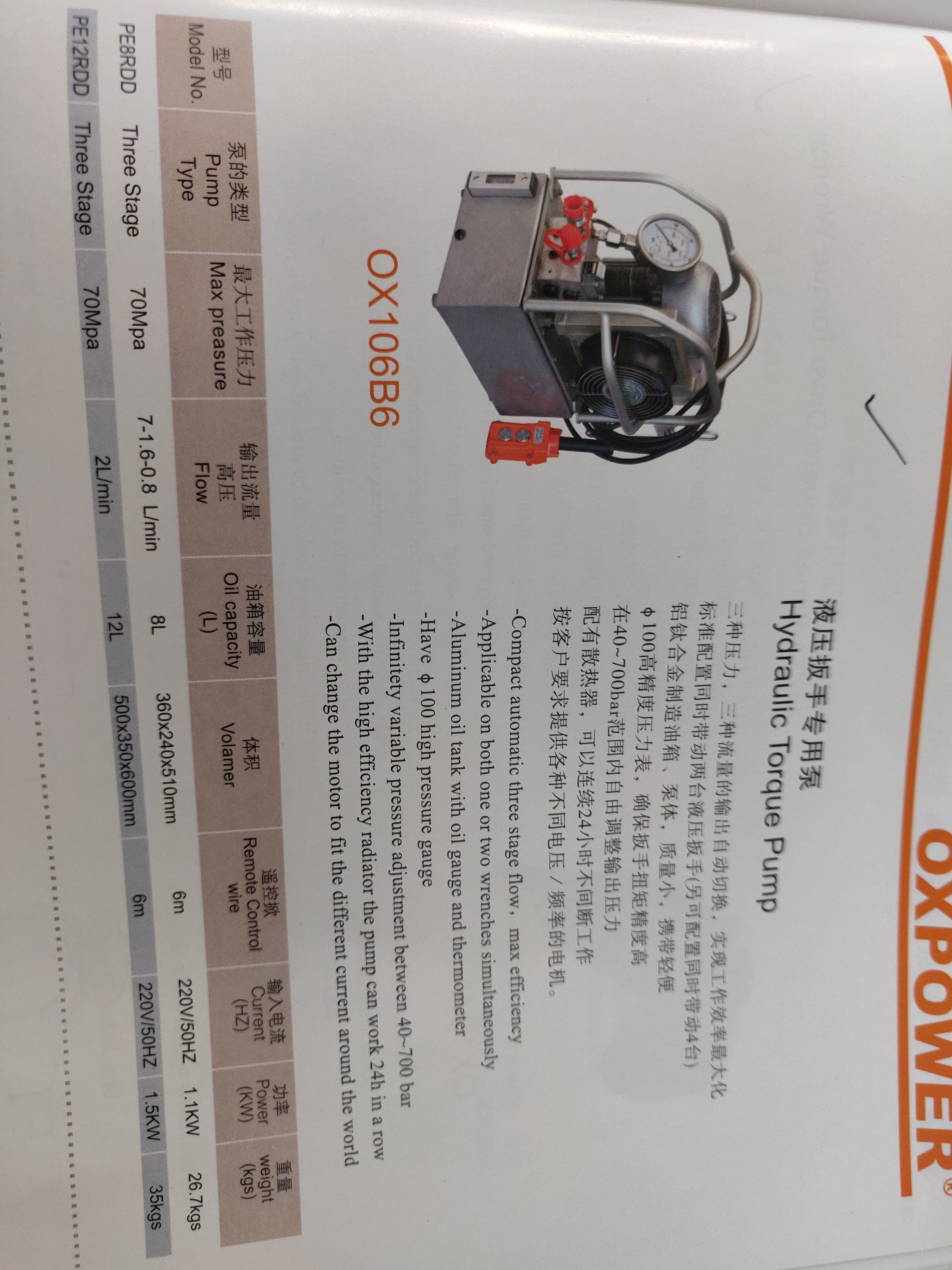

Model Specifications
| Specification | PE8RDD | PE12RDD |
|---|---|---|
| Flow Rate | 7-1.6-0.8 L/min | 2 L/min |
| Oil Capacity | 8 L | 12 L |
| Power | 1.1 kW | 1.5 kW |
| Weight | 26.7 kg | 35 kg |
| Dimensions (mm) | 360x240x510 | 500x350x600 |
- Power Requirements
- 220V/50Hz (Customizable voltage/frequency available)
