Manual Hydraulic Hand Pump
This hand pump provides a cost-effective solution for manually increasing pressure in a hydraulic system when emergency power is needed. It includes a handlebar to close the vent valve before pressure increase.
Technical Specifications
Product Overview
Manual Hydraulic Hand Pump
These hydraulic hand pumps provide a cost-efficient, reliable solution for manually increasing pressure in systems requiring emergency standby power. Designed for industrial durability, they feature hardened and ground pistons along with a 26.5-inch handlebar to reduce operating force. The units are fully field-repairable, allowing for maintenance without removing the pump from the system.
Key Features
Capabilities
- Field-repairable without system removal
- Replaceable pump spool
- Hardened and ground piston
- 26.5-inch handlebar for reduced operating force
Technical Specifications

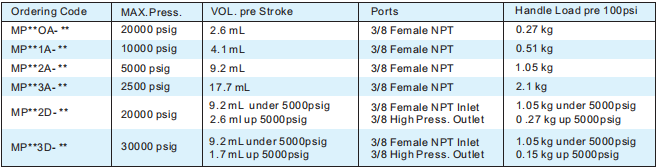

Model Performance Data
| Model | Max Pressure (psig) | Vol/Stroke (mL) | Handle Load @ 100psi (kg) |
|---|---|---|---|
| MP0A | 20,000 | 2.6 | 0.27 |
| MP1A | 10,000 | 4.1 | 0.51 |
| MP2A | 5,000 | 9.2 | 1.05 |
| MP3A | 2,500 | 17.7 | 2.1 |
| MP2D | 20,000 | 9.2 (under 5k) / 2.6 (up 5k) | 1.05 (under 5k) / 0.27 (up 5k) |
| MP3D | 30,000 | 9.2 (under 5k) / 1.7 (up 5k) | 1.05 (under 5k) / 0.15 (up 5k) |
- Available Port Configurations
- 3/8 Female NPT3/8 Female NPT Inlet / 3/8 High Press. Outlet
