Hydraulic Gear Pump
This hydraulic gear pump is a positive displacement pump designed for hydraulic systems. It features robust construction and is suitable for various industrial applications.
Technical Specifications
Product Overview
Hydraulic Gear Pump Series

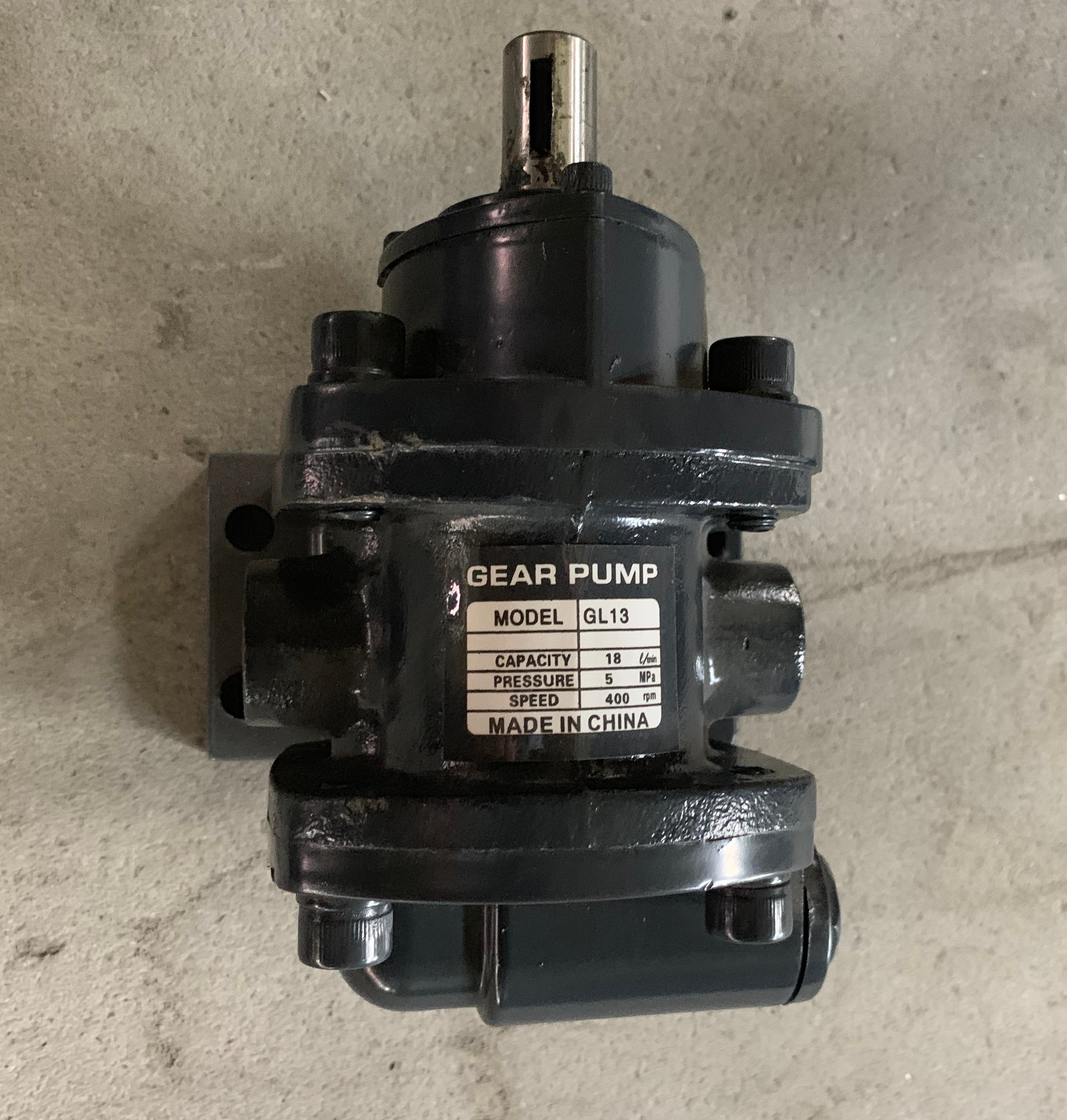

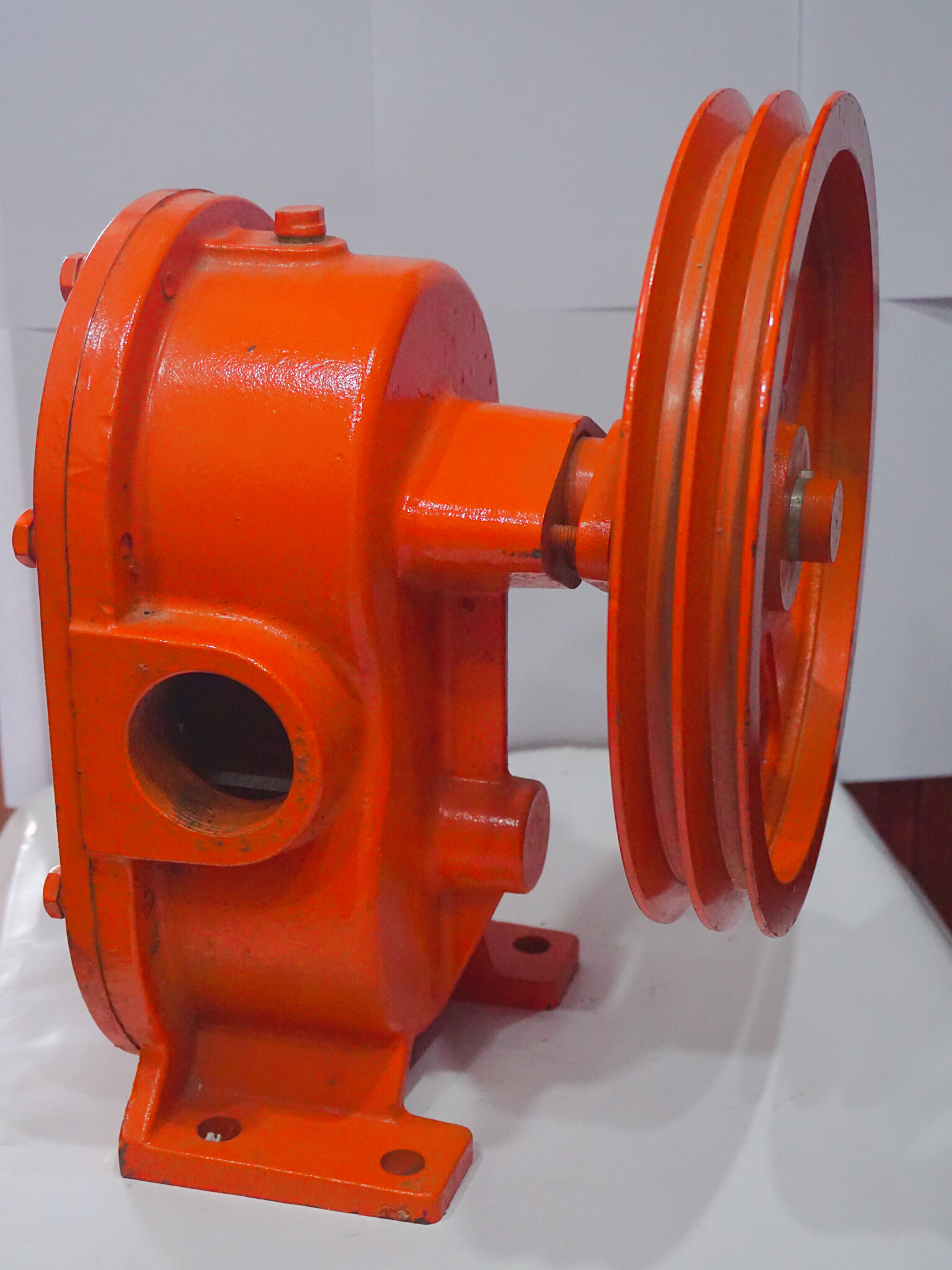

The GC and GL series hydraulic gear pumps are robust, positive displacement units designed for efficient fluid transfer in diverse industrial environments. Engineered for reliability, these pumps are suitable for delivering non-corrosive lubricating oils or equivalent liquids free of solid particles and fibers. Their durable construction and versatile mounting options make them an ideal solution for consistent fluid handling across various industrial applications.
Technical Specifications
GC Series Performance Data
| Model | Inlet/Outlet (inch) | Discharge (L/min) | Power (kW) | Weight (kg) |
|---|---|---|---|---|
| GC-13 | 1/2" | 21 | 0.2 | 4 |
| GC-20 | 3/4" | 37 | 0.4 | 6 |
| GC-25 | 1" | 55 | 0.75 | 11 |
| GC-35 | 1 1/4" | 121 | 1.5 | 22 |
| GC-40 | 1 1/2" | 212 | 2.2 | 23 |
| GC-50 | 2" | 242 | 3 | 45 |
| GC-80 | 3" | 456 | 5.5 | 82 |
GL Series Performance Data (50Hz)
| Model | Inlet/Outlet (inch) | Discharge (L/min) | Power (kW) | Weight (kg) |
|---|---|---|---|---|
| GL-13-5 | 1/2" | 18 | 0.4 | 8 |
| GL-13-10 | 1/2" | 31 | 0.75 | 8.5 |
| GL-20-5 | 3/4" | 48 | 1.5 | 9 |
| GL-20-10 | 3/4" | 73 | 2.2 | 11 |
| GL-25-5 | 1" | 95 | 2.2 | 21 |
| GL-25-10 | 1" | 150 | 3.7 | 23 |
- Suitable Applications
- Non-corrosive lubricating oilIndustrial fluid transferHydraulic systems
Logistics & Services
Included Services
- Quality assurance during production
- Secure packaging for transportation
- On-time delivery management
- Sea freight management to destination port
- After-sales service support
- Packaging
- Packed inside the carton
