Horizontal Machining Center
This horizontal machining center excels in machining complex parts with efficiency and accuracy. It features a rigid structure, advanced control system, and automatic tool changer for optimal productivity and surface finish.
Technical Specifications
Overview
High-Performance Horizontal Machining Center
This horizontal machining center is engineered for precision metal cutting, offering robust performance for complex part manufacturing. It features an automated tool change system and a high-rigidity structure, making it an ideal solution for industries such as aerospace, automotive, and mold making. With advanced control capabilities and high-speed axis movement, this machine ensures optimal productivity and superior surface finishes.
Performance Specifications
Machining Performance
| Parameter | Value |
|---|---|
| Spindle Speed | 100-6000 r/min |
| Spindle Taper | BT40 |
| Rapid Traverse (X/Y/Z) | 60/60/60 m/min |
| Cutting Feed Rate | 2-20000 mm/min |
| Positional Accuracy | 0.008/300 mm |
| Repeatability | ±0.005 mm |
Key Operational Metrics
5.5 KW
Main Spindle Motor
300 kgs
Max Worktable Load
3,800 kg
Net Weight
Dimensions and Capacity
- Worktable Size
- 800mm x 450mm
- X/Y/Z Axis Travel
- 580mm / 350mm / 480mm
- Overall Dimensions
- 2000mm x 2300mm x 2200mm
Technical Details
Axis Feed Motors
- X-Axis: 1.3KW
- Y-Axis: 2.9KW
- Z-Axis: 1.3KW
- Tool Magazine Type
- BT40-16T Disc Type
- Critical Mechanical Components

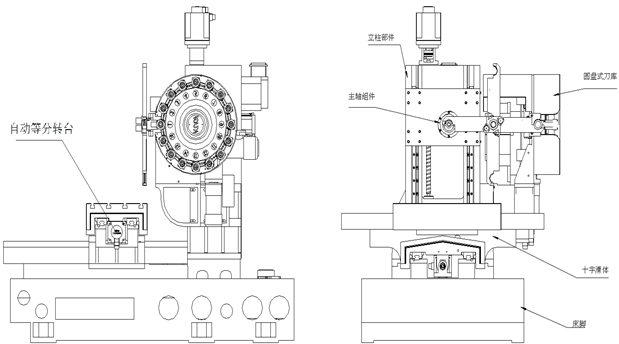

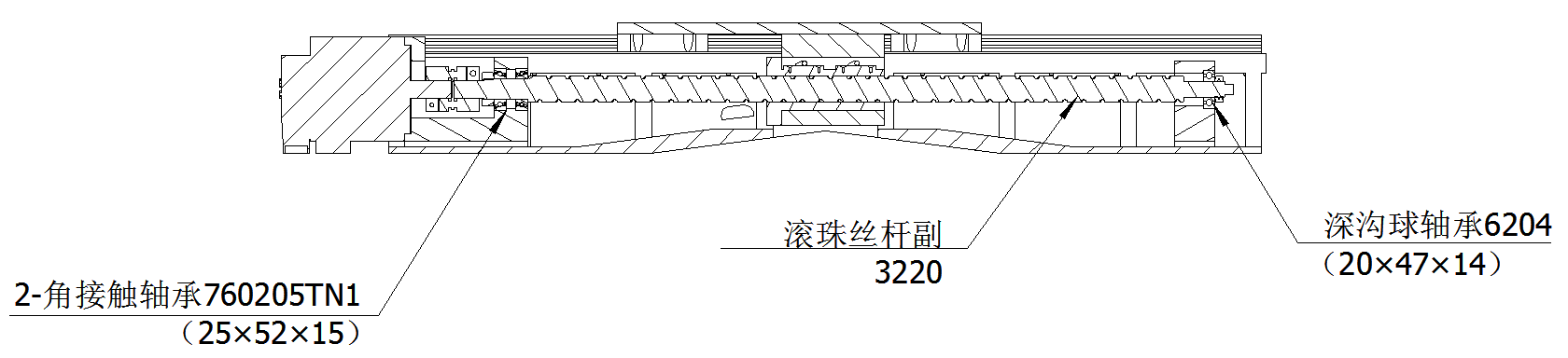

- Ball ScrewAngular Contact BearingsDeep Groove Ball BearingsSynchronous BeltAutomatic Indexing Rotary Table
