High Speed Turbine Door
This high-speed door features a turbine design for rapid opening and closing. It is suitable for industrial applications such as warehouses, manufacturing facilities and cleanrooms.
Technical Specifications
Product Overview

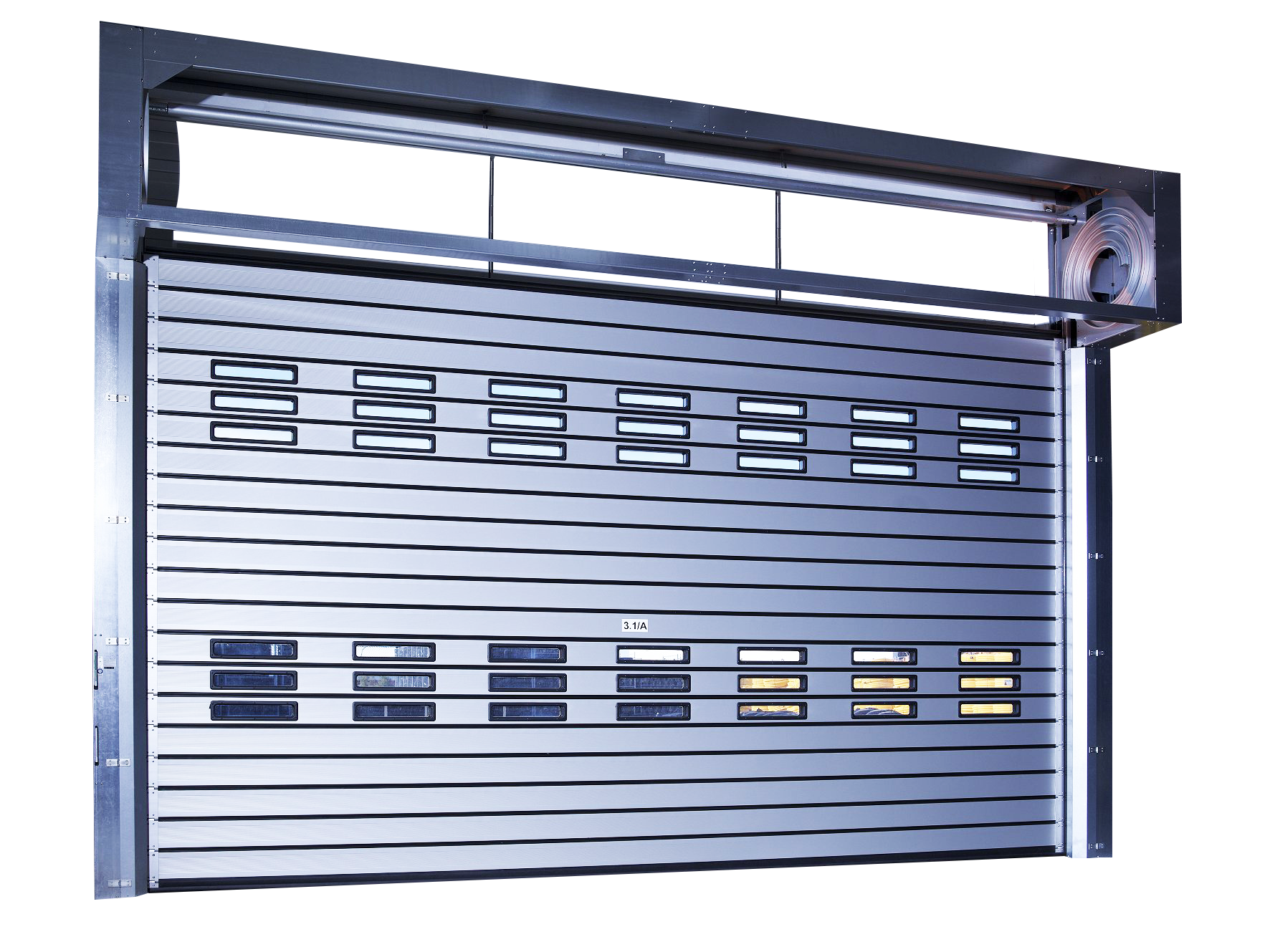

High-Performance Turbine Door
This high-speed turbine door is engineered for demanding industrial and commercial applications, including chemical, pharmaceutical, automotive, and food processing facilities. It features a robust aluminum alloy construction with polyurethane insulation, ensuring both durability and effective environmental separation. With rapid operational speeds and intelligent one-key control systems, this solution optimizes workflow efficiency while maintaining high safety standards for high-traffic environments.
Performance Metrics
- Opening Speed
- 2 m/s
- Wind Resistance
- 3.5 KPA (Wind 12)
Technical Specifications
Door Dimensions
| Dimension | Range |
|---|---|
| Width | 1250-10000 mm |
| Height | 2000-8000 mm |

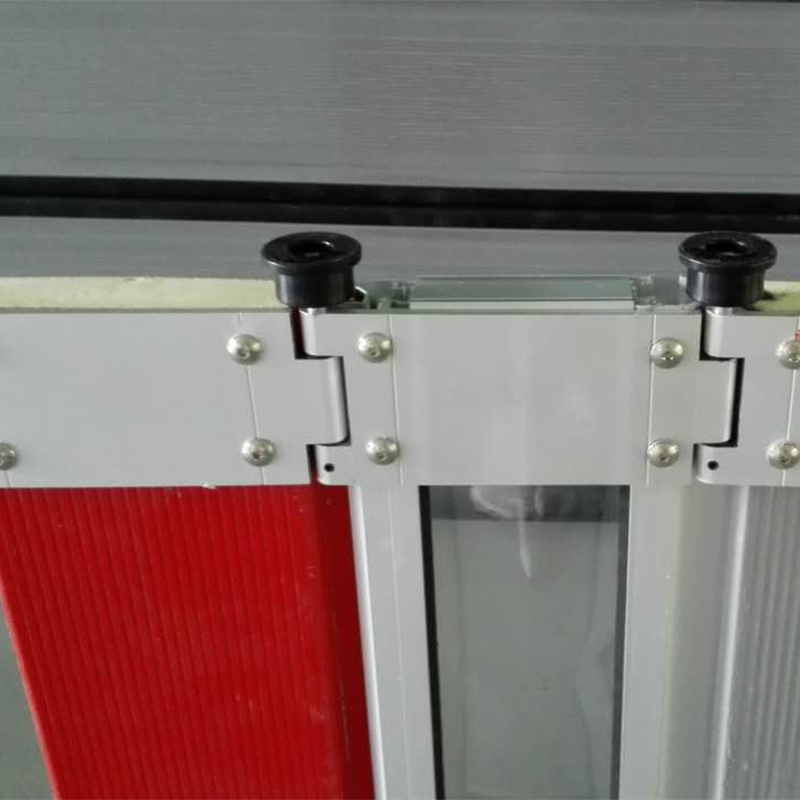

Construction Materials
- 40mm Aluminum door panel
- Polyurethane insulation
- 3mm Galvanized sheet door frame

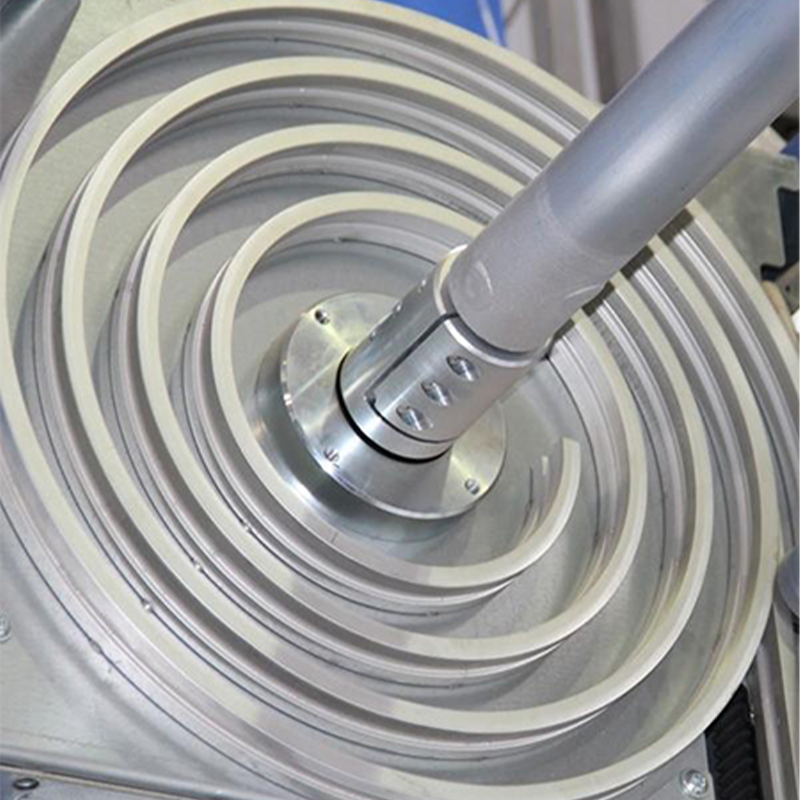

- Double spiral turbo aluminum rails
Features & Control
Safety Features
Infrared Security Electric EyeObstacle DetectionAutomatic Reverse
- Opening Methods
- RadarGeomagnetic SensorBluetoothRemote SensingHand Switch
- Control System
- Servo control system with fire-fighting linkage support
