High Speed PVC Spiral Door
This high-speed PVC spiral door is designed for efficient access control in industrial environments. It allows for rapid opening and closing, ensuring smooth traffic flow and temperature regulation.
Technical Specifications
Product Overview
High Speed PVC Spiral Door for Logistics
Designed specifically for logistics and industrial environments, this high-speed PVC door provides rapid, efficient access for vehicles, forklifts, and personnel. The spiral mechanism ensures smooth, quiet operation while maintaining essential temperature control and hygiene standards. Equipped with advanced safety sensors and reinforcement features, it is a robust solution for warehouses and distribution centers seeking to optimize traffic flow and energy efficiency.
Performance Specs
- Opening Speed
- 1.5 m/s
- Closing Speed
- 1.2 m/s

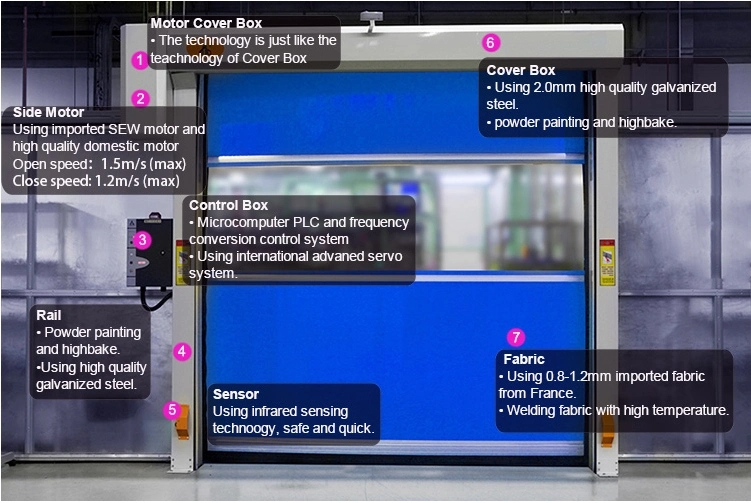

Technical Construction
- Curtain Thickness
- 0.8 mm
- Transparent Section Thickness
- 1.2 mm
- Frame Construction
- 2.0mm high-quality galvanized steel with powder paint and high-bake finish
- Available Colors
- GreyYellowPurpleGreenBlackWhiteBlueSky BlueOrangeRed

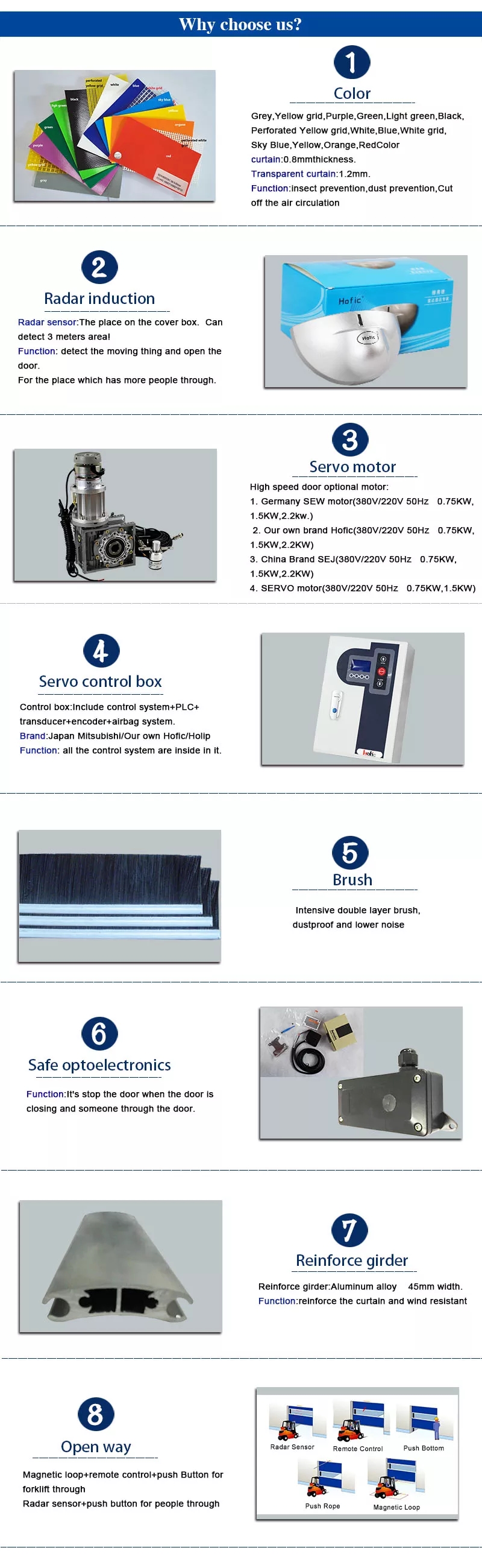

Control & Safety
Operation Methods
- Manual Button
- Remote Control
- Radar Sensor
- Inductive Loop
- Push Button
- Push Rope
Integrated Safety Devices
Photo CellWireless Safety AirbagInfrared SensingSafe OptoelectronicsEmergency Manual Brake
Power Compatibility
- 220V Single Phase
- 380V Three Phase
