High Frequency Pipe Manufacturing Machine
This high-frequency pipe manufacturing machine is designed for manufacturing pipes with precision and efficiency. It features advanced control systems for accurate forming and welding, ensuring high-quality pipe production.
Technical Specifications
Overview
High-Efficiency Pipe Manufacturing Solution

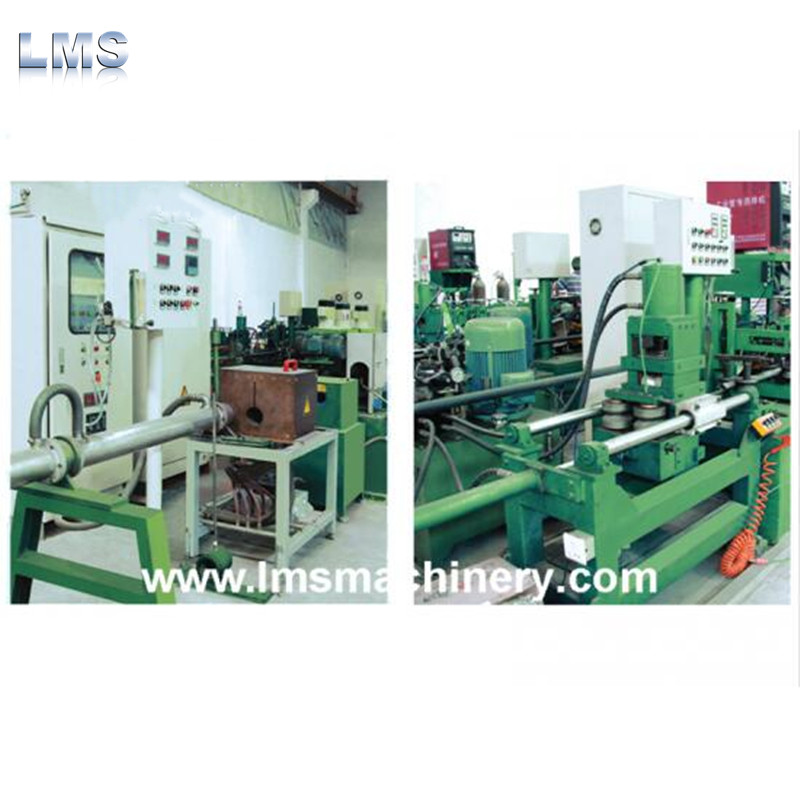

The HG165 High-Frequency Pipe Making Machine is a comprehensive industrial system engineered for continuous and precise pipe production. It integrates key components including a hydraulic decoiler, cage accumulator, and advanced welding systems to ensure seamless operation. With robust roller stations and a CNC flying saw for length control, this machine is designed to meet the rigorous demands of modern pipe manufacturing facilities.
Technical Specifications
Horizontal Roller Stations
7 sets
Quantity
110 mm
Shaft Diameter
Vertical Roller Stations
9 sets
Quantity
70 mm
Shaft Diameter
Material Specifications
| Component | Material |
|---|---|
| Roller Shafts | 40Cr |
| Rollers | 45# steel |
| Drive Gears | 40CrMnTi and 40Cr |
System Components
Key Integrated Systems
- Hydraulic Decoiler
- Front Shear and Welding Machine
- Cage Accumulator
- Drive Gear Box (7 sets)
- Extruding and Scrap Collecting
- Burr-cleaning Device
- Sizing Device
- Straightening Device
- High Frequency (HF) Station
- Main Driving System
- CNC Flying Saw
