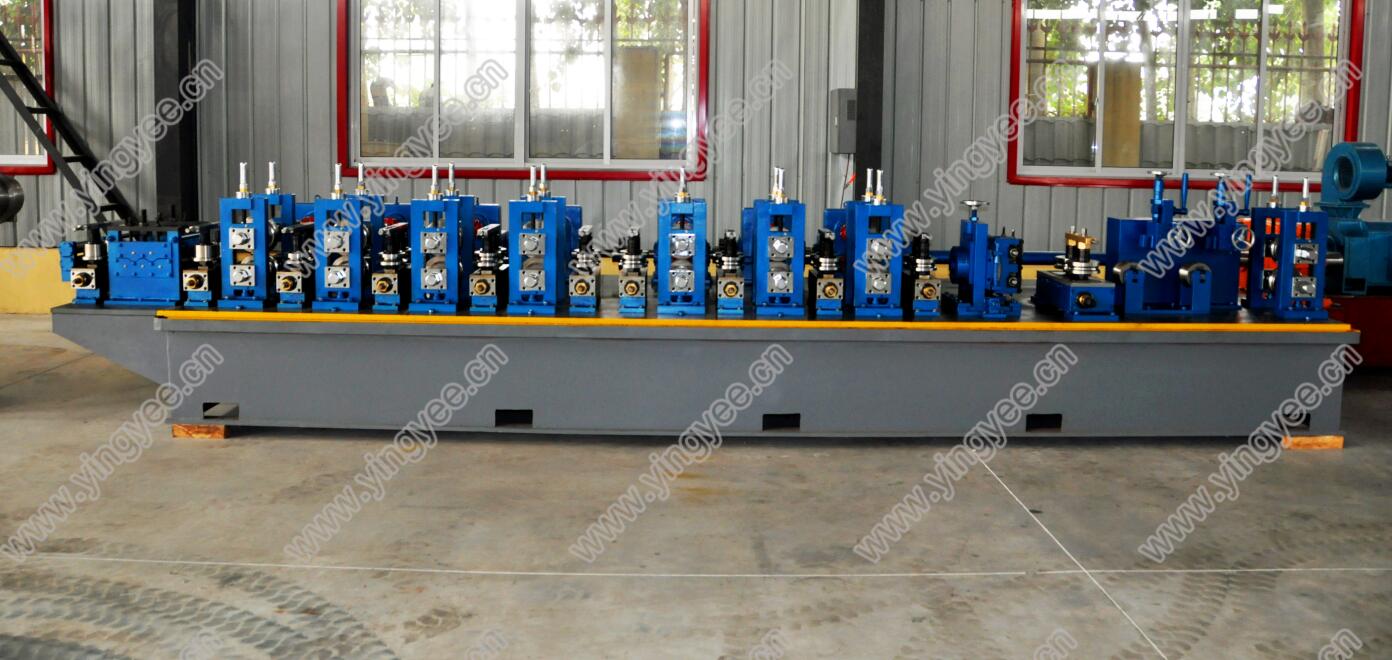

HF Welding Tube Mill Production Line
This tube mill production line utilizes high-frequency welding for efficient tube manufacturing. The system forms, welds, and sizes tubes with precision, ensuring consistent quality and dimensional accuracy.
Technical Specifications
Overview
High-Frequency Welding Tube Mill
This high-frequency welding tube mill production line is a comprehensive industrial solution designed for the continuous manufacturing of round, square, and rectangular tubes. Engineered for precision and versatility, the system integrates advanced forming, welding, and sizing units to ensure strong, consistent weld seams and accurate dimensions. The line is built for high-volume efficiency, offering easy size changeovers and adaptability to various materials like carbon steel, stainless steel, and aluminum.
Performance
Production Speed
70 m/min
Min Speed
80 m/min
Max Speed
Key Components
Line Components

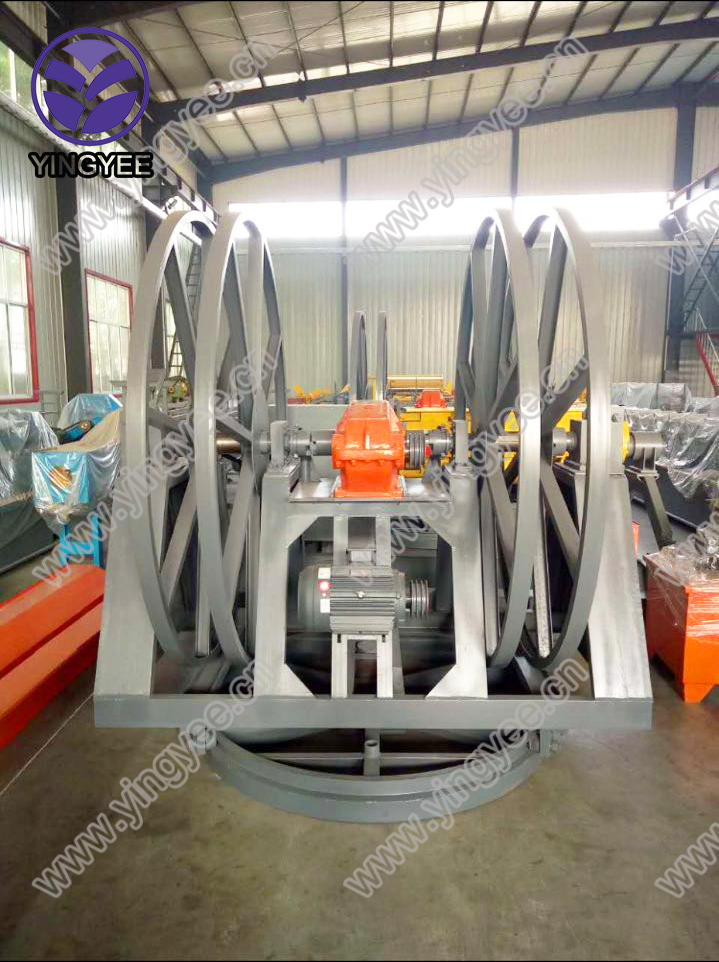

- Decoiler
- Material Accumulator

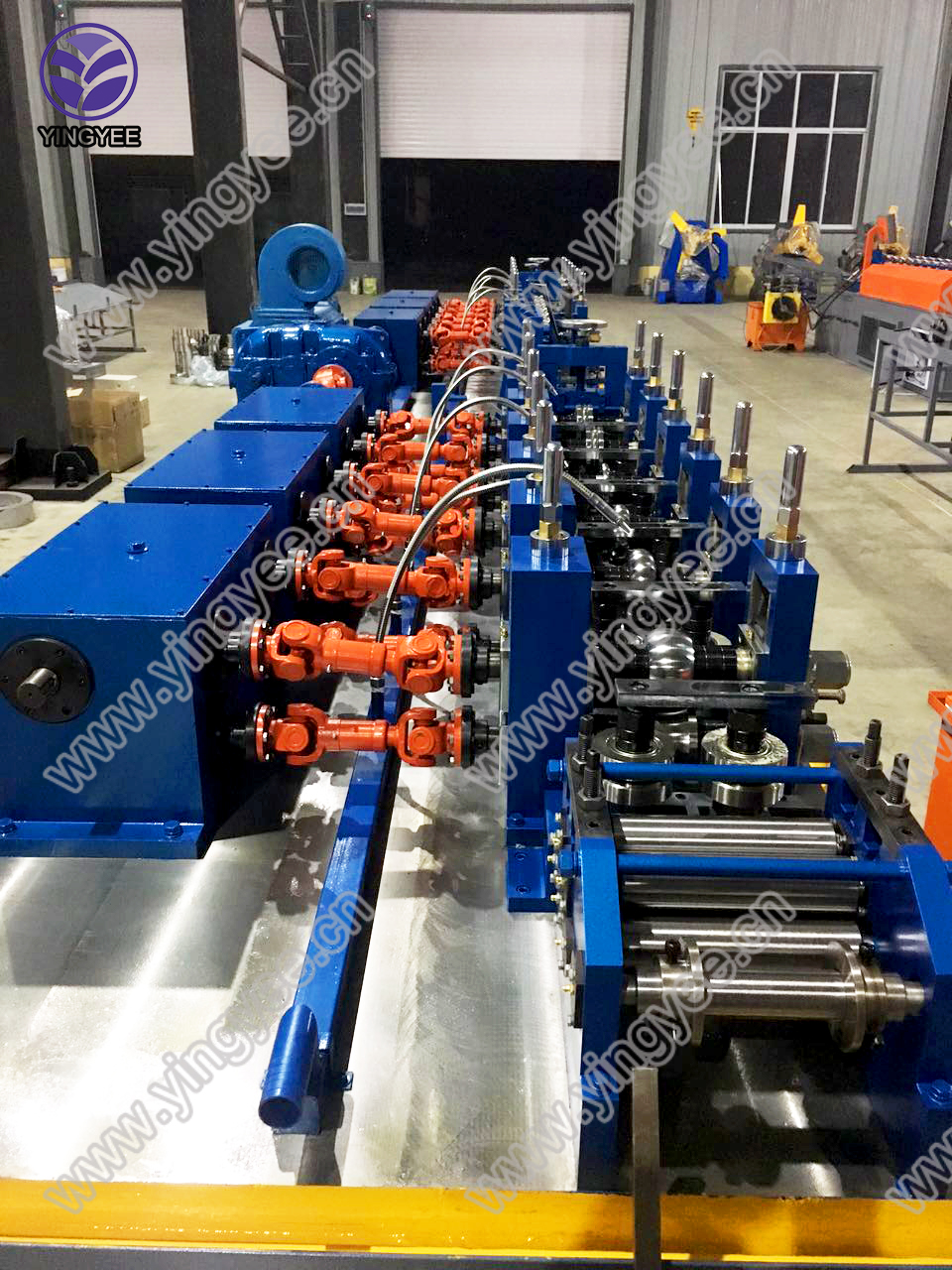

- Forming Unit
- High-Frequency Induction Welder

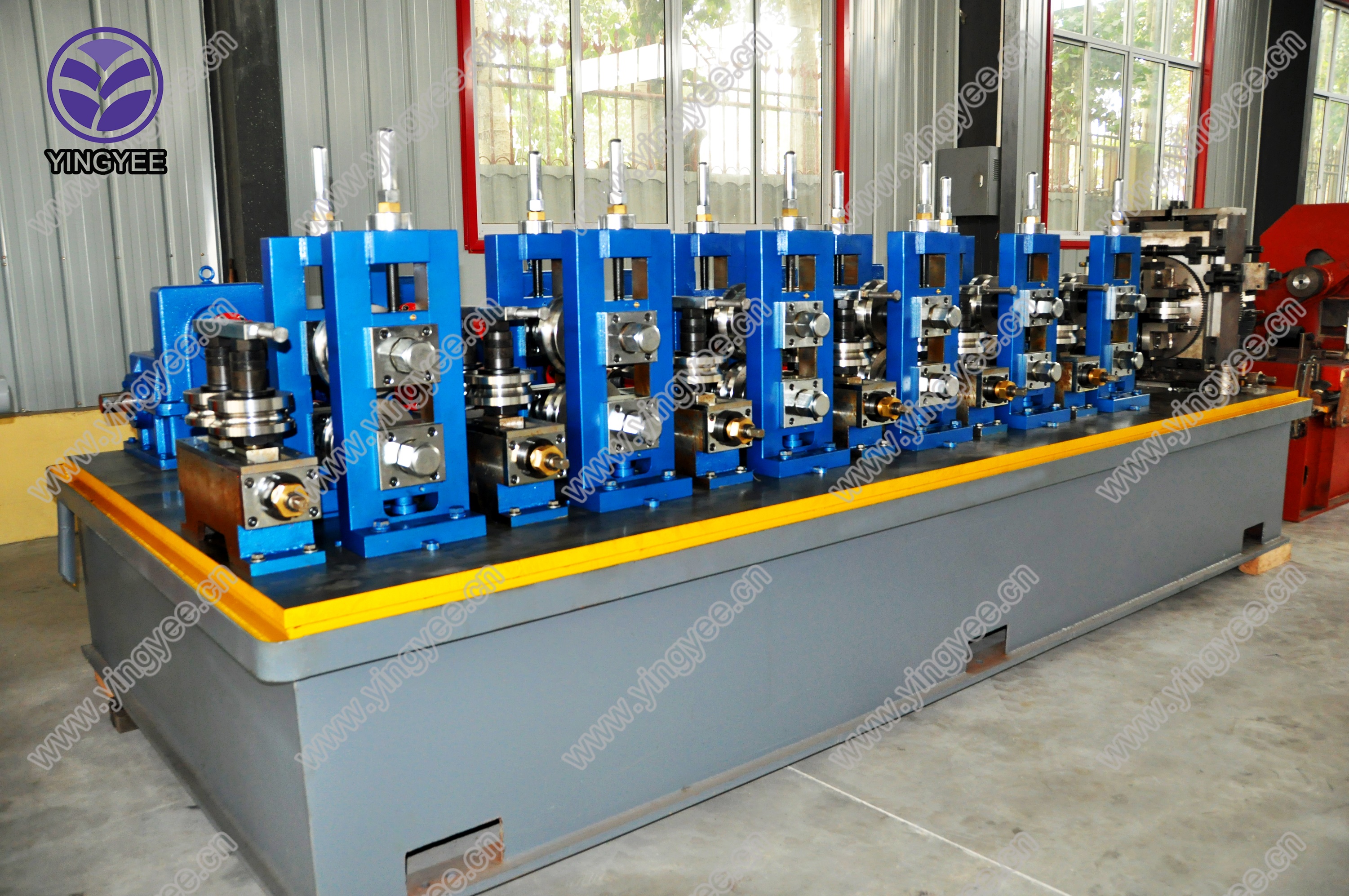

- Squeeze Roller Section
- Cooling Section
- Sizing Mill
- Straightening Unit
- Cut-off Unit
- Stacking System
Features
- Core Capabilities
- HF WeldingAdjustable SizeAutomated ControlContinuous OperationMulti-profile Production
