High Frequency Pipe Making Machine
This high-frequency pipe making machine provides a robust solution for manufacturing high-quality pipes. It integrates advanced forming technology with high-frequency welding to ensure strong and consistent weld seams.
Technical Specifications
Overview
High-Efficiency Pipe Manufacturing Solution

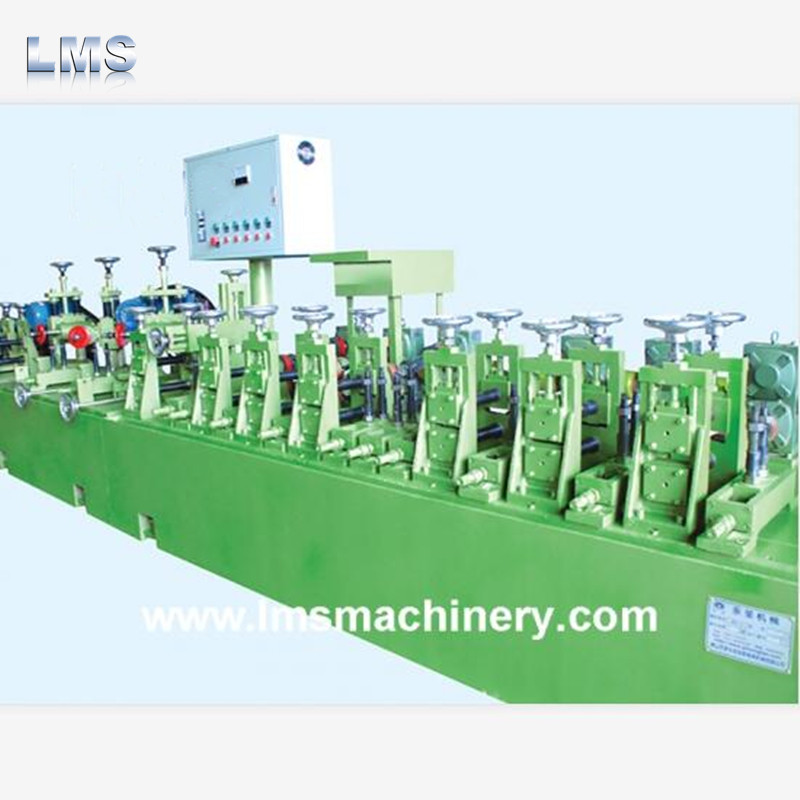

The HG100 High Frequency Pipe Making Machine is engineered for the precise and efficient production of industrial-grade pipes. Featuring a robust modular design, this system integrates advanced forming stations, high-frequency welding technology, and automated control systems to ensure seamless welds and consistent pipe quality. Designed for high-volume manufacturing, it includes a comprehensive suite of processing units ranging from initial forming to final run-out, making it a versatile choice for automotive and construction applications.
Forming Station Details
Forming Station Configuration
| Station Type | Sets | Shaft Diameter (mm) | Material |
|---|---|---|---|
| Horizontal Roller | 7 | 95 | 40Cr Shaft / 45# Steel Roller |
| Vertical Roller | 9 | 55 | 40Cr Shaft / 45# Steel Roller |
Drive System
Drive System Specifications
- 7 Sets Drive Gear Box
- Gear Material: 40CrMnTi and 40Cr
- Shaft Material: 40Cr
- 14 Transmission Shafts
Integrated Systems
- Included Equipment & Devices
- CNC Flying SawHigh-Frequency WeldingBurr-cleaning DeviceSizing DeviceStraightening DeviceWater-Cooling SystemRun-out TableExtruding and Scrap Collecting
