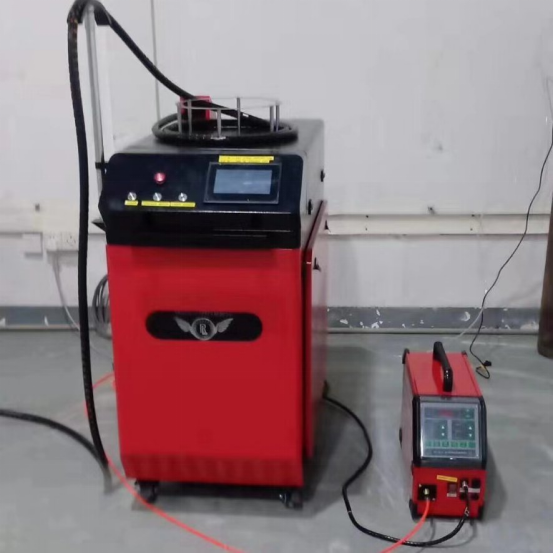

Handheld Laser Welding Machine
This handheld laser welding machine uses optical fiber to deliver the laser to the welding head, enabling versatile welding in various positions. It is designed as a replacement to traditional argon arc and electric welding processes for thin metal sheets.
Technical Specifications
Product Overview
High-Efficiency Handheld Laser Welding
This handheld laser welding machine offers a significant leap in productivity, performing 2-10 times faster than traditional welding methods. Designed for precision and ease of use, it minimizes heat-affected zones to prevent workpiece deformation and blackening while ensuring deep, firm weld penetration. By reducing the need for highly skilled labor, this system helps optimize production costs and efficiency in industrial metal fabrication environments.
Performance Metrics
Speed Advantage
10 x
Max Speed Multiplier
Available Power Options
500W800W1000W1500W
Technical Specifications

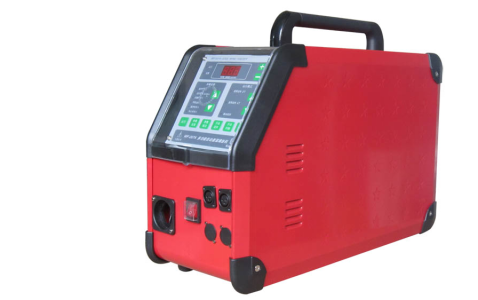

Wire Feeding Compatibility
| Laser Power | Wire Diameter |
|---|---|
| 1000W | 0.8 - 1.0mm |
| 1500W | 0.8 - 1.2mm |
- Fiber Cable Length
- 15 m
Material Compatibility
- Supported Materials
- Stainless SteelGalvanized SheetIron SheetBrassAluminum
- Material Thickness Range
- 0.4mm - 5.0mm
Warranty & Support
Warranty Coverage
- Laser Source: 2 Years
- Whole Machine: 1 Year
- Lifetime Maintenance Support
