Electronic Programmable Padlock
This electronic padlock features a standard smart lock cylinder embedded within its design. It provides high-security access with information task management.
Technical Specifications
Overview
Smart Passive Locking Solution
This electronic programmable padlock combines the physical security of a traditional lock with advanced digital management capabilities. It features a smart lock cylinder that requires no wiring or maintenance, utilizing single-contact power for operation. Designed for high-security environments, it provides hierarchical management, audit trails, and scheduling to ensure full accountability and control over access points.
Technical Specifications
Water Resistance Rating
IP67
- Material
- Stainless Steel
- Communication Security
- AES128 Encryption
- Power Source
- Single Contact Power
- Wiring Requirement
- No

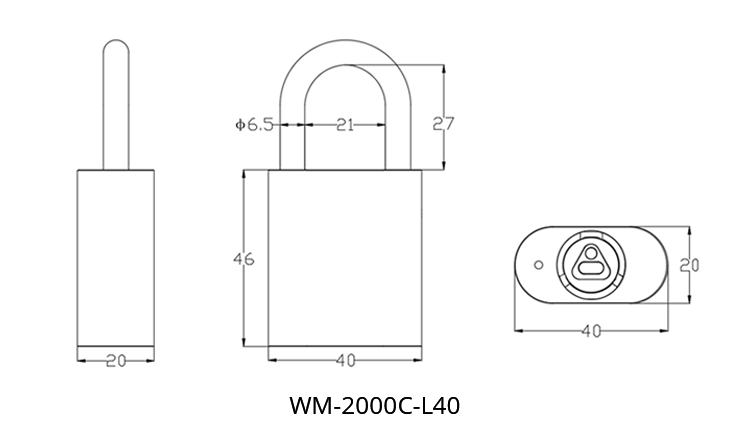

Dimensions
Physical Dimensions
| Feature | Measurement |
|---|---|
| Body Width | 40mm |
| Body Height | 46mm |
| Shackle Diameter | 6.5mm |
| Shackle Internal Width | 21mm |
| Shackle Height | 27mm |

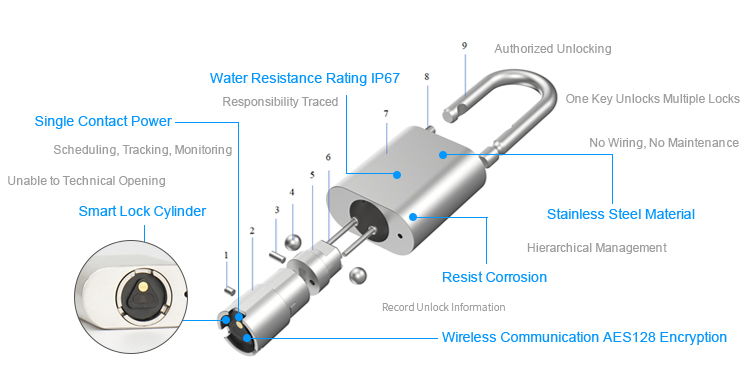

Key Features
Operational Benefits
- Authorized unlocking with scheduling
- One key unlocks multiple locks
- Responsibility tracing and audit logs
- Resistant to technical opening
- Hierarchical management system
Applications
- Typical Applications
- Logistics SupervisionPower CabinetsIndustrial CabinetsCommunication Network CabinetsRailway ContainersAirport LogisticsATM MachinesVending Machines
