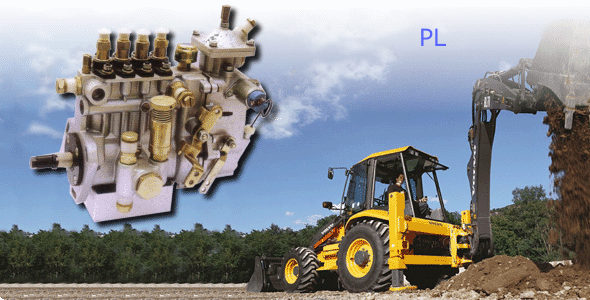

Diesel Engine Fuel Injection Pump
This fuel injection pump is designed for diesel engines, delivering fuel at high pressure to the injectors. With a maximum displacement of 0.9 liters per cylinder and a maximum output power of 25kW per cylinder, it ensures efficient combustion and reduced emissions with Euro 1 compliance.
Technical Specifications
Overview
High-Performance Diesel Fuel Injection
This diesel engine fuel injection pump is engineered for precise fuel metering and robust performance in heavy-duty applications. Designed to support engines with 2, 3, or 4 cylinders, it ensures efficient combustion and optimal power output. With a maximum system pressure of 70 MPa and versatile installation options, it is a reliable component for construction, agricultural, and industrial machinery.
Technical Performance
- Maximum Pump Pressure
- 70 Mpa
- Maximum Flow (Geometry)
- 115 mm3/cycle
- Top Speed
- 2200 rpm
- Max Power per Cylinder
- 22 KW
Engine Compatibility
Cylinder Configuration
- 2
- 3
- 4
Injection Order
| Cylinder Count | Order |
|---|---|
| 2 Cylinder | 1-2 |
| 3 Cylinder | 1-3-2 / 1-2-3 |
| 4 Cylinder | 1-3-4-2 |
Design & Construction
- Piston Diameter
- 8.5 - 9.5 mm
- Cam Profile
- 8 - 9 mm
- Stroke
- 14.5 mm
- Installation
- Flange connection (25mm)
- Rotation Direction
- ClockwiseCounter-clockwise
