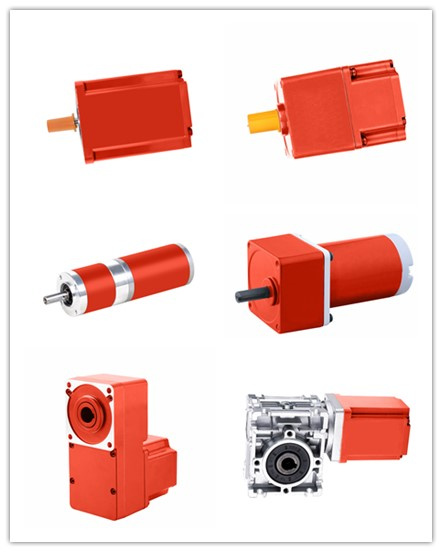

DC Gear Motor with Planetary Gearbox
This DC gear motor is available in brush or brushless configurations. It features a planetary or right-angle gearbox.
Technical Specifications
Product Overview
Versatile DC Gear Motor Solutions
This high-performance DC gear motor series offers a flexible solution for industrial automation, robotics, and precision machinery. Available in both brush and brushless configurations, these motors are paired with robust planetary or right-angle gearboxes to deliver high torque density and efficient power transmission. With a wide range of customizable voltages and output power options, they are designed to meet diverse application requirements while ensuring reliable, low-noise operation.
Technical Performance
Output Power
3 W
Min Power
2,200 W
Max Power
Motor Rated Speed
- 2000 rpm
- 3000 rpm
- Range: 1500 - 4000 rpm
- Available Voltages
- 12V24V36V48V90V110V180V220V310V
- Reduction Ratio
- 1/3 ~ 1/3000 (3 ~ 200K)
Mechanical Specifications
Motor Technology
Brush DCBrushless DC (BLDC)Stepper
Gearbox Types

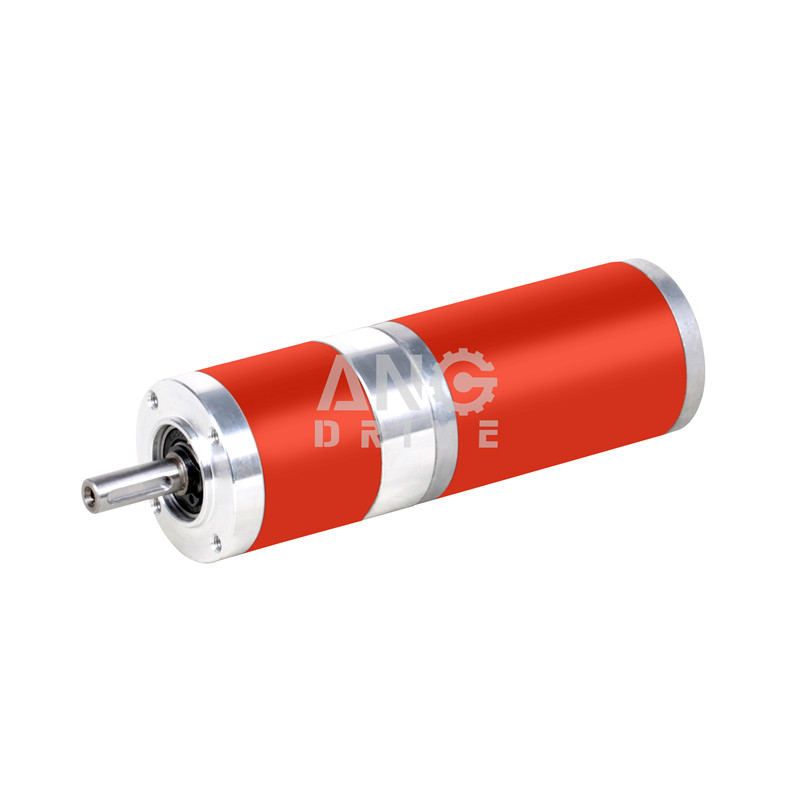

- Planetary center shaft
- Parallel shaft

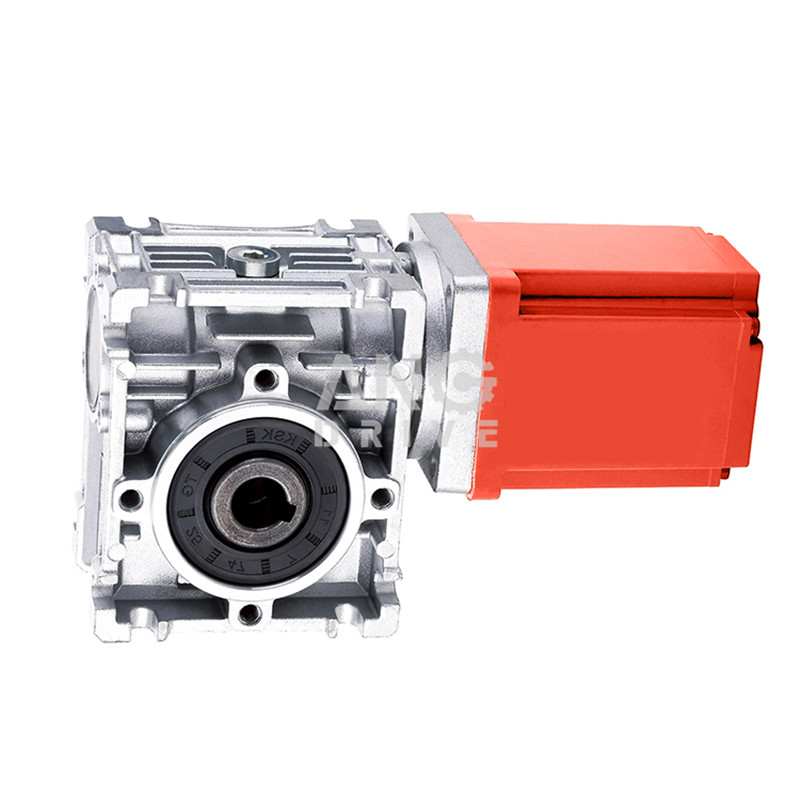

- Right angle hollow/solid worm shaft
- Right angle bevel hollow/solid shaft
- Flat type hollow/solid shaft
- Frame Size
- 16mm to 130mm (Customizable)
- Output Shaft Options
- Round shaftD-cut shaftKey-way shaftHollow shaft
Key Advantages
Design Advantages
- Oil leakage prevention design
- Low noise operation
- Minimal temperature rise
- One-piece forging gear and shaft
- Plasma nitriding heat treatment for heavy loads
- Dual ball bearings on shaft sides for high efficiency
Accessories & Control
- Integrated Accessories
- Internal DriverExternal DriverConnectorBrakeEncoder
