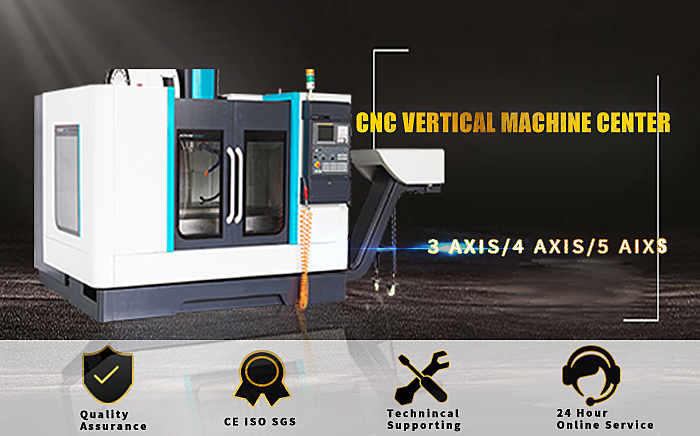

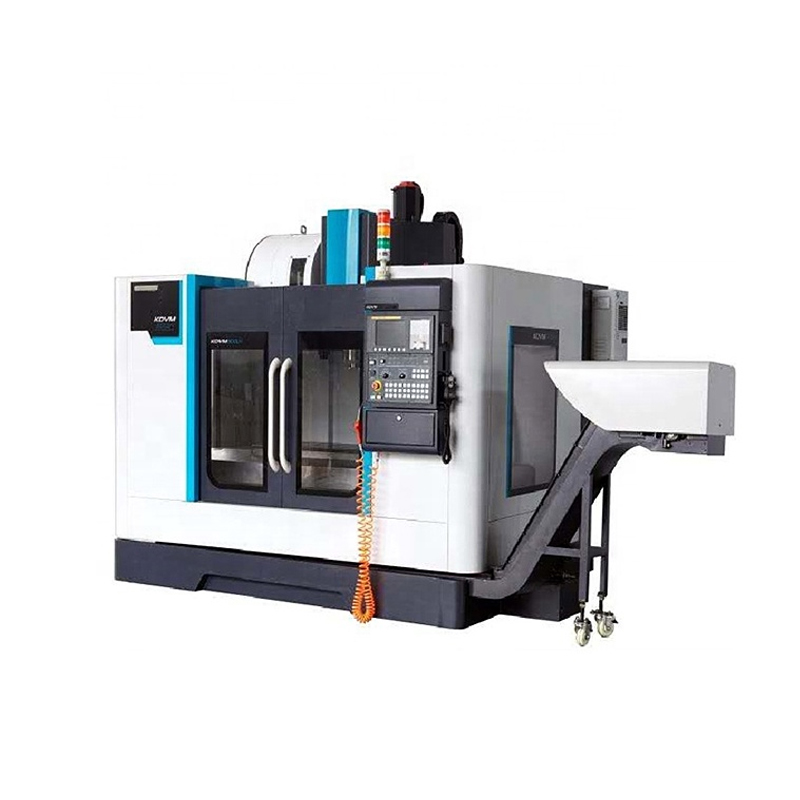

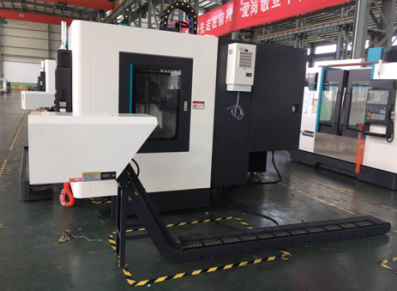

CNC Vertical Milling Machine VMC600
The CNC Vertical Milling Machine VMC600 is engineered for high-accuracy CNC milling operations. It features a rigid structure and advanced CNC control system for precise material removal.
Technical Specifications
Overview
High-Accuracy Vertical Machining Center
The VMC600 is a high-accuracy vertical machining center designed for precision milling operations in industries such as aerospace, automotive, and medical device manufacturing. It features a rigid structure for enhanced stability and reduced vibration, ensuring consistent performance and tight tolerances during high-speed machining. With its user-friendly CNC control system and automated tool changing capabilities, this machine maximizes productivity and simplifies operation for complex parts manufacturing.
Capacity
- X-Axis Travel
- 600 mm
- Y-Axis Travel
- 400 mm
- Z-Axis Travel
- 560 mm
Technical Specifications
- Positioning Accuracy
- 0.006 mm
- Repeatability
- 0.004 mm
- Ball Screw Class
- C3
Drive System
- Driving Motor Power
- 1.8 kW
- Driving Motor Torque
- 11 Nm
Motion
- X and Y Rapid Travel
- 48 m/min
- Z Rapid Travel
- 36 m/min
Features
Certifications
CEISOSGS
- Supported Axes
- 3-Axis4-Axis5-Axis
