CNC Milling Machine
This CNC milling machine is designed for versatile metal cutting operations. It features a robust frame for stability and accuracy, along with an advanced CNC control system for precise movements.
Technical Specifications
Overview
Professional CNC Milling Solution
The XK5030 is a high-precision CNC milling machine engineered for versatile metal cutting operations, including contouring, drilling, and tapping. Featuring a robust, stable frame and an advanced CNC control system, it ensures exceptional accuracy for manufacturing, prototyping, and tooling tasks. Equipped with a high-speed spindle, automatic tool changer, and integrated coolant system, this machine is designed to maximize productivity and maintain thermal efficiency during intensive production runs.
Key Metrics
Performance Highlights
4 KW
Main Motor Power
200 kg
Max Load Capacity
3,000 r/min
Max Spindle Speed

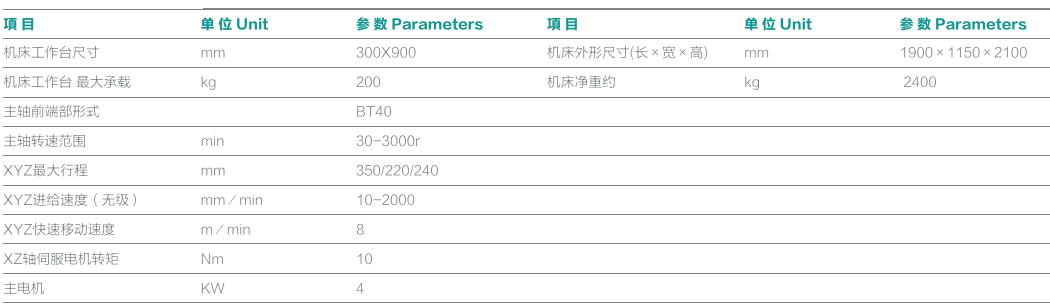

Technical Specifications
Mechanical Dimensions
| Parameter | Value |
|---|---|
| Worktable Size | 300x900 mm |
| Overall Dimensions | 1900x1150x2100 mm |
| Net Weight | 2400 kg |
Operational Performance
- Feed Rate: 10-2000 mm/min
- Rapid Traverse: 8 m/min
- Servo Motor Torque: 10 Nm
- Travel Distances
- 350 (X) / 220 (Y) / 240 (Z) mm
- Spindle Configuration
- BT40 Spindle Nose, 30-3000 r/min speed range
Features
- Product Capabilities
- ContouringDrillingTappingAutomatic Tool ChangerCoolant System
